Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP2709F-2R2MSMD Shielded Power Inductor |
1,547 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 11 A | - | Shielded | 34mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.157" (4.00mm) |
|

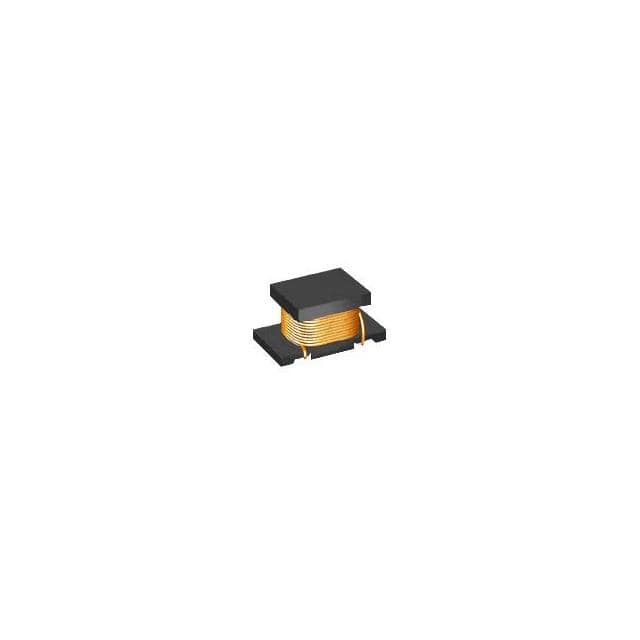

CTLQ1210LF-4R7M4.7UH 650MA SMD WW INDUCTOR |
2,000 |
|
Datasheet |
CTLQ1210LF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 650 mA | - | Unshielded | 150mOhm | - | 43MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CTLQ1210LF-2R2M2.2UH 790MA SMD WW INDUCTOR |
2,000 |
|
Datasheet |
CTLQ1210LF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 790 mA | - | Unshielded | 97mOhm | - | 64MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CTLQ1210LF-100K10UH 450MA SMD WW INDUCTOR |
2,000 |
|
Datasheet |
CTLQ1210LF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 450 mA | - | Unshielded | 300mOhm | - | 26MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
NPMG0430SM6R8TRFFIXED IND SMT 6800 nH 4.6 A 37.4 |
2,000 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.6 A | 4.1A | Shielded | 37.4mOhm Max | - | 14MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
NPMG0430SMR68TRFFIXED IND SMT 680 nH 14.1 A 3.9m |
2,000 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 14.1 A | 14.3A | Shielded | 3.9mOhm Max | - | 50MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
NPMG0430SMR47TRFFIXED IND SMT 470 nH 17 A 3.1mOh |
2,000 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 17 A | 15.6A | Shielded | 3.1mOhm Max | - | 62MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
NPMG0430SM3R3TRFFIXED IND SMT 3300 nH 8 A 17.7mO |
2,000 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 8 A | 5.3A | Shielded | 17.7mOhm Max | - | 22MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
NPMG0430SM4R7TRFFIXED IND SMT 4700 nH 6.1 A 23.4 |
2,000 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 6.1 A | 4.8A | Shielded | 23.4mOhm Max | - | 19MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
NPMG0430SM1R5TRFFIXED IND SMT 1500 nH 9.8 A 8.6m |
1,990 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 9.8 A | 9.6A | Shielded | 8.6mOhm Max | - | 34MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
SIDMP-SP0420-2R2MFIXED IND 2.2UH SMD 4.0A 65MOHM |
8,000 |
|
Datasheet |
* | Nonstandard | Bulk | Active | Molded | - | 2.2 µH | ±20% | 4 A | 5A | Shielded | 65mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
PIM2R2M0402A1MOLDED IND 2.2 UH M 4A 0402 |
3,000 |
|
Datasheet |
PIM-0402A1 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 6A | Shielded | 61mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
CT1008CSF-681JSMD CER CORE WIRE-WOUND INDUCTOR |
100,000 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±5% | - | - | - | 1.5Ohm | - | 375MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-103KSMD CER CORE WIRE-WOUND INDUCTOR |
4,000 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | - | - | - | 12Ohm | - | 25MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-272JSMD CER CORE WIRE-WOUND INDUCTOR |
4,000 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±5% | - | - | - | 3.2Ohm | - | 140MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-222JSMD CER CORE WIRE-WOUND INDUCTOR |
4,000 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±5% | - | - | - | 2.8Ohm | - | 160MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-272GSMD CER CORE WIRE-WOUND INDUCTOR |
2,316 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±2% | - | - | - | 3.2Ohm | - | 140MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-221GSMD CER CORE WIRE-WOUND INDUCTOR |
2,310 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±2% | - | - | - | 840mOhm | - | 700MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-681GSMD CER CORE WIRE-WOUND INDUCTOR |
2,310 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±2% | - | - | - | 1.5Ohm | - | 375MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-391GSMD CER CORE WIRE-WOUND INDUCTOR |
2,297 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 390 nH | ±2% | - | - | - | 1.1Ohm | - | 500MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
