Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTHC1812SF-101KSMD FERRITE CORE WW INDUCTOR |
7,005 |
|
Datasheet |
CTHC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 180 mA | - | Unshielded | 4Ohm Max | 20 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CTHC2220F-102K1MH SMD WW MOLDED INDUCTOR |
4,940 |
|
Datasheet |
CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 85 mA | - | Shielded | 15Ohm Max | 20 @ 252kHz | 1.8MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
|
CTHC2220F-470K47UH SMD WW MOLDED INDUCTOR |
4,015 |
|
Datasheet |
CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 340 mA | - | Shielded | 850mOhm Max | 10 @ 2.52MHz | 8.5MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
CTDSS0805F-100M10UH SMD SHIELDED POWR INDUCTOR |
1,110 |
|
Datasheet |
CTDSS0805F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.5 A | - | Shielded | 100mOhm Max | 40 @ 2.52MHz | 28MHz | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
PIM100M0502A1MOLDED IND 10 UH M 2.3A 0502 |
3,000 |
|
Datasheet |
PIM-0502A1 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 2.8A | Shielded | 199mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.071" (1.80mm) |
|

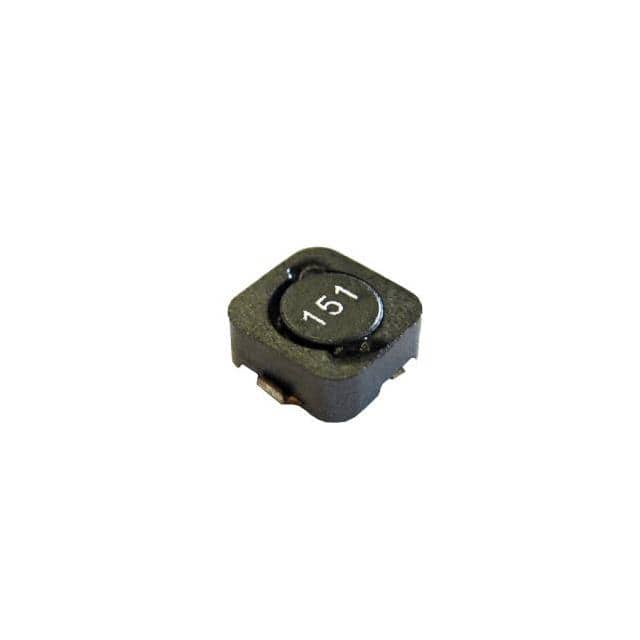

CTCDRH62BF-151M150UH SMD SHIELDED POWR INDUCTOR |
1,990 |
|
Datasheet |
CTCDRH62BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | - | 280mA | Shielded | 2.18Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
CTCDRH62BF-4R0N4.0UH SMD SHIELDED POWR INDUCTOR |
1,225 |
|
Datasheet |
CTCDRH62BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4 µH | ±30% | - | 1.63A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
NPMG0420EMR68TRFFIXED IND SMT 680 nH 14 A 6.4mOh |
5,000 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 14 A | 7.8A | Shielded | 6.4mOhm Max | - | 48MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
NPMG0420EMR47TRFFIXED IND SMT 470 nH 16 A 4.8mOh |
2,500 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 16 A | 8.5A | Shielded | 4.8mOhm Max | - | 58MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
NPMG0420EM1R2TRFFIXED IND SMT 1200 nH 10.5 A 9.9 |
2,500 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 10.5 A | 5.4A | Shielded | 9.9mOhm Max | - | 35MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
NPMG0420EM1R0TRFFIXED IND SMT 1000 nH 12 A 8.4mO |
2,500 |
|
Datasheet |
NPMG | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 12 A | 6.5A | Shielded | 8.4mOhm Max | - | 38MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
NPMG0806H12M1R0TRFFIXED IND SMT 1000 nH 3.9 A 38mO |
2,000 |
|
Datasheet |
NPMG | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.9 A | 4A | Shielded | 38mOhm Max | - | 60MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
ME3220-183KLCFIXED IND 18UH 700MA 696MOHM SM |
14,710 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 18 µH | ±10% | 700 mA | 800mA | Unshielded | 696mOhm Max | - | 31.7MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
|
ME3220-123KLCFIXED IND 12UH 840MA 470MOHM SM |
5,541 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 12 µH | ±10% | 840 mA | 980mA | Unshielded | 470mOhm Max | - | 37.5MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
|
ME3220-683KLCFIXED IND 68UH 380MA 2.3OHM SM |
3,344 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 380 mA | 410mA | Unshielded | 2.3Ohm Max | - | 16.3MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
|
ME3220-393KLCFIXED IND 39UH 470MA 1.38OHM SM |
3,162 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 39 µH | ±10% | 470 mA | 540mA | Unshielded | 1.38Ohm Max | - | 22.6MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
|
ME3220-563KLCFIXED IND 56UH 430MA 2.1OHM SM |
2,520 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 56 µH | ±10% | 430 mA | 450mA | Unshielded | 2.1Ohm Max | - | 20.3MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
|
ME3220-822MLCFIXED IND 8.2UH 1A 290MOHM SM |
2,230 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8.2 µH | ±20% | 1 A | 1.1A | Unshielded | 290mOhm Max | - | 45.2MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
|
ME3220-152MLCFIXED IND 1.5UH 2.2A 68MOHM SM |
1,650 |
|
Datasheet |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 2.2 A | 2.7A | Unshielded | 68mOhm Max | - | 138MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
MS13604R7MS001INDUCTANCE 4.7 H TOL 20% |
7,000 |
|
Datasheet |
MS | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 13 A | 18A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.537" L x 0.496" W (13.65mm x 12.60mm) | 0.236" (6.00mm) |
