Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
67126980FIXED IND 47UH 3A 25 MOHM SMD |
235 |
|
Datasheet |
- | Nonstandard | Bulk | Discontinued at Digi-Key | - | - | 47 µH | - | 3 A | 3A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 1.125" L x 0.740" W (28.58mm x 18.80mm) | 0.450" (11.43mm) |
|
SPD42R-472MFIXED IND 4.7UH 900MA 45MOHM SMD |
220 |
|
Datasheet |
SPD42R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | 900mA | Shielded | 45mOhm Max | - | 55MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.115" (2.92mm) |
|
SHBC13-1R2A0081VCMC 81UH 6A 2LN TH |
1,421 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 81 µH | ±20% | 6 A | - | Unshielded | 24.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.181" Dia (30.00mm) | 1.181" (30.00mm) |
|
SH150S-1.00-54FIXED IND 54UH 1A 200 MOHM SMD |
270 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 54 µH | ±20% | 1 A | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
PM5433.222NLTFIXED IND 2.2UH 37A 2.48MOHM SMD |
202 |
|
Datasheet |
PM5433.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 37 A | - | Shielded | 2.48mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.315" (8.00mm) |
|
|
PM5433.223NLTFIXED IND 22UH 12A 23.2MOHM SMD |
183 |
|
Datasheet |
PM5433.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 12 A | - | Shielded | 23.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.315" (8.00mm) |
|
|
PM5433.153NLTFIXED IND 15UH 13A 15 MOHM SMD |
182 |
|
Datasheet |
PM5433.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 13 A | - | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.315" (8.00mm) |
|
ASPIAIG-Q1010-100M-TFIXED IND 10UH 15.5A 13.75 MOHM |
217 |
|
Datasheet |
ASPIAIG-Q1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 15.5 A | 14.6A | Shielded | 13.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
CLH1110R1-3-R050-RFIXED IND 300NH 0.00023OHM SMD |
3,799 |
|
Datasheet |
CLH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±20% | - | 25A | - | 0.23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 3 Phase | Surface Mount | - | 0.886" L x 0.433" W (22.50mm x 11.00mm) | 0.394" (10.00mm) |
|
ATCA-07-101M-HFIXED IND 100UH 5A 36 MOHM TH |
1,735 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 100 µH | ±20% | 5 A | - | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" Dia (36.00mm) | 0.768" (19.50mm) |
|
ATCA-07-101M-VFIXED IND 100UH 5A 36 MOHM TH |
4,278 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 100 µH | ±20% | 5 A | - | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" L x 0.768" W (36.00mm x 19.50mm) | - |
|
S1812R-153KFIXED IND 15UH 301MA 2.2 OHM SMD |
304 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 301 mA | - | Shielded | 2.2Ohm Max | 50 @ 2.5MHz | 18MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPD73R-183MFIXED IND 18UH 1.8A 140 MOHM SMD |
995 |
|
Datasheet |
SPD73R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.8 A | 1.8A | Shielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
AFA41405Q-100L100.0NH, 15%, 0.23MOHM, 100.0A M |
200 |
|
Datasheet |
AFA41405Q | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 85 A | 100A | - | 230mOhm Max | - | - | AEC-Q200 | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.402" L x 0.189" W (10.20mm x 4.80mm) | 0.394" (10.00mm) |
|
IHSM4825ER3R3LFIXED IND 3.3UH 4.6A 38 MOHM SMD |
1,480 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±15% | 4.6 A | 2.4A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM5832ER470LFIXED IND 47UH 1.77A 215MOHM SMD |
480 |
|
Datasheet |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 1.77 A | 930mA | Unshielded | 215mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
SP1812R-123KFIXED IND 12UH 767MA 340MOHM SMD |
988 |
|
Datasheet |
SP1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±10% | 767 mA | 602mA | Shielded | 340mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CSCF2014-100MCSMD HIGH CURRENT POWER INDUCTOR |
794 |
|
Datasheet |
CSCF2014 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 16 A | 23A | Shielded | 7.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|

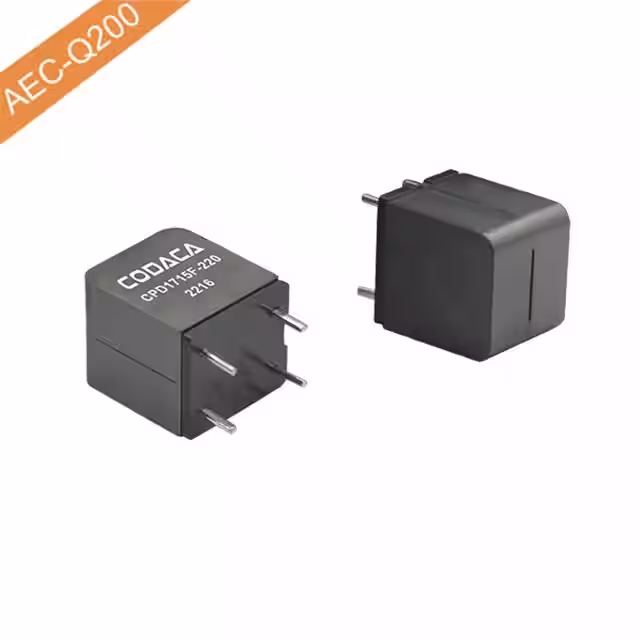

CPD1715F-220MCLASS D INDUCTOR FOR DIGITAL AMP |
724 |
|
Datasheet |
CPD1715F | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 17 A | 14.2A | Shielded | 8.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
|
CPD1715F-100MCLASS D INDUCTOR FOR DIGITAL AMP |
517 |
|
Datasheet |
CPD1715F | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 17 A | 29A | Shielded | 8.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
