Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

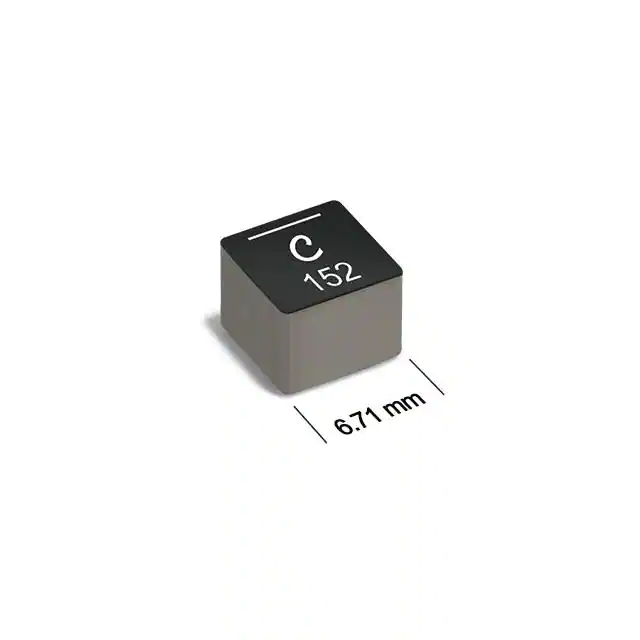

XGL6060-182MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,516 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.8 µH | ±20% | 19.7 A | 16.9A | Shielded | 4.3mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
XEL6060-123MECFIXED IND 12UH 7.4A 40.33MOHM SM |
1,486 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 12 µH | ±20% | 7.4 A | 5.8A | Shielded | 40.33mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XEL6060-272MECFIXED IND 2.7UH 17A 7.63MOHM SM |
1,458 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.7 µH | ±20% | 17 A | 13.8A | Shielded | 7.63mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XGL6060-473MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,398 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 47 µH | ±20% | 3.7 A | 3.2A | Shielded | 107mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XGL6060-183MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,310 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 18 µH | ±20% | 4.7 A | 5.5A | Shielded | 37.3mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XEL6060-152MECFIXED IND 1.5UH 21.6A 4.71MOHM |
1,288 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 21.6 A | 19A | Shielded | 4.71mOhm Max | - | 41MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XGL6060-122MECPOWER INDUCTOR, SHIELDED, COMPOS |
982 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.2 µH | ±20% | 21.5 A | 20.5A | Shielded | 3.4mOhm Max | - | 41MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XGL6060-822MECPOWER INDUCTOR, SHIELDED, COMPOS |
857 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 8.2 µH | ±20% | 7.4 A | 8.1A | Shielded | 16.8mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XGL6060-682MECPOWER INDUCTOR, SHIELDED, COMPOS |
850 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 11.5 A | 8.9A | Shielded | 14mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XEL6060-102MECFIXED IND 1UH 23.2A 4.07MOHM SM |
807 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 23.2 A | 20A | Shielded | 4.07mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XEL6060-682MECFIXED IND 6.8UH 9.8A 22.9MOHM SM |
771 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 9.8 A | 7.9A | Shielded | 22.9mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XGL6060-123MECPOWER INDUCTOR, SHIELDED, COMPOS |
731 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 12 µH | ±20% | 6.1 A | 6.7A | Shielded | 24.2mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XEL6060-821MECFIXED IND 820NH 25.7A 3.33MOHM |
719 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 820 nH | ±20% | 25.7 A | 20A | Shielded | 3.33mOhm Max | - | 52MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XGL6060-562MECPOWER INDUCTOR, SHIELDED, COMPOS |
535 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 5.6 µH | ±20% | 9.1 A | 9.6A | Shielded | 11.7mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XGL6060-471MECPOWER INDUCTOR, SHIELDED, COMPOS |
427 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 470 nH | ±20% | 26 A | 29.5A | Shielded | 1.8mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XEL6060-561MECFIXED IND 560NH 27.7A 2.9MOHM SM |
317 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 27.7 A | 23A | Shielded | 2.9mOhm Max | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XGL6060-103MECPOWER INDUCTOR, SHIELDED, COMPOS |
110 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 10 µH | ±20% | 9.1 A | 7.3A | Shielded | 20.4mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
HC8-3R5-RFIXED IND 3.5UH 8.5A 16.5MOHM SM |
2,275 |
|
Datasheet |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.5 µH | ±20% | 8.5 A | 15.3A | Unshielded | 16.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
SLA36385A-470MPOWER BEAD 470NH 0.125MOHM 16A |
200 |
|
Datasheet |
SLA36385A | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±15% | 63 A | 16A | - | 0.125mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.354" L x 0.197" W (9.00mm x 5.00mm) | 0.374" (9.50mm) |
|
|
CSBX1275-220MSMD HIGH CURRENT POWER INDUCTOR |
947 |
|
Datasheet |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 12A | Shielded | 17.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
