Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFL2006-563MECFIXED IND 56UH 195MA 7.32OHM SM |
2,454 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 56 µH | ±20% | 195 mA | 85mA | Shielded | 7.32Ohm Max | - | 16.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
|
XFL2006-682MECFIXED IND 6.8UH 520MA 1.02OHM SM |
2,261 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 520 mA | 260mA | Shielded | 1.02Ohm Max | - | 57MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
CTDT1608CF-10310UH SMD SHIELDED POWR INDUCTOR |
2,248 |
|
Datasheet |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 700 mA | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDT1608CF-334330UH SMD SHIELDED POWR INDUCTOR |
2,235 |
|
Datasheet |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 160 mA | - | Shielded | 2.9Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
XFL2006-153MECFIXED IND 15UH 350MA 2.22OHM SM |
2,233 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 350 mA | 190mA | Shielded | 2.22Ohm Max | - | 37MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
|
XFL2006-473MECFIXED IND 47UH 205MA 6.16OHM SM |
2,089 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 47 µH | ±20% | 205 mA | 90mA | Shielded | 6.16Ohm Max | - | 19.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
|
CTDT1608CF-154150UH SMD SHIELDED POWR INDUCTOR |
1,497 |
|
Datasheet |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 200 mA | - | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDT1608CF-224220UH SMD SHIELDED POWR INDUCTOR |
1,470 |
|
Datasheet |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 170 mA | - | Shielded | 2.3Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
XFL2006-223MECFIXED IND 22UH 305MA 3.06OHM SM |
861 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 22 µH | ±20% | 305 mA | 150mA | Shielded | 3.06Ohm Max | - | 30.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
.jpg)
|
AIRD-06-180KFIXED IND 18UH 7.2A 18 MOHM TH |
2,918 |
|
Datasheet |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 7.2 A | 22A | Unshielded | 18mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-06-100KFIXED IND 10UH 11.4A 9 MOHM TH |
2,246 |
|
Datasheet |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 11.4 A | 30A | Unshielded | 9mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-06-120KFIXED IND 12UH 11.4A 9 MOHM TH |
1,476 |
|
Datasheet |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 11.4 A | 27A | Unshielded | 9mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
CTDT1608CF-33333UH SMD SHIELDED POWR INDUCTOR |
560 |
|
Datasheet |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 450 mA | - | Shielded | 280mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
SBCP-14HY2R2BFIXED IND 2.2UH 4.35A 20 MOHM TH |
3,641 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.35 A | 16.82A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SBCP-14HY1R2BFIXED IND 1.2UH 5.2A 20 MOHM TH |
4,781 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 5.2 A | 24.3A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SBCP-14HY680BFIXED IND 68UH 1.7A 110 MOHM TH |
3,982 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.7 A | 3.76A | Unshielded | 110mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
FP1007R2-R14-RFIXED IND 140NH 51A 0.48MOHM SMD |
4,566 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 140 nH | ±10% | 51 A | 72A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.256" (6.50mm) |
|
SL1616A-R06LHFFIXED IND 65NH 19A 0.32MOHM SMD |
2,750 |
|
Datasheet |
SL1616 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 65 nH | ±15% | 19 A | 26A | Shielded | 0.32mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" (4.00mm) |
|
|
74454247FIXED IND 470UH 300MA 1.6OHM SMD |
500 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 470 µH | ±10% | 300 mA | 500mA | Shielded | 1.6Ohm Max | - | 3.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

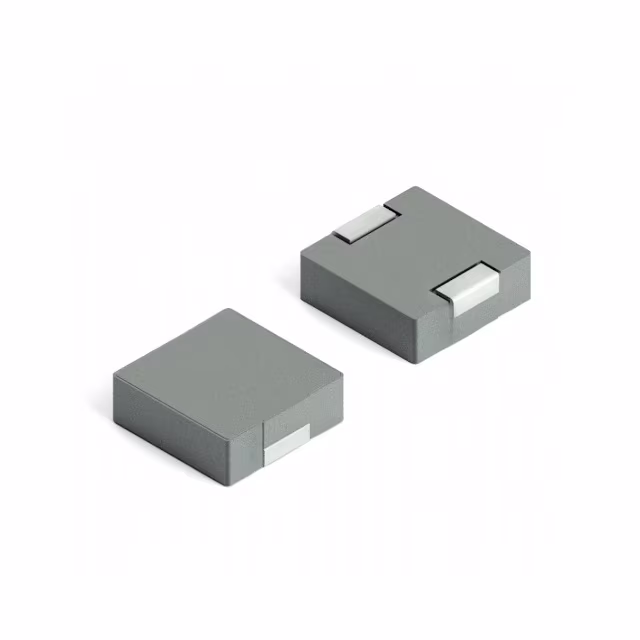

XFHCL4-8R2MFIXED IND 8.2UH 9A 22.5 MOHM SMD |
250 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 9 A | 18A | Shielded | 22.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
