Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDO3316PF-224220UH SMD UNSHLD POWER INDUCTOR |
1,040 |
|
Datasheet |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 800 mA | 800mA | Unshielded | 600mOhm | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-68368UH SMD UNSHLD POWER INDUCTOR |
1,015 |
|
Datasheet |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.5 A | 1.4A | Unshielded | 200mOhm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-332HC3.3UH SMD HI-CUR POWER INDUCTOR |
885 |
|
Datasheet |
CTDO3316HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5.7 A | 6.4A | Unshielded | 14mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.21mm x 9.91mm) | 0.250" (6.35mm) |
|
MHA1040NSGR15MFIXED IND 150NH 48A 0.55MOHM SMD |
700 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 48 A | 65A | - | 0.55mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.272" L x 0.256" W (11.15mm x 10.00mm) | 0.150" (3.80mm) |
|
IHVR4025JZEZR15M3ZFIXED INDUCTOR SMD |
269 |
|
Datasheet |
IHVR-4025JZ-3Z | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±20% | 112 A | 82A | Shielded | 0.143mOhm Max | - | 126MHz | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.252" W (10.00mm x 6.40mm) | 0.394" (10.00mm) |
|
SM5018-R82MHFFIXED IND 820NH 31A 2.3MOHM SMD |
250 |
|
Datasheet |
SM5018 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 820 nH | ±20% | 31 A | 53A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
CTDO3316PF-2222.2UH SMD UNSHLD POWER INDUCTOR |
227 |
|
Datasheet |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 10mOhm | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|

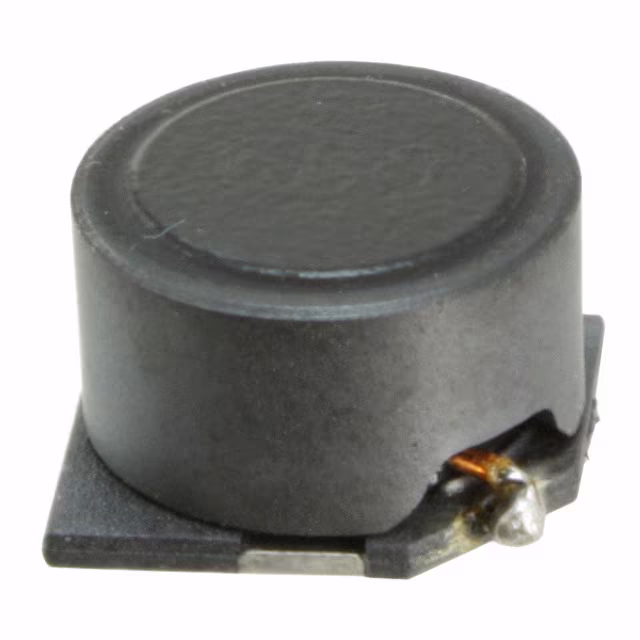

LMXS131JM680FTASFIXED IND 68UH 2A 94 MOHM SMD |
347 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2 A | - | Shielded | 94mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
XFL3012-222MECXFL3012-222MEC |
23,357 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 1.4 A | 1.6A | Shielded | 97mOhm Max | - | 73.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-224MECXFL3012-224MEC |
21,990 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 220 µH | ±20% | 170 mA | 160mA | Shielded | 8Ohm Max | - | 6.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-682MECXFL3012-682MEC |
17,691 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 1.3 A | 610mA | Shielded | 200mOhm Max | - | 39.9MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-152MECXFL3012-152MEC |
15,366 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 1.5 µH | ±20% | 1.6 A | 2.2A | Shielded | 72mOhm Max | - | 94.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-102MECXFL3012-102MEC |
10,539 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 2.6 A | 1.4A | Shielded | 46mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-104MECXFL3012-104MEC |
6,743 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 100 µH | ±20% | 290 mA | 280mA | Shielded | 3Ohm Max | - | 9.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-153MECXFL3012-153MEC |
6,410 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 15 µH | ±20% | 740 mA | 650mA | Shielded | 483mOhm Max | - | 25.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-223MECXFL3012-223MEC |
4,554 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 22 µH | ±20% | 800 mA | 320mA | Shielded | 630mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-823MECXFL3012-823MEC |
4,126 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 82 µH | ±20% | 260 mA | 240mA | Shielded | 2.44Ohm Max | - | 10.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
XFL3012-681MECXFL3012-681MEC |
3,362 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 2.1 A | 2.7A | Shielded | 40mOhm Max | - | 164MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
MSS6132T-333MLCFIXED IND 33UH 1.6A 250MOHM SM |
3,352 |
|
Datasheet |
MSS6132T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 33 µH | ±20% | 1.6 A | 1.1A | Shielded | 250mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.126" (3.20mm) |
|
|
XFL3012-473MECXFL3012-473MEC |
2,326 |
|
Datasheet |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | 47 µH | ±20% | 330 mA | 320mA | Shielded | 1.32Ohm Max | - | 13.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
