Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF120612R15LZFTLVR (L12XW6.2XH12) 150NH |
295 |
|
Datasheet |
SMF120612 (Z) | Nonstandard, 4 Lead | Cut Tape (CT) | Active | Wirewound | - | 150 nH | ±15% | 70 A | 80A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.472" L x 0.244" W (12.00mm x 6.20mm) | 0.472" (12.00mm) |
|
|
SMF110511R20LZFTLVR (L11.7XW5.7XH11) 200NH |
250 |
|
Datasheet |
SMF110511 (Z) | Nonstandard, 4 Lead | Cut Tape (CT) | Active | Wirewound | - | 200 nH | ±15% | 77 A | 58A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.461" L x 0.224" W (11.70mm x 5.70mm) | 0.441" (11.20mm) |
|
MPCH1040L1R0FIXED IND 1UH 17A 2.3 MOHM SMD |
204 |
|
Datasheet |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 17 A | 17A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
TMPA 1707SP-220MN-D22 UH SHIELDED MOLDED INDUCTOR S |
171 |
|
Datasheet |
TMPA1707SP | Nonstandard | Cut Tape (CT) | Active | Molded | - | 22 µH | ±20% | 11.5 A | 11.5A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
SLF12565T-152MR37-HFIXED IND 1.5MH 400MA 3.36OHM SM |
459 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 400 mA | 370mA | Shielded | 3.36Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
SLF12565T-331MR87-HFIXED IND 330UH 950MA 592.8 MOHM |
140 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 950 mA | 870mA | Shielded | 592.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
TMPA 1707SP-330MN-D33 UH SHIELDED MOLDED INDUCTOR S |
137 |
|
Datasheet |
TMPA1707SP | Nonstandard | Cut Tape (CT) | Active | Molded | - | 33 µH | ±20% | 10 A | 10A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
CTM1F-R12HAXIAL MOLDED INDUCTOR |
8,947 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 120 nH | - | 1.27 A | - | Unshielded | 90mOhm Max | 40 @ 25MHz | 640MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-R33M.33UH AXIAL MOLDED INDUCTOR |
4,995 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 330 nH | ±20% | 815 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-R27HAXIAL MOLDED INDUCTOR |
3,997 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 270 nH | - | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
PA5004.332NLTFIXED IND 3.3UH 8A 20.8MOHM SMD |
1,987 |
|
Datasheet |
PA5004.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | ±20% | 8 A | 12.2A | Shielded | 20.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.122" (3.10mm) |
|
|
PA5004.331NLTFIXED IND 330NH 25A 2.5MOHM SMD |
1,747 |
|
Datasheet |
PA5004.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 330 nH | ±20% | 25 A | 32A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.118" (3.00mm) |
|
|
PA5004.681NLTFIXED IND 680NH 20A 5.17MOHM SMD |
1,252 |
|
Datasheet |
PA5004.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 680 nH | ±20% | 20 A | 25A | Shielded | 5.17mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.118" (3.00mm) |
|
|
CTM1F-1R0K1.0UH AXIAL MOLDED INDUCTOR |
390 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±10% | 385 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-120K12UH AXIAL MOLDED INDUCTOR |
300 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 µH | ±10% | 155 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-180K18UH AXIAL MOLDED INDUCTOR |
295 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±10% | 145 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-681K680UH AXIAL MOLDED INDUCTOR |
295 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±10% | 30 mA | - | Unshielded | 60Ohm Max | 30 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

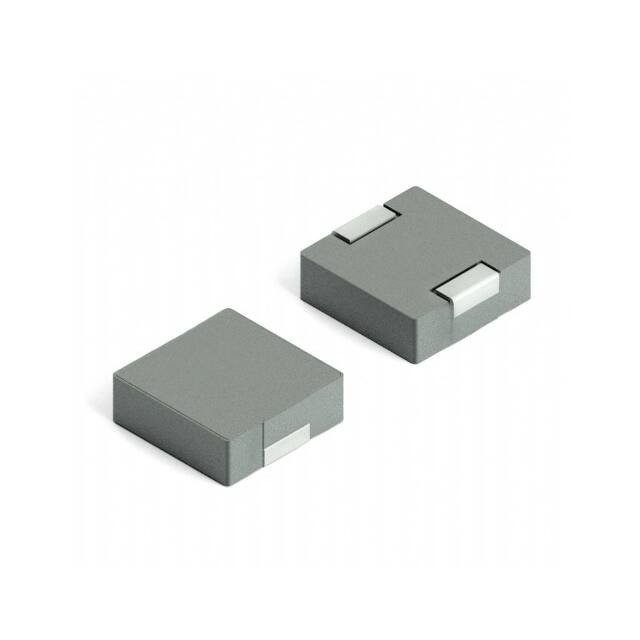

XFHCL4-R56MFIXED IND 560NH 36A 1.6 MOHM SMD |
250 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 36 A | 55A | Shielded | 1.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
XFHCL4-7R8MFIXED IND 7.8UH 10A 21 MOHM SMD |
250 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 7.8 µH | ±20% | 10 A | 18A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
XFHCL4-R47MFIXED IND 470NH 38A 1.3 MOHM SMD |
250 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 38 A | 65A | Shielded | 1.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
