Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

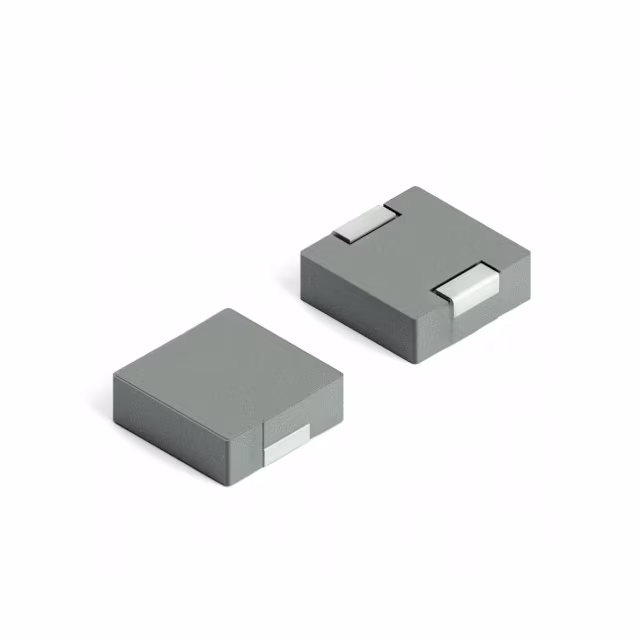

XFHCL11-R19MFIXED IND 190NH 40A 1 MOHM SMD |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 190 nH | ±20% | 40 A | 90A | Shielded | 1mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SBC4-472-141FIXED IND 4.7MH 140MA 9.78OHM TH |
272 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 140 mA | 210mA | Unshielded | 9.78Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
LPS4018-332MRCFIXED IND 3.3UH 1.9A 80MOHM SMD |
125,021 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 3.3 µH | ±20% | 1.4 A | 1.9A | Shielded | 80mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
LPS3015-102MRCFIXED IND 1UH 2A 75 MOHM SMD |
78,398 |
|
Datasheet |
LPS3015 | Nonstandard | Strip | Active | - | Ferrite | 1 µH | ±20% | 2 A | 2.5A | Shielded | 75mOhm Max | - | 190MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.116" L x 0.116" W (2.95mm x 2.95mm) | 0.059" (1.50mm) |
|
|
LPS3015-222MRCFIXED IND 2.2UH 1.4A 110MOHM SMD |
60,813 |
|
Datasheet |
LPS3015 | Nonstandard | Strip | Active | - | Ferrite | 2.2 µH | ±20% | 1.4 A | 2.1A | Shielded | 110mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.116" L x 0.116" W (2.95mm x 2.95mm) | 0.059" (1.50mm) |
|
|
LPS4018-183MRCFIXED IND 18UH 1A 270 MOHM SMD |
54,346 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 18 µH | ±20% | 700 mA | 780mA | Shielded | 270mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
LPS4018-472MRCFIXED IND 4.7UH 1.8A 125MOHM SMD |
49,804 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 4.7 µH | ±20% | 1.3 A | 1.8A | Shielded | 125mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
LPS4012-155MRCFIXED IND 1.5MH 115MA 30OHM SM |
46,642 |
|
Datasheet |
LPS4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.5 mH | ±20% | 115 mA | 90mA | Shielded | 30Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.047" (1.20mm) |
|
|
LPS4018-333MRCFIXED IND 33UH 800MA 420MOHM SMD |
45,500 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 33 µH | ±20% | 550 mA | 580mA | Shielded | 420mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
LPS3015-683MRCFIXED IND 68UH 330MA 2.35OHM SMD |
44,983 |
|
Datasheet |
LPS3015 | Nonstandard | Strip | Active | - | Ferrite | 68 µH | ±20% | 330 mA | 310mA | Shielded | 2.35Ohm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.116" L x 0.116" W (2.95mm x 2.95mm) | 0.059" (1.50mm) |
|
1008LS-472XJRC1008LS-472XJRC |
37,158 |
|
Datasheet |
1008LS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 4.7 µH | ±5% | 400 mA | - | Unshielded | 1.68Ohm Max | 32 @ 7.9MHz | 90MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
LPS4018-102NRCFIXED IND 1UH 2.5A 42 MOHM SMD |
35,371 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 1 µH | ±30% | 1.8 A | 3.8A | Shielded | 42mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
1008LS-123XJRC1008LS-123XJRC |
31,603 |
|
Datasheet |
1008LS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 12 µH | ±5% | 290 mA | - | Unshielded | 3.3Ohm Max | 28 @ 2.5MHz | 38MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
LPS3015-472MRCFIXED IND 4.7UH 1.2A 200MOHM SMD |
29,136 |
|
Datasheet |
LPS3015 | Nonstandard | Strip | Active | - | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.2A | Shielded | 200mOhm Max | - | 79MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.116" L x 0.116" W (2.95mm x 2.95mm) | 0.059" (1.50mm) |
|
|
LPS4012-152MRCFIXED IND 1.5UH 2.2A 70MOHM SM |
27,474 |
|
Datasheet |
LPS4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.5 µH | ±20% | 2.2 A | 2.8A | Shielded | 70mOhm Max | - | 140MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.047" (1.20mm) |
|
|
LPS4018-473MRCFIXED IND 47UH 680MA 650MOHM SMD |
26,650 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 47 µH | ±20% | 450 mA | 510mA | Shielded | 650mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
LPS4018-222MRCFIXED IND 2.2UH 2A 70 MOHM SMD |
26,430 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 2.2 µH | ±20% | 1.5 A | 2.7A | Shielded | 70mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
LPS4018-103MRCFIXED IND 10UH 1.25A 200MOHM SMD |
25,651 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 10 µH | ±20% | 900 mA | 1.1A | Shielded | 200mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
LPS4018-334MRCFIXED IND 330UH 230MA 5.9OHM SMD |
25,342 |
|
Datasheet |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 330 µH | ±20% | 170 mA | 180mA | Shielded | 5.9Ohm Max | - | 5.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
LPS4012-562MRCFIXED IND 5.6UH 1.1A 260MOHM SM |
25,259 |
|
Datasheet |
LPS4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 5.6 µH | ±20% | 1.1 A | 1.6A | Shielded | 260mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.047" (1.20mm) |
