Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4345.331NLTFIXED IND 330NH 12A 7.3 MOHM SMD |
5,998 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 12 A | 21.3A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
|
PA4345.152NLTFIXED IND 1.5UH 5.5A 30.5MOHM SM |
5,990 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 5.5 A | 9.8A | Shielded | 30.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
|
PA4345.681NLTFIXED IND 680NH 10A 12.4MOHM SMD |
5,940 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 10 A | 12.8A | Shielded | 12.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
|
PA4345.102NLTFIXED IND 1UH 7A 20 MOHM SMD |
4,241 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7 A | 13.7A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
PA4307.334NLTFIXED IND 330UH 550MA 3.78OHM SM |
3,990 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 550 mA | - | Unshielded | 3.78Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
PA4307.682NLTFIXED IND 6.8UH 3.8A 95 MOHM SMD |
3,990 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 3.8 A | - | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
PA4307.103NLTFIXED IND 10UH 2.8A 140 MOHM SMD |
3,984 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.8 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
CLF7045T-1R5N-HFIXED IND 1.5UH 7.3A 11 MOHM SMD |
2,088 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 7.3 A | 4.9A | Shielded | 11mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
PA4345.122NLTFIXED IND 1.2UH 6.2A 28 MOHM SMD |
1,913 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 6.2 A | 11A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|

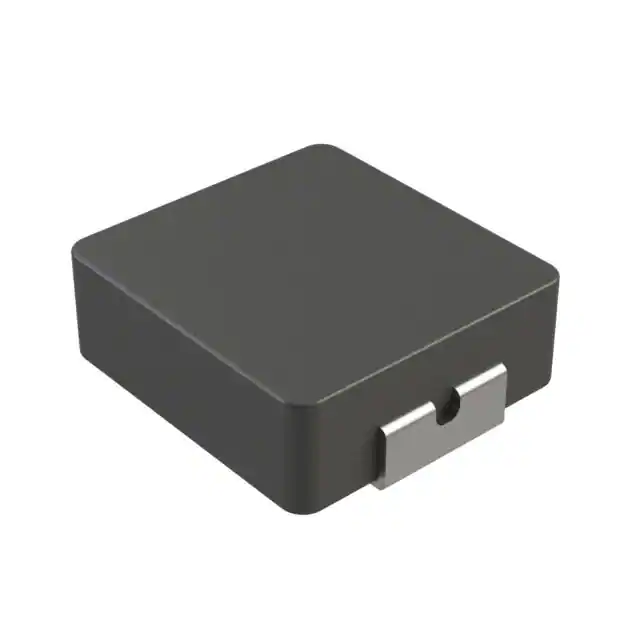

PM4548.152NLTFIXED IND 1.5UH 9A 20 MOHM SMD |
2,800 |
|
Datasheet |
PM4548.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 9 A | 15A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PM4548.331NLTFIXED IND 330NH 18A 4.4 MOHM SMD |
2,384 |
|
Datasheet |
PM4548.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 18 A | 30A | Unshielded | 4.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
LTF4022T-2R2N-DFIXED IND 2.2UH 2.6A 41 MOHM SMD |
1,004 |
|
Datasheet |
LTF4022-D | 2-SMD | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.6 A | 2A | Shielded | 41mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.087" (2.20mm) |
|
ASPIAIG-H8540-8R2M-TFIXED IND 8.2UH 3.7A 46.8MOHM SM |
1,000 |
|
Datasheet |
ASPIAIG-H8540 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 8.2 µH | ±20% | 3.7 A | 8.5A | Shielded | 46.8mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.335" W (8.80mm x 8.50mm) | 0.157" (4.00mm) |
|
XFHCL6-1R5MFIXED IND 1.5UH 9A 15 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

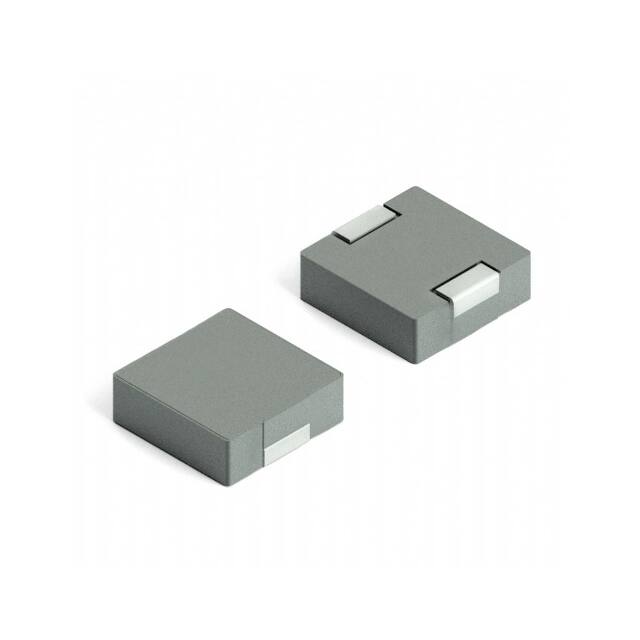

XFHCL6-R47MFIXED IND 470NH 17A 4.2 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 17 A | 26A | Shielded | 4.2mOhm Max | - | 75MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PM4548.153NLTFIXED IND 15UH 2.5A 180 MOHM SMD |
813 |
|
Datasheet |
PM4548.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.5 A | 3.5A | Unshielded | 180mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
PM4341.223NLTFIXED IND 22UH 2A 190 MOHM SMD |
687 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 2 A | 3.5A | Shielded | 190mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
MGV0502R33M-10FIXED IND 330NH 12A 8.2 MOHM SMD |
484 |
|
- |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 330 nH | ±20% | 12 A | 25A | Shielded | 8.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.201" W (5.50mm x 5.10mm) | 0.091" (2.30mm) |
|
|
MGV0503R10M-10FIXED IND 100NH 23A 3.16MOHM SMD |
421 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 100 nH | ±20% | 23 A | 27A | Shielded | 3.16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.201" W (5.50mm x 5.10mm) | 0.130" (3.30mm) |
|
SPM4010T-3R3M-LRFIXED IND 3.3UH 2.1A 176MOHM SMD |
375 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.1 A | 2.7A | Shielded | 176mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
