Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF6045T-3R3N-HFIXED IND 3.3UH 3.5A 19 MOHM SMD |
1,000 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.5 A | 3.1A | Shielded | 19mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|

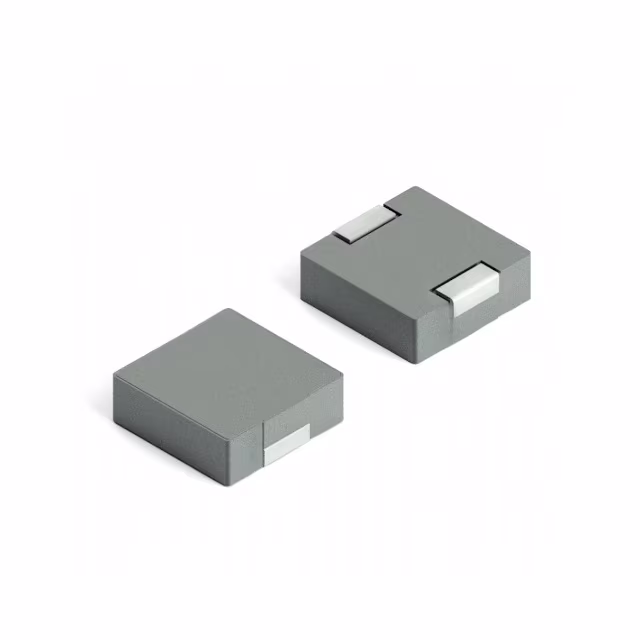

XFHCL6-R22MFIXED IND 220NH 23A 2.8 MOHM SMD |
1,000 |
|
Datasheet |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | 126MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CLF6045T-151M-HFIXED IND 150UH 600MA 480MOHM SM |
695 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 600 mA | 500mA | Shielded | 480mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|
|
CLF6045T-220M-HFIXED IND 22UH 1.7A 78 MOHM SMD |
689 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.7 A | 1.3A | Shielded | 78mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|

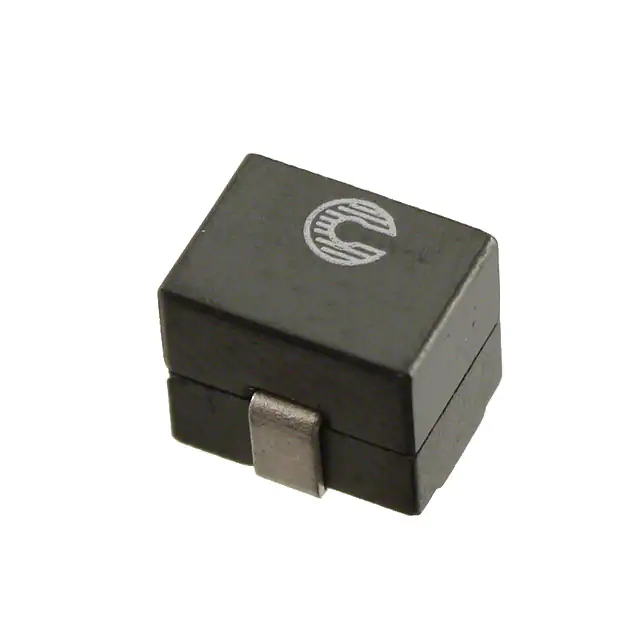

FP0708R1-R20-RFIXED IND 200NH 44A 0.35MOHM SMD |
4,316 |
|
Datasheet |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±10% | 44 A | 36A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
|
FP0807R1-R20-RFIXED IND 200NH 49A 0.5 MOHM SMD |
2,649 |
|
Datasheet |
FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±10% | 49 A | 38A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
|
PA4345.221NLTFIXED IND 220NH 15A 5.5 MOHM SMD |
5,646 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 15 A | 25A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|

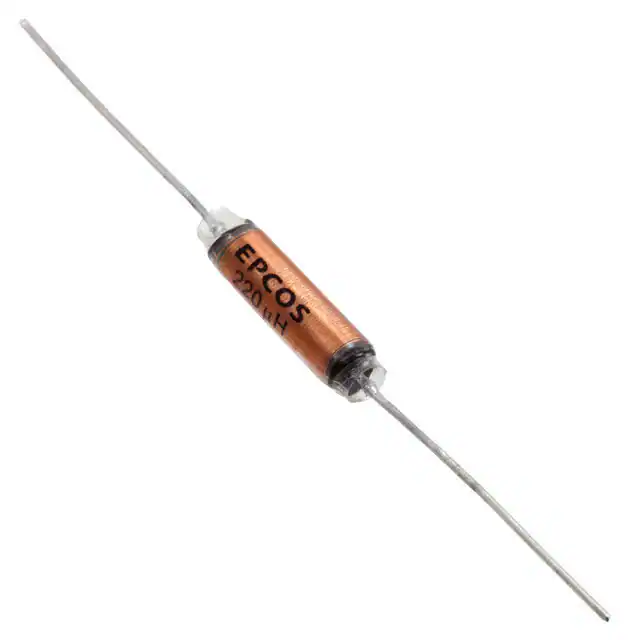

B82111E0000C026FIXED IND 220UH 500MA 2.6 OHM TH |
2,021 |
|
Datasheet |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 500 mA | - | Unshielded | 2.6Ohm | - | 32MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 1.024" L (6.50mm x 26.00mm) | - |
|
MGA06052R2M-10FIXED IND 2.2UH 8A 12.5 MOHM SMD |
1,983 |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 8 A | 12A | Unshielded | 12.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MGA0605R56M-10FIXED IND 560NH 20A 3.3 MOHM SMD |
800 |
|
- |
MGA | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 560 nH | ±20% | 20 A | 20A | Unshielded | 3.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|

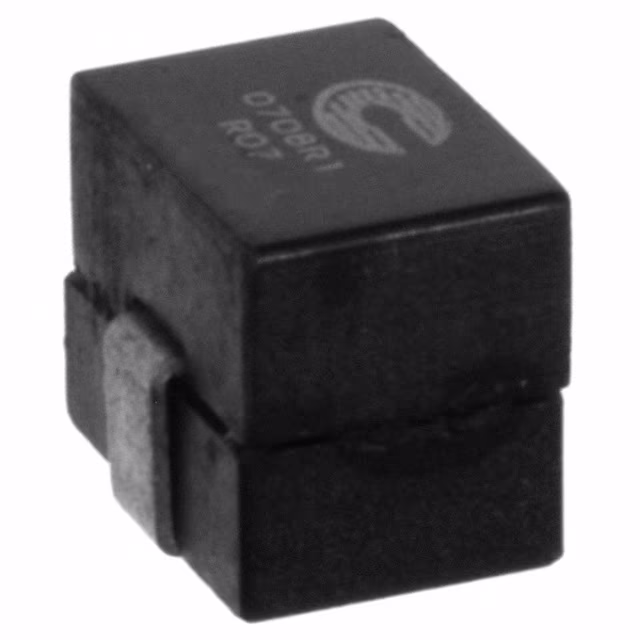

FP0708R1-R07-RFIXED IND 72NH 44A 0.35 MOHM SMD |
3,297 |
|
Datasheet |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 72 nH | ±10% | 44 A | 90A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
|
|
PA4345.471NLTFIXED IND 470NH 11.5A 8.6MOHM SM |
14,890 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 11.5 A | 18A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
PA4307.102NLTFIXED IND 1UH 7.5A 30 MOHM SMD |
7,990 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 7.5 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
PA4307.104NLTFIXED IND 100UH 1A 1.243 OHM SMD |
7,990 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1 A | - | Unshielded | 1.243Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
PA4307.223NLTFIXED IND 22UH 2A 345 MOHM SMD |
7,987 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2 A | - | Unshielded | 345mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
PA4307.474NLTFIXED IND 470UH 440MA 5.4OHM SMD |
7,980 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 440 mA | - | Unshielded | 5.4Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
PA4307.332NLTFIXED IND 3.3UH 5.4A 60 MOHM SMD |
7,960 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 5.4 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
PA4307.683NLTFIXED IND 68UH 1.2A 850 MOHM SMD |
7,943 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.2 A | - | Unshielded | 850mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
PA4345.151NLTFIXED IND 150NH 16A 4.6 MOHM SMD |
3,538 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 16 A | 27A | Shielded | 4.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
|
PA4345.101NLTFIXED IND 100NH 18A 4 MOHM SMD |
5,999 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 18 A | 45A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
