Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

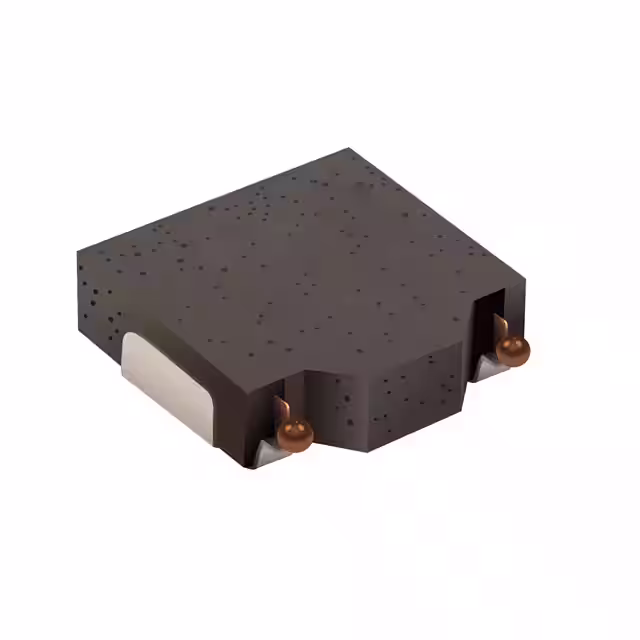

SRP0510-1R0KFIXED IND 1UH 4A 57 MOHM SMD |
4,032 |
|
Datasheet |
SRP0510 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±10% | 4 A | 8A | Shielded | 57mOhm Max | 41 @ 7.96MHz | 51MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
VLS2012ET-1R5N-CAFIXED IND 1.5UH 1.45A 108MOHM SM |
1,890 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.45 A | 1.2A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
CT1008LSCF-220JSMD FER CORE WIRE-WOUND INDUCTOR |
1,820 |
|
Datasheet |
ct1008lscf | - | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±5% | - | - | - | 5.5Ohm | - | 22MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
VLS2012ET-3R3M-CAFIXED IND 3.3UH 1A 228 MOHM SMD |
1,815 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1 A | 840mA | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
NLHV25T-R22J-PFFIXED IND 220NH 450MA 500MOHM SM |
1,807 |
|
Datasheet |
NLHV | Nonstandard | Cut Tape (CT) | Obsolete | Wirewound | - | 220 nH | ±5% | 450 mA | - | Unshielded | 500mOhm Max | 35 @ 25.2MHz | 450MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
VLS2010ET-3R3M-CAFIXED IND 3.3UH 860MA 348MOHM SM |
1,578 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 860 mA | 830mA | Shielded | 348mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
MLK1005SR30JTD25FIXED IND 300NH 70MA 7.5 OHM SMD |
1,520 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 300 nH | ±5% | 70 mA | - | Unshielded | 7.5Ohm Max | 6 @ 100MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
NLHV25T-R47J-PFFIXED IND 470NH 350MA 830MOHM SM |
1,301 |
|
Datasheet |
NLHV | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±5% | 350 mA | - | Unshielded | 830mOhm Max | 40 @ 25.2MHz | 350MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
MLK1005SR16JTD25FIXED IND 160NH 80MA 5.2 OHM SMD |
1,280 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 160 nH | ±5% | 80 mA | - | Unshielded | 5.2Ohm Max | 6 @ 100MHz | 1.1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
VLS2010ET-6R8M-CAFIXED IND 6.8UH 630MA 648MOHM SM |
1,135 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 630 mA | 570mA | Shielded | 648mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
MS06301R0MS001INDUCTANCE 1.0 H TOL 20% |
331,000 |
|
Datasheet |
MS | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 12 A | 15A | Shielded | 7.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.281" L x 0.260" W (7.15mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MLK1005S5N6STD25FIXED IND 5.6NH 400MA 300MOHM SM |
15,773 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 5.6 nH | ±0.3nH | 400 mA | - | Unshielded | 300mOhm Max | 7 @ 100MHz | 5.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLK1005S1N3STD25FIXED IND 1.3NH 500MA 150MOHM SM |
9,871 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.3 nH | ±0.3nH | 500 mA | - | Unshielded | 150mOhm Max | 5 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLK1005S2N4STD25FIXED IND 2.4NH 500MA 200MOHM SM |
9,709 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 2.4 nH | ±0.3nH | 500 mA | - | Unshielded | 200mOhm Max | 6 @ 100MHz | 7.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLK1005S3N6STD25FIXED IND 3.6NH 400MA 250MOHM SM |
9,695 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 3.6 nH | ±0.3nH | 400 mA | - | Unshielded | 250mOhm Max | 7 @ 100MHz | 6.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLK1005S1N1STD25FIXED IND 1.1NH 500MA 120MOHM SM |
9,694 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.1 nH | ±0.3nH | 500 mA | - | Unshielded | 120mOhm Max | 5 @ 100MHz | 11.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
TYA4020R68M-10FIXED IND 680NH 5.8A 24.5MOHM SM |
8,335 |
|
Datasheet |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 5.8 A | 9A | Shielded | 24.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
ELJ-QF12NJFFIXED IND 12NH 320MA 450MOHM SMD |
8,300 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 12 nH | ±5% | 320 mA | - | Unshielded | 450mOhm Max | 10 @ 100MHz | 2.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLK1005S5N1STD25FIXED IND 5.1NH 400MA 300MOHM SM |
7,191 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 5.1 nH | ±0.3nH | 400 mA | - | Unshielded | 300mOhm Max | 7 @ 100MHz | 5.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
AISC-0603F-R22J-TFIXED IND 220NH 650MA 200MOHM SM |
2,048 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±5% | 650 mA | - | Unshielded | 200mOhm Max | - | 850MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
