Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS3015470M-10FIXED IND 47UH 350MA 1.25OHM SMD |
5,996 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 350 mA | 350mA | Shielded | 1.25Ohm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
MLK1005S3N0STD25FIXED IND 3NH 400MA 220 MOHM SMD |
4,526 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 3 nH | ±0.3nH | 400 mA | - | Unshielded | 220mOhm Max | 6 @ 100MHz | 7.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
CT0603CSF-18NGSMD CER CORE WIRE-WOUND INDUCTOR |
4,044 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 18 nH | ±2% | - | - | - | 170mOhm | - | 3.1GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
TYS30152R2N-10FIXED IND 2.2UH 1.6A 60 MOHM SMD |
3,744 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.6 A | 1.6A | Shielded | 60mOhm Max | - | 86MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
L0806CR47MDMITFIXED IND 470NH 1.6A 75 MOHM SMD |
1,141 |
|
Datasheet |
L-DMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 470 nH | ±20% | 1.6 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

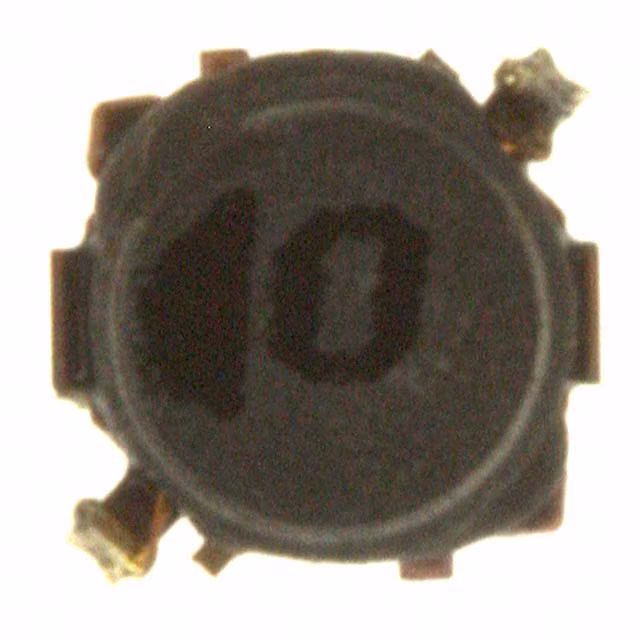

ELL-VFG150MCFIXED IND 15UH 480MA 540MOHM SMD |
1,925 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 480 mA | 500mA | Shielded | 540mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
CT0805FSF-102JSMD FER CORE WIRE-WOUND INDUCTOR |
1,800 |
|
Datasheet |
ct0805fsf | - | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±5% | - | - | - | 800mOhm | - | 280MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R27GSMD CER CORE WIRE-WOUND INDUCTOR |
1,400 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 270 nH | ±2% | - | - | - | 2.3Ohm | - | 900MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
887FU-821M=P3FIXED IND 820UH 63MA 30 OHM SMD |
8,179 |
|
Datasheet |
D32FU | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 820 µH | ±20% | 63 mA | 71mA | Unshielded | 30Ohm Max | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
|
L0805C100MDWLTFIXED IND 10UH 205MA 1 OHM SMD |
4,353 |
|
Datasheet |
L-DWL | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 205 mA | - | Unshielded | 1Ohm | - | 32MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
SBCP-47HY6R8BFIXED IND 6.8UH 1.9A 52 MOHM TH |
2,564 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.9 A | 1.93A | Unshielded | 52mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|

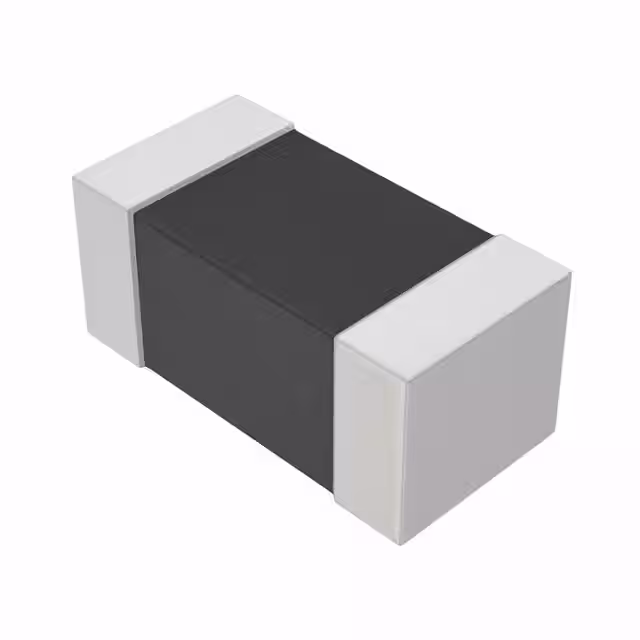

ELJ-QE22NJFAFIXED IND 22NH 290MA 520MOHM SMD |
2,780 |
|
Datasheet |
QE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 22 nH | ±5% | 290 mA | - | Unshielded | 520mOhm Max | 15 @ 100MHz | 3.7GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
ELJ-FAR22MF2FIXED IND 220NH 360MA 290MOHM SM |
4,399 |
|
Datasheet |
FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 nH | ±20% | 360 mA | - | Unshielded | 290mOhm Max | 25 @ 25.2MHz | 230MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ASPI-0410FS-2R2M-T35FIXED IND 2.2UH 1.15A 150MOHM SM |
1,926 |
|
Datasheet |
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.15 A | 1.25A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
TMPC 0603H-3R3MG-D3.3 UH SHIELDED MOLDED INDUCTOR |
1,830 |
|
Datasheet |
TMPC0603H | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6 A | 13.5A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
ASPI-0410FS-100M-T35FIXED IND 10UH 560MA 380MOHM SMD |
1,741 |
|
Datasheet |
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 560 mA | 620mA | Shielded | 380mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
TYA4012R68M-10FIXED IND 680NH 3.25A 55MOHM SMD |
17,498 |
|
Datasheet |
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.25 A | 5.2A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA40122R2M-10FIXED IND 2.2UH 2.5A 90 MOHM SMD |
16,861 |
|
Datasheet |
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.5 A | 2.8A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA40121R5M-10FIXED IND 1.5UH 2.8A 75 MOHM SMD |
13,814 |
|
Datasheet |
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.8 A | 3.8A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA4012100M-10FIXED IND 10UH 850MA 360MOHM SMD |
9,452 |
|
Datasheet |
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 850 mA | 1.55A | Shielded | 360mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
