Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

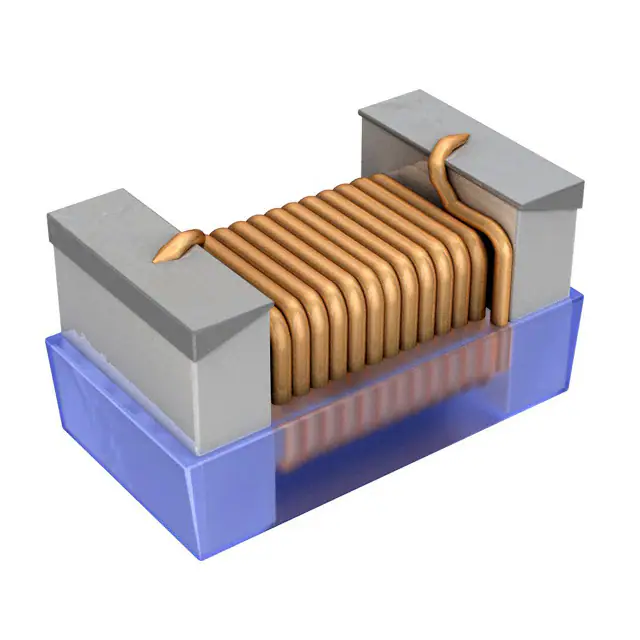

AISC-0402F-R22J-TFIXED IND 200NH 390MA 470MOHM SM |
29,533 |
|
Datasheet |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±5% | 390 mA | - | Unshielded | 470mOhm Max | - | 800MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
PA4335.682NLTFIXED IND 6.8UH 950MA 366MOHM SM |
23,692 |
|
Datasheet |
PA4335.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 6.8 µH | ±20% | 950 mA | 1.15A | Shielded | 366mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.047" (1.20mm) |
|
TYA30122R2M-10FIXED IND 2.2UH 2.05A 108MOHM SM |
18,432 |
|
Datasheet |
TYA3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.05 A | 2.8A | Shielded | 108mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
PE-0805CD220GTTFIXED IND 21.7NH 500MA 220 MOHM |
3,608 |
|
Datasheet |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 21.7 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PA4335.681NLTFIXED IND 680NH 3.15A 43MOHM SMD |
12,000 |
|
Datasheet |
PA4335.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 680 nH | ±20% | 3.15 A | 3.5A | Shielded | 43mOhm Max | - | 67MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.047" (1.20mm) |
|
AMELA2010S-R47MTFIXED IND 470NH 4.1A 29MOHM SMD |
12,000 |
|
Datasheet |
AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 4.1 A | 5.5A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYA3012R68M-10FIXED IND 680NH 3.1A 46MOHM SMD |
10,000 |
|
Datasheet |
TYA3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.1 A | 5.8A | Shielded | 46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
TYA30123R3M-10FIXED IND 3.3UH 1.5A 185MOHM SMD |
9,950 |
|
Datasheet |
TYA3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.5 A | 2.2A | Shielded | 185mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
TYA30124R7M-10FIXED IND 4.7UH 1.15A 255MOHM SM |
9,058 |
|
Datasheet |
TYA3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.15 A | 2A | Shielded | 255mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
TYA3012150M-10FIXED IND 15UH 530MA 740MOHM SMD |
8,841 |
|
Datasheet |
TYA3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 530 mA | 1.1A | Shielded | 740mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
ASPI-U252010-R47M-TFIXED IND 470NH SMD |
2,230 |
|
Datasheet |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
MLK1005S56NJTD25FIXED IND 56NH 200MA 1.3 OHM SMD |
7,954 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 56 nH | ±5% | 200 mA | - | Unshielded | 1.3Ohm Max | 6 @ 100MHz | 1.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
TYA30121R5M-10FIXED IND 1.5UH 2.5A 74 MOHM SMD |
7,760 |
|
Datasheet |
TYA3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.5 A | 3.4A | Shielded | 74mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
AISC-0402F-70NJ-TFIXED IND 70NH 820MA 120MOHM SMD |
7,287 |
|
Datasheet |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 70 nH | ±5% | 820 mA | - | Unshielded | 120mOhm Max | - | 1.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
TYA3012220M-10FIXED IND 22UH 400MA 1.2 OHM SMD |
6,656 |
|
Datasheet |
TYA3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 400 mA | 960mA | Shielded | 1.2Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
MLK1005S33NJTD25FIXED IND 33NH 200MA 900MOHM SMD |
3,875 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 33 nH | ±5% | 200 mA | - | Unshielded | 900mOhm Max | 7 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LQH3NPZ150MGRLFIXED IND 15UH 540MA 468MOHM SMD |
3,148 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 540 mA | 480mA | Shielded | 468mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
AMELA2010S-R22MTFIXED IND 220NH 6.5A 17MOHM SMD |
2,730 |
|
Datasheet |
AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 6.5 A | 8.5A | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW2BHNR18J03LFIXED IND 180NH 250MA 0.71OHM SM |
2,414 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 180 nH | ±5% | 250 mA | - | Unshielded | 710mOhm Max | 35 @ 100MHz | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
L0805B680MDWLTFIXED IND 68UH SMD |
2,308 |
|
Datasheet |
L-DWL | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
