PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MICROSMD075-2PTC RESET FUSE 6V 750MA 1210 |
9,335 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 100 ms | 110 mOhms | 400 mOhms | - | - | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.62mm) | - |
|
|
MICROSMD150-2PTC RESET FUSE 6V 1.5A 1210 |
9,347 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 40 A | 1 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.048" (1.22mm) | - |
|

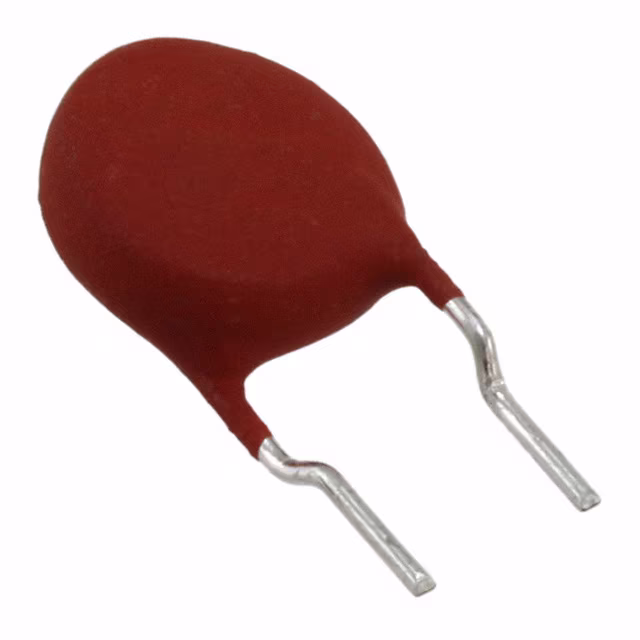

PTGL09AR220M6B52B0THERMISTOR PTC 125V 22 OHM 120C |
8,728 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 125V | 175 mA | 290 mA | 800 mA | - | - | - | 22 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.394" Dia x 0.217" W (10.00mm x 5.50mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|
PTCTL4NR100LBEPTC RESET FUSE 350V 100MA RADIAL |
5,600 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 350V | 100 mA | 270 mA | 1 A | 4 s | - | - | 10 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.157" T (8.50mm x 4.00mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) |
|
0ZRM0185FF1APTC RESET FUSE 120V 1.85A RADIAL |
7,818 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.85 A | 3.7 A | 12 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.783" Dia x 0.161" T (19.90mm x 4.10mm) | 0.980" (24.90mm) | - | 0.201" (5.10mm) |
|
PTGL14ARR15M1B51B0PTC RESET FUSE 16V 1.545A RADIAL |
4,290 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 1.545 A | 2.855 A | 10 A | - | - | - | 150 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.531" Dia x 0.138" T (13.50mm x 3.50mm) | 0.728" (18.50mm) | - | 0.197" (5.00mm) |
|
MF-RHT800-2-14PTC 8.0A 16V RADIAL LEADED HI-TE |
3,995 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 8 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT800-AP-14PTC 8.0A 16V RADIAL LEADED HI-TE |
5,106 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 8 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT900-AP-14PTC 9.0A 16V RADIAL LEADED HI-TE |
3,546 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT900-2-14PTC 9.0A 16V RADIAL LEADED HI-TE |
8,411 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.201" (5.10mm) |
|
PTGL04AS100K2N51B0PTC RESET FUSE 30V 122MA RADIAL |
4,374 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 122 mA | 240 mA | 1.5 A | - | - | - | 10 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|

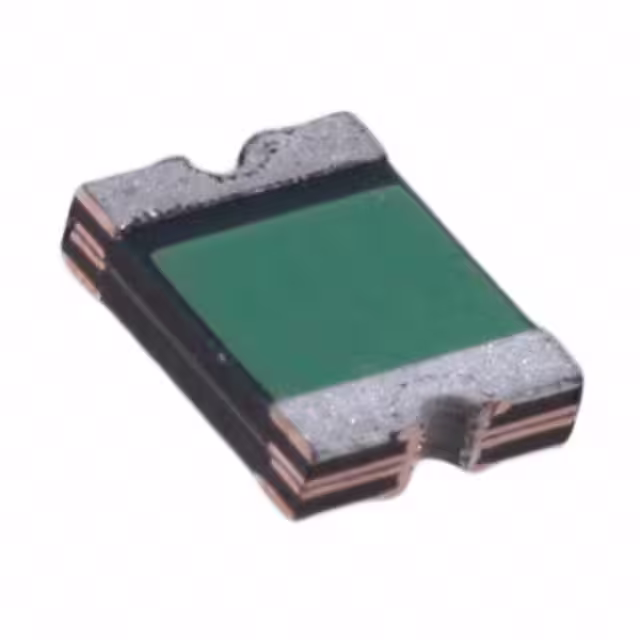

0ZCB0200FF2EPTC RESET FUSE 6V 2A 1210 |
5,420 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2 A | 4 A | 100 A | 1 s | 15 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
PTCCL09H131HBETHERMISTOR PTC 20% RADIAL |
7,866 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Obsolete | Ceramic | 265V | 130 mA | - | - | - | - | - | - | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.217" T (8.50mm x 5.50mm) | 0.531" (13.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL09H251FBETHERMISTOR PTC 9.4 OHM 20% RAD |
5,069 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Obsolete | Ceramic | 145V | 250 mA | 375 mA | 2 A | - | - | - | 9.4 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.197" T (8.50mm x 5.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
PTGL07AR8R2M3P51B0PTC RESET FUSE 56V 165MA RADIAL |
7,748 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 165 mA | 300 mA | 1 A | - | - | - | 8.2 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
PTR030V0600-TR1PTC RESET FUSE 30V 6A RADIAL |
5,535 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.346" (34.20mm) | - | 0.394" (10.00mm) |
|
|
PTCCL05H110HTEPTC RESET FUSE 265V 11MA RADIAL |
2,429 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 11 mA | 17 mA | 80 mA | - | - | - | 3 kOhms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.118" T (5.00mm x 3.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

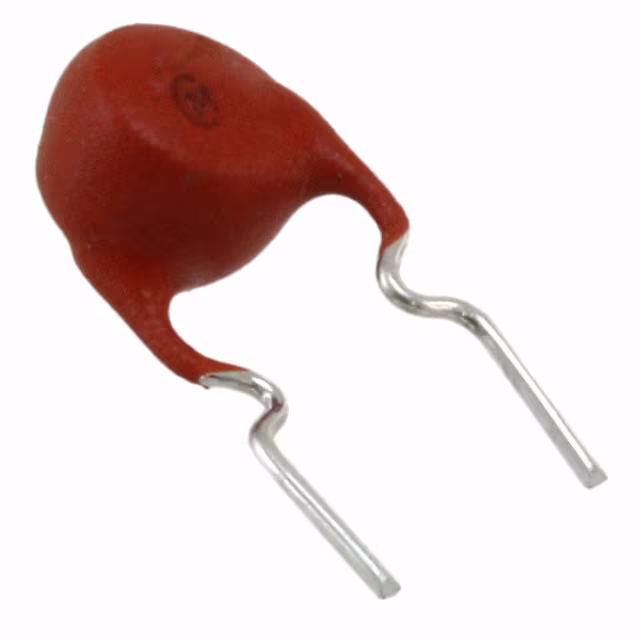

PTGL05AR181M9N51B0PTC RESET FUSE 265V 37MA RADIAL |
9,543 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 37 mA | 60 mA | 300 mA | - | - | - | 180 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.256" T (6.50mm x 6.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
RXEF040-APPTC RESET FUSE 72V 400MA RADIAL |
6,427 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
1206L400SLTH-VYRPTC RESET FUSE 6V 4A 1206 |
9,506 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4 A | 8 A | 50 A | 2 s | 1 mOhms | 16 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.055" (1.40mm) | - |
