PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

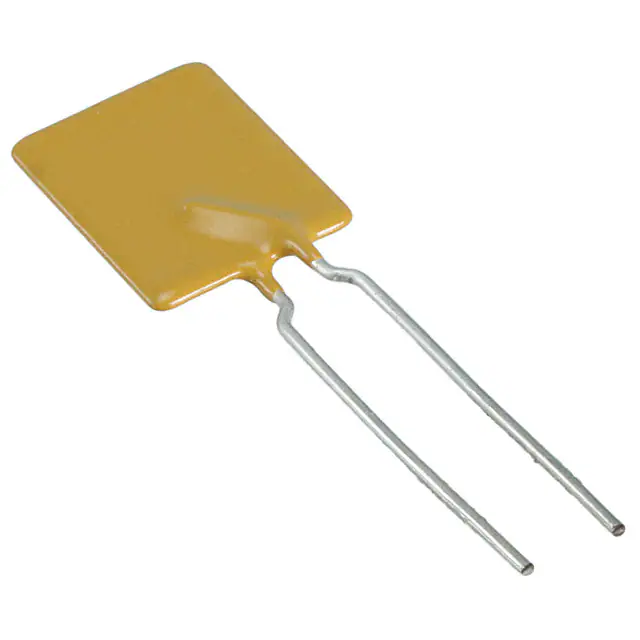

AHRF700PTC RESET FUSE 16V 7A RADIAL |
6,148 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 7 A | 13.1 A | 100 A | 7 s | 8.7 mOhms | 25 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.199" (5.05mm) |
|
PTGL9SAS1R2K2B51A0PTC RESET FUSE 30V 704MA RADIAL |
5,501 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 704 mA | 936 mA | 6 A | - | - | - | 1.2 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.366" Dia x 0.138" T (9.30mm x 3.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|

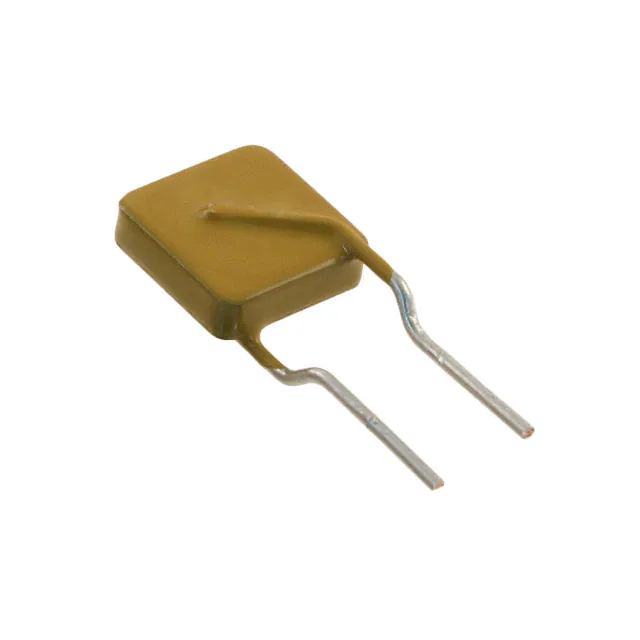

TR600-150PTC RESET FUSE 60V 150MA RADIAL |
7,061 |
|
Datasheet |
Radial, Disc | PolySwitch®, TR600 | Bulk | Obsolete | Polymeric | 60V (600V Int) | 150 mA | - | 3 A | 8 s | 6 Ohms | 22 Ohms | - | - | - | - | - | Through Hole | 0.532" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
PTGL09BD4R7N2B51B0PTC RESET FUSE 24V 216MA RADIAL |
8,801 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 216 mA | 398 mA | 2 A | - | - | - | 4.7 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
PTGL05AR181M7P52B0PTC RESET FUSE 125V 38MA RADIAL |
4,824 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 125V | 38 mA | 64 mA | 300 mA | - | - | - | 180 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.236" Dia x 0.197" T (6.00mm x 5.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
PTR016V0600-TR1PTC RESET FUSE 16V 6A RADIAL |
3,717 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 6 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.122" W (10.70mm x 3.10mm) | 0.748" (19.00mm) | - | 0.197" (5.00mm) |
|
1210L110WRPTC RESET FUSE 8V 1.1A 1210 |
2,116 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 100 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.051" (1.30mm) | - |
|
|
1210L150PRPTC RESET FUSE 6V 1.5A 1210 |
5,426 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.071" (1.80mm) | - |
|
72R025XPRPTC RESET FUSE 72V 250MA RADIAL |
2,786 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Obsolete | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-RG900-0-14PTC RESETTABLE 9A 16V RADIAL LEA |
3,650 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
PTCCL05H470FBEPTC RESET FUSE 145V 47MA RADIAL |
7,893 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 47 mA | 70 mA | 200 mA | - | - | - | 240 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H930FBEPTC RESET FUSE 145V 93MA RADIAL |
2,516 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 93 mA | 140 mA | 450 mA | - | - | - | 55 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H111FBEPTC RESET FUSE 145V 110MA RADIAL |
2,899 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 110 mA | 165 mA | 500 mA | - | - | - | 40 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H131FBEPTC RESET FUSE 145V 130MA RADIAL |
4,950 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 130 mA | 195 mA | 600 mA | - | - | - | 28 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTR016V0700-TR1PTC RESET FUSE 16V 7A RADIAL |
6,053 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 6 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.122" W (11.20mm x 3.10mm) | 0.866" (22.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H650FBETHERMISTOR PTC 115 OHM 20% RAD |
5,415 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 65 mA | 100 mA | 300 mA | - | - | - | 115 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
TRF600-150-RB-2PTC RESET FUSE 250V 150MA RADIAL |
6,918 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Tape & Reel (TR) | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
PTGL09ARR33M1B51B0PTC RESET FUSE 16V 875MA RADIAL |
8,346 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 875 mA | 1.625 A | 7 A | - | - | - | 330 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
PFME.190.2PTC RESET FUSE 16V 1.9A 4520 |
2,977 |
|
Datasheet |
4520 (11350 Metric) | PMFE | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.9 A | 3.8 A | 100 A | 2 s | 17 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.446" L x 0.200" W (11.33mm x 5.08mm) | - | 0.025" (0.63mm) | - |
|

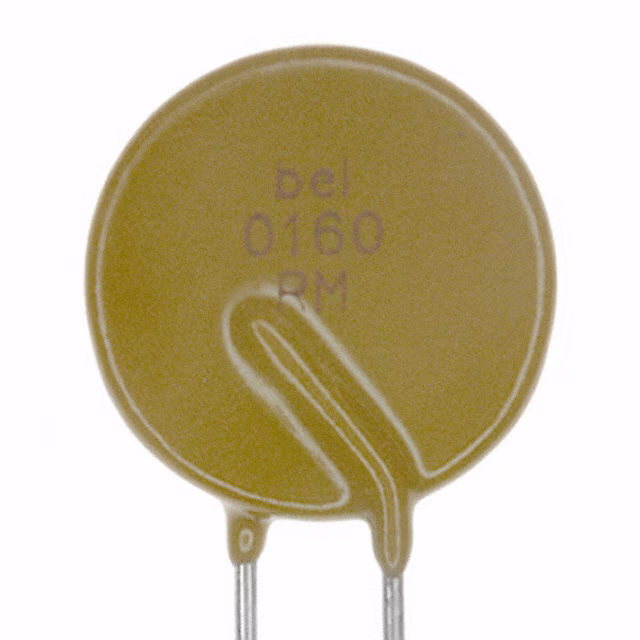

0ZRM0160FF1APTC RESET FUSE 120V 1.6A RADIAL |
3,845 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.6 A | 3.2 A | 12 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.161" T (17.50mm x 4.10mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
