PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-RX160/72-2-14PTC RESET FUSE 72V 1.6A RADIAL |
5,444 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.549" L x 0.122" W (13.94mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
|
MF-RX185/72-AP-14PTC RESET FUSE 72V 1.85A RADIAL |
7,516 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.598" L x 0.122" W (15.18mm x 3.10mm) | 0.785" (19.94mm) | - | 0.201" (5.10mm) |
|
|
MF-RX160/72-AP-14PTC RESET FUSE 72V 1.6A RADIAL |
3,248 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.549" L x 0.122" W (13.94mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT050-0-17PTC 0.5A 16V RADIAL LEADED HI-TE |
7,695 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT070-0-17PTC 0.7A 16V RADIAL LEADED HI-TE |
2,728 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 4 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.270" L x 0.118" W (6.86mm x 3.00mm) | 0.425" (10.80mm) | - | 0.201" (5.10mm) |
|

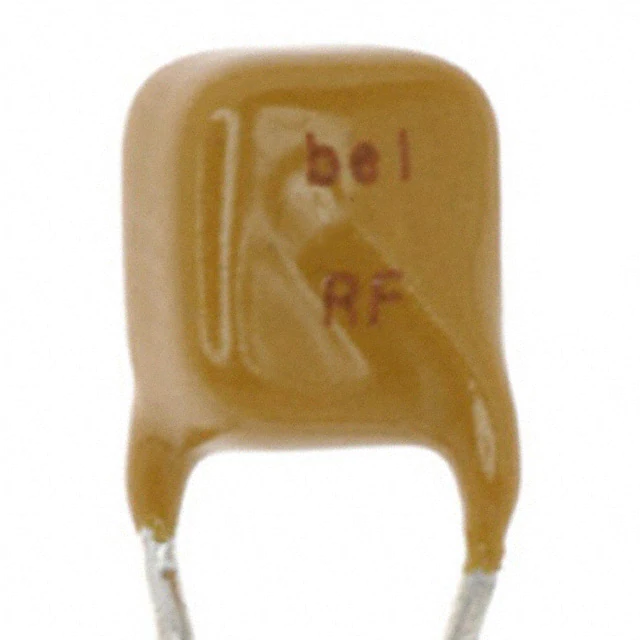

0ZRF0015FF2BPTC RESET FUSE 60V 150MA RADIAL |
4,557 |
|
Datasheet |
Radial, Disc | 0ZRF | Tape & Reel (TR) | Active | Polymeric | 60V | 150 mA | 580 mA | 3 A | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
|
BK16-1100-SZPTC RESET FUSE 16V 11A RAD |
4,601 |
|
Datasheet |
Radial, Disc | BK16 | Bulk | Active | Polymeric | 16V | 11 A | 22 A | 100 A | 7 s | 3 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.709" L x 0.122" W (18.00mm x 3.10mm) | 1.083" (27.50mm) | - | 0.413" (10.50mm) |
|
|
BK16-1000-SZPTC RESET FUSE 16V 10A RAD |
7,333 |
|
Datasheet |
Radial, Disc | BK16 | Bulk | Active | Polymeric | 16V | 10 A | 20 A | 100 A | 6 s | 4 mOhms | 11 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.709" L x 0.122" W (18.00mm x 3.10mm) | 1.083" (27.50mm) | - | 0.413" (10.50mm) |
|
PTR016V0090-TR1PTC RESET FUSE 16V 900MA RADIAL |
4,862 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.480" (12.20mm) | - | 0.197" (5.00mm) |
|
PTGL07BA0R9M1B51A0PTC RESET FUSE 0.9 OHM 110C |
8,313 |
|
Datasheet |
Radial, Disc | Posistor® | Tape & Box (TB) | Obsolete | Ceramic | - | - | - | - | - | - | - | 800 mOhms | - | - | - | - | Through Hole | - | - | - | - |
|
|
PTR016V0135-TR1PTC RESET FUSE 16V 1.35A RADIAL |
8,979 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.122" W (8.90mm x 3.10mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
PTR030V0160-TRPTC RESET FUSE 30V 1.6A RADIAL |
9,955 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.197" (5.00mm) |
|
|
PTR030V0185-TRPTC RESET FUSE 30V 1.85A RADIAL |
4,841 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
PTR060V0135-TRPTC RESET FUSE 60V 1.35A RADIAL |
8,341 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia x 0.118" T (14.50mm x 3.00mm) | 0.772" (19.60mm) | - | 0.197" (5.00mm) |
|
PTGL07AR8R2M3P51A0PTC RESET FUSE 56V 165MA RADIAL |
9,184 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 56V | 165 mA | 300 mA | 1 A | - | - | - | 8.2 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|

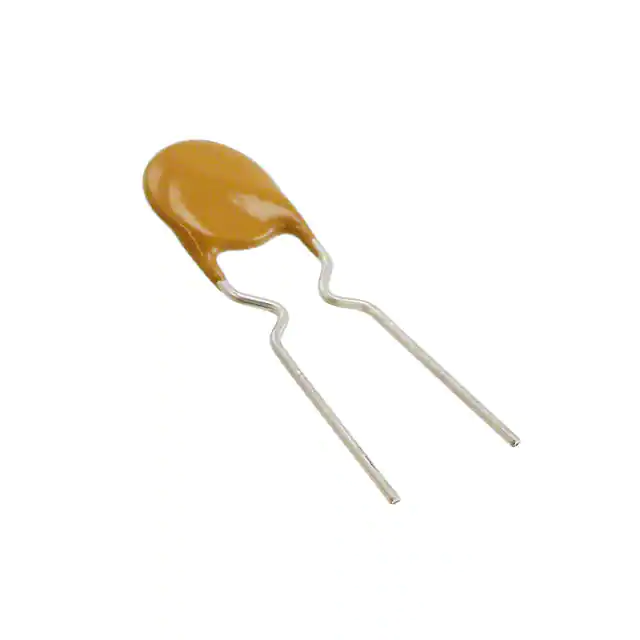

PFRA.040PTC RESET FUSE 60V 400MA RADIAL |
2,894 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
AGRF500S-1.0PTC RESET FUSE 16V 5A RADIAL |
8,919 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bulk | Obsolete | Polymeric | 16V | 5 A | 9.4 A | 100 A | 2.5 s | 14 mOhms | 34 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.200" (5.08mm) |
|
|
PTR016V0110-TR1PTC RESET FUSE 16V 1.1A RADIAL |
9,912 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.559" (14.20mm) | - | 0.197" (5.00mm) |
|
|
PTR060V0040-TR1PTC RESET FUSE 60V 400MA RADIAL |
4,806 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
PICOASMDCH020F-2PTC RESET FUSE 0.20A 16V 0805 |
8,296 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, picoASMD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 200 mA | 700 mA | 40 A | 100 ms | 750 mOhms | 3.4 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.031" (0.80mm) | - |
