PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFRX.110.2PTC RESET FUSE 60V 1.1A RADIAL |
9,954 |
|
Datasheet |
Radial, Disc | PFRX | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
RGEF500-0.178PTC RESET FUSE 16V 5A RADIAL |
2,287 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Bulk | Obsolete | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|
RUEF400K-0.138PTC RESET FUSE 30V 4A RADIAL |
3,574 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Obsolete | Polymeric | 30V | 4 A | 8 A | 100 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.839" (21.30mm) | - | 0.199" (5.05mm) |
|
PTGL07ARR47M1B51A0PTC RESET FUSE 16V 705MA RADIAL |
9,011 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 705 mA | 1.31 A | 5 A | - | - | - | 470 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.295" Dia x 0.138" T (7.50mm x 3.50mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
VTP170XSDDFPTC RESET FUSE 16V 1.7A STRAP |
8,333 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Discontinued at Digi-Key | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 5 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | - | - | - | - |
|
RHEF600SPTC RESET FUSE 16V 6A RADIAL |
4,631 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Obsolete | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.199" (5.05mm) |
|
CMF-RL35A-0PTC RESET FUSE 220V 75MA RADIAL |
4,155 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 75 mA | 150 mA | 3 A | 150 ms | - | - | 35 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
|
|
CMF-RL55-0PTC RESET FUSE 220V 65MA RADIAL |
4,885 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 65 mA | 150 mA | 3 A | 150 ms | - | - | 55 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.386" L x 0.197" W (9.80mm x 5.00mm) | 0.532" (13.50mm) | - | 0.200" (5.08mm) |
|
|
MF-SVS175-0PTC RESET FUSE 10V 1.75A STRAP |
9,961 |
|
Datasheet |
Strap | Multifuse®, MF-SVS | Bulk | Active | Polymeric | 10V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.669" L x 0.205" W (17.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
MF-VS175N-0PTC RESET FUSE 12V 1.75A STRAP |
9,151 |
|
Datasheet |
Strap | Multifuse®, MF-VS | Bulk | Active | Polymeric | 12V | 1.75 A | 3.5 A | 100 A | 3 s | 29 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | - | - | - | - |
|
|
12VL175XLUPTC RESET FUSE 12V 1.75A STRAP |
5,871 |
|
Datasheet |
Strap | POLY-FUSE®, VL | Bulk | Obsolete | Polymeric | 12V | 1.75 A | 4.2 A | 100 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.057" L x 0.146" W (26.85mm x 3.70mm) | - | 0.032" (0.80mm) | - |
|
|
12VL230UPTC RESET FUSE 12V 2.3A STRAP |
7,904 |
|
Datasheet |
Strap | POLY-FUSE®, VL | Bulk | Obsolete | Polymeric | 12V | 2.3 A | 5 A | 100 A | 5 s | 12 mOhms | 36 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.201" W (22.00mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|
|
SMD1210P110TFAPTC RESET FUSE 6V 1.1A 1210 |
3,906 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, SMD1210 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.043" (1.10mm) | - |
|
16R600GPRPTC RESET FUSE 16V 6A RADIAL |
9,818 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Tape & Box (TB) | Obsolete | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
|
16R600GDRPTC RESET FUSE 16V 6A RADIAL |
3,373 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Cut Tape (CT) | Obsolete | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
|
PTGL9SARR33M1B51B0PTC RESET FUSE 16V 875MA RADIAL |
9,410 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 875 mA | 1.625 A | 7 A | - | - | - | 330 mOhms | -30°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
PTR060V0010-TR1PTC RESET FUSE 60V 100MA RADIAL |
2,935 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.197" (5.00mm) |
|

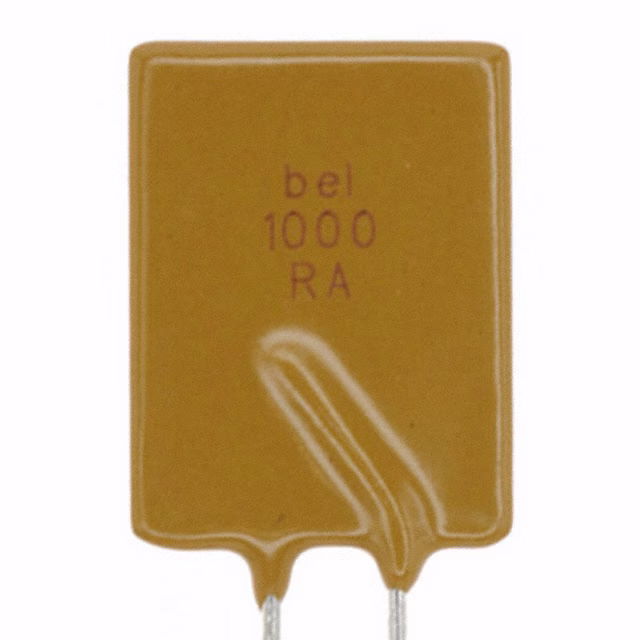

0ZRA1000FF1APTC RESET FUSE 16V 10A RADIAL |
8,442 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 12.5 s | 3 mOhms | 12 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
PTGL07BD330N3B51B0PTC RESET FUSE 32V 60MA RADIAL |
7,406 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 32V | 60 mA | 135 mA | 1.5 A | - | - | - | 33 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
|
PTGL05AR301M7N52A0FD |
9,704 |
|
- |
Radial, Disc | POSISTOR®, PTGL | Bulk | Active | Ceramic | 160V | 22 mA | 55 mA | 300 mA | - | 240 Ohms | 360 Ohms | 300 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | - |
