PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTEF120-2PTC RESET FUSE 33V 1.2A RADIAL |
5,620 |
|
- |
Radial, Disc | PolySwitch® | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.2 A | 2.3 A | 40 A | 3.5 s | 74 mOhms | 180 mOhms | - | - | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
MF-SM100-2-006PTC RESET FUSE 30V 1.1A 2SMD |
3,595 |
|
Datasheet |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 1.1 A | 2.2 A | 80 A | 500 ms | 120 mOhms | 480 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
0ZCA0075FF2GPTC RESET FUSE 6V 750MA 1206 |
7,115 |
|
Datasheet |
1206 (3216 Metric), Concave | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
RXEF110-1PTC RESET FUSE 72V 1.1A RADIAL |
6,792 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 250 mOhms | - | - | - | - | - | Through Hole | 0.504" Dia x 0.118" T (12.80mm x 3.00mm) | 0.689" (17.50mm) | - | 0.200" (5.08mm) |
|
RUEF110-1PTC RESET FUSE 30V 1.1A RADIAL |
2,617 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Obsolete | Polymeric | 30V | 1.1 A | 2.2 A | 100 A | 6.6 s | 70 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.199" (5.05mm) |
|
|
0ZRB0400FA1APTC RESET FUSE |
6,706 |
|
- |
Radial, Disc | 0ZRB | Bulk | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
0ZRM0010FF2CPTC RESET FUSE 120V 100MA RADIAL |
7,681 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 100 mA | 200 mA | 2 A | 10 s | 3 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

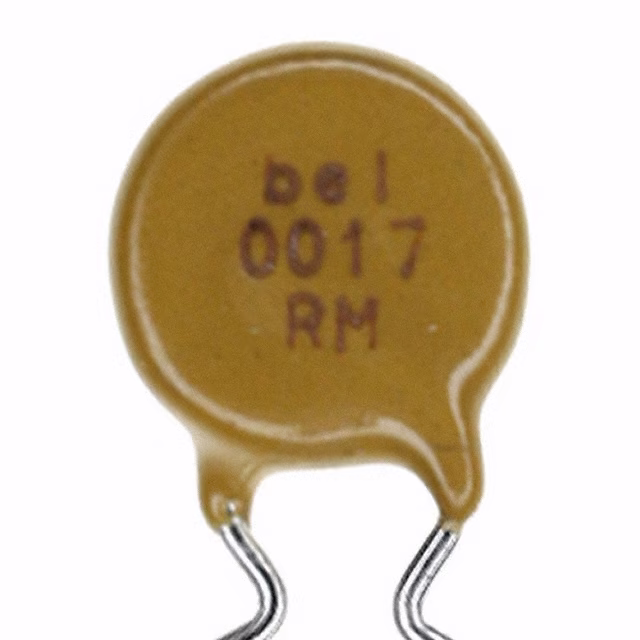

0ZRM0017FF2CPTC RESET FUSE 120V 170MA RADIAL |
8,289 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 170 mA | 340 mA | 2 A | 10 s | 2 Ohms | 7 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

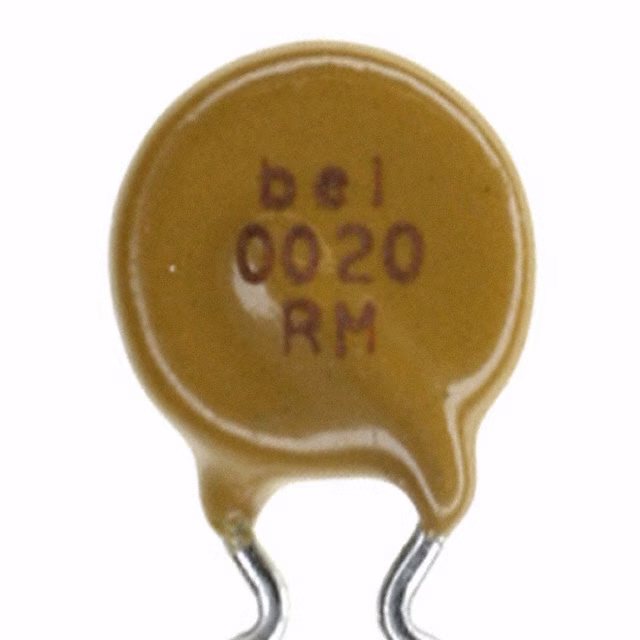

0ZRM0020FF2CPTC RESET FUSE 120V 200MA RADIAL |
8,401 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 200 mA | 400 mA | 2 A | 9 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
0ZRM0025FF2CPTC RESET FUSE 120V 250MA RADIAL |
7,137 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 250 mA | 500 mA | 3 A | 7.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
PRG18BB221MS1RBPTC RESET FUSE 16V 14MA 0603 |
8,482 |
|
Datasheet |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 16V | 14 mA | 29 mA | 90 mA | - | - | - | 220 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
|
PRG18BB470MS1RBPTC RESET FUSE 16V 29MA 0603 |
3,002 |
|
Datasheet |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 16V | 29 mA | 61 mA | 420 mA | - | - | - | 47 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
|
PRG18BB471MS1RBPTC RESET FUSE 16V 10MA 0603 |
3,565 |
|
Datasheet |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 16V | 10 mA | 21 mA | 40 mA | - | - | - | 470 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
1812L050ZRTPTC RESET FUSE 15V 500MA 1812 |
6,819 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|
|
1812L075ZRPTC RESET FUSE 13.2V 75MA 1812 |
5,402 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 75 mA | 1.5 A | 100 A | 200 ms | 100 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|
|
1812L110ZRPTC RESET FUSE 8V 1.1A 1812 |
4,552 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.71mm) | - |
|
|
1812L125ZRPTC RESET FUSE 1.25A 1812 |
4,554 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | - | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
|
1812L150ZRTPTC RESET FUSE 8V 1.25A 1812 |
7,114 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.25 A | 3 A | 100 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
|
1812L160ZRTPTC RESET FUSE 8V 1.6A 1812 |
3,909 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.6 A | 2.8 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|
1210L500SLTH-VYRPTC RESET FUSE 6V 5A 1210 |
4,205 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 5 A | 10 A | 50 A | - | - | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.031" (0.80mm) | - |
