PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR016V0120-TRPTC RESET FUSE 16V 1.2A RADIAL |
2,220 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.2 A | 2.4 A | 40 A | 500 ms | 65 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - |
|
0ZRR0065FF2EPTC RESET FUSE 60V 650MA RADIAL |
9,349 |
|
Datasheet |
Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
0ZRR0075FF2EPTC RESET FUSE 60V 750MA RADIAL |
6,085 |
|
Datasheet |
Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|

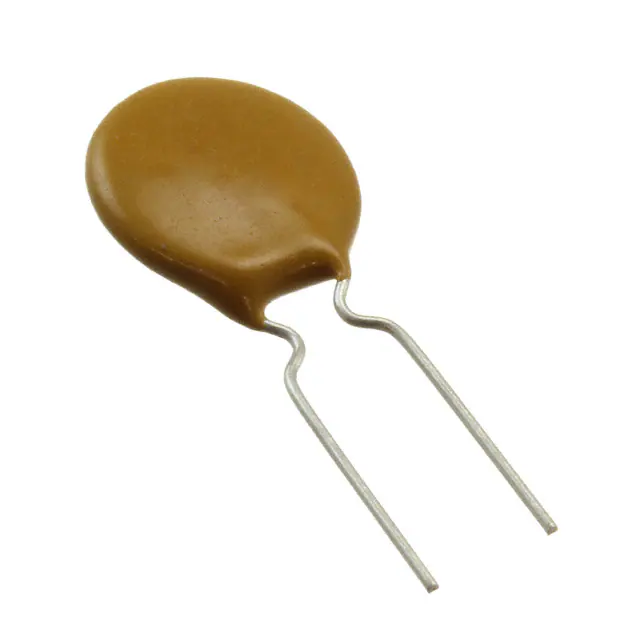

0ZRR0090FF2EPTC RESET FUSE 60V 900MA RADIAL |
8,381 |
|
Datasheet |
Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
|
BK250-180-DZPTC RESET FUSE 250V 180MA RAD |
5,650 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 180 mA | 540 mA | 10 A | 15 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.413" Dia x 0.181" T (10.50mm x 4.60mm) | 0.728" (18.50mm) | - | 0.201" (5.10mm) |
|
|
BK250-180-SYPTC RESET FUSE 250V 180MA RAD |
9,106 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 180 mA | 540 mA | 10 A | 15 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.413" L x 0.181" W (10.50mm x 4.60mm) | 0.728" (18.50mm) | - | 0.201" (5.10mm) |
|
|
BK250-180-SZPTC RESET FUSE 250V 180MA RAD |
2,582 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 180 mA | 540 mA | 10 A | 15 s | 3 Ohms | 10 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.413" L x 0.181" W (10.50mm x 4.60mm) | 0.728" (18.50mm) | - | 0.201" (5.10mm) |
|
|
SMD2920P200TSAPTC RESET FUSE 15V 2A 2920 |
7,593 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 2 A | 4 A | 40 A | 5 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2920P185TSAPTC RESET FUSE 33V 1.85A 2920 |
4,219 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 65 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
PTS08059V010PTC RESET FUSE 9V 100MA 0805 |
4,317 |
|
Datasheet |
0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 9V | 100 mA | - | 100 A | - | - | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
SMD1210P110TSAPTC RESET FUSE 6V 1.1A 1210 |
6,926 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, SMD1210 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.043" (1.10mm) | - |
|
0ZRP0050FF2EPTC RESET FUSE 60V 500MA RADIAL |
3,683 |
|
Datasheet |
Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 800 ms | 320 mOhms | 900 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.140" W (7.10mm x 3.56mm) | 0.450" (11.43mm) | - | 0.201" (5.10mm) |
|
0ZRP0065FF2EPTC RESET FUSE 60V 650MA RADIAL |
3,635 |
|
Datasheet |
Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 1 s | 250 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.140" W (7.11mm x 3.56mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
0ZRC0135FF2BPTC RESET FUSE 90V 1.35A RADIAL |
5,128 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.571" L x 0.122" W (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
|
PFMD.200.2PTC RESET FUSE 6V 2A 1812 |
4,733 |
|
Datasheet |
1812 (4532 Metric) | PFMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2 A | 4 A | 100 A | 3 s | 20 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.121" W (4.55mm x 3.07mm) | - | 0.033" (0.85mm) | - |
|
0ZRG0250FF2EPTC RESET FUSE 30V 2.5A RADIAL |
6,284 |
|
Datasheet |
Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 40 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
RF4525-000NANOASMDC025F-2 |
7,222 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch® ASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 250 mA | 580 mA | 100 A | 10 ms | 400 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.032" (0.82mm) | - |
|
0ZRA0500FF2DPTC RESET FUSE 16V 5A RADIAL |
7,257 |
|
Datasheet |
Radial, Disc | 0ZRA | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 3.6 s | 14 mOhms | 44 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
|
SMD1210P150TSAPTC RESET FUSE 6V 1.5A 1210 |
4,622 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, SMD1210 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 40 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.051" (1.30mm) | - |
|
|
SMD1812P010TSAPTC RESET FUSE 30V 100MA 1812 |
7,337 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, SMD1812 | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 100 mA | 300 mA | 10 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
