Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

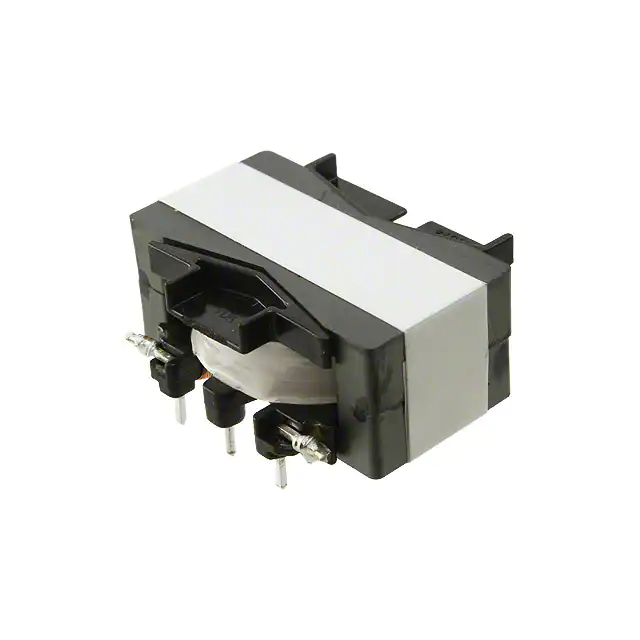

PFC3514QM-231K06B-00CHOKE COMMON MODE |
2,694 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 230 µH | ±10% | 5.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.610" (15.50mm) |
|
PL8142FIXED IND 72.9UH 2.6A 133MOHM SM |
3,718 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 72.9 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
PL8142NLFIXED IND 72.9UH 2.6A 133MOHM SM |
1,507 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 72.9 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
M1331-223KFIXED IND 22UH 96MA 4.9 OHM SMD |
3,384 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 22 µH | ±10% | 96 mA | 96mA | Shielded | 4.9Ohm Max | 40 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
AMDLA2213S-1R5MTFIXED IND 1.5UH 57A 1.15MOHM SMD |
3,399 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 57 A | 48A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213S-3R0MTFIXED IND 3UH 48A 1.64 MOHM SMD |
1,841 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3 µH | ±20% | 48 A | 39A | Shielded | 1.64mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213S-750MTFIXED IND 75UH 11A 31.6MOHM SMD |
2,009 |
|
Datasheet |
AMDLA2213S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 75 µH | ±20% | 11 A | 8.5A | Shielded | 31.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
059KM5002HLFHORIZONTAL TOROIDAL INDUCTOR |
3,524 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 6.9 A | 5.7A | Shielded | 22mOhm Max | - | 4MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
|
059KM5002HHORIZONTAL TOROIDAL INDUCTOR |
2,591 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 6.9 A | 5.7A | Shielded | 22mOhm Max | - | 4MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
|
PT250-1200HMFIXED IND 250UH 3.8A 130 MOHM TH |
1,384 |
|
Datasheet |
PT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±15% | 3.8 A | - | Shielded | 130mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.200" Dia (30.48mm) | 0.550" (13.97mm) |
|
|
PT250-1500HMFIXED IND 250UH 6.1A 80 MOHM TH |
2,148 |
|
Datasheet |
PT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±15% | 6.1 A | - | Shielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 0.600" (15.24mm) |
|
|
PT250-1800HMFIXED IND 250UH 9.1A 55 MOHM TH |
1,587 |
|
Datasheet |
PT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±15% | 9.1 A | - | Shielded | 55mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.800" Dia (45.72mm) | 0.770" (19.56mm) |
|
|
PT250R-1200HMFIXED IND 250UH 3.8A 130 MOHM TH |
4,494 |
|
Datasheet |
PTR | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 250 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.200" Dia (30.48mm) | 0.550" (13.97mm) |
|
|
PT250R-1500HMFIXED IND 250UH 6.1A 80 MOHM TH |
4,710 |
|
Datasheet |
PTR | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 250 µH | ±15% | 6.1 A | - | Unshielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 0.600" (15.24mm) |
|
|
PT250R-1800HMFIXED IND 250UH 9.1A 55 MOHM TH |
1,068 |
|
Datasheet |
PTR | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 250 µH | ±15% | 9.1 A | - | Unshielded | 55mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.800" Dia (45.72mm) | 0.770" (19.56mm) |
|
|
SMRF1512-223MWW EPOXY COATED CHIP INDUCTOR |
2,212 |
|
Datasheet |
SMRF1512 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 220 µH | ±20% | 45 mA | - | Unshielded | 24Ohm Max | 40 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.155" L x 0.125" W (3.94mm x 3.18mm) | 0.140" (3.56mm) |
|
|
CPRX2520H-1R0MCHIGH CURRENT THT POWER INDUCTOR |
2,856 |
|
Datasheet |
CPRX2520H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 1 µH | ±20% | 75 A | 260A | Shielded | 0.42mOhm Max | - | - | - | -55°C ~ 155°C | - | High Current | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) | |
|
|
CPRX2520H-4R7MCHIGH CURRENT THT POWER INDUCTOR |
2,643 |
|
Datasheet |
CPRX2520H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 44 A | 118A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 155°C | - | High Saturation | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) | |
|
|
CPRX2520H-2R7MCHIGH CURRENT THT POWER INDUCTOR |
3,647 |
|
Datasheet |
CPRX2520H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 2.7 µH | ±20% | 53 A | 150A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 155°C | - | High Current | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) | |
|
|
CPRX2520H-3R6MCHIGH CURRENT THT POWER INDUCTOR |
1,308 |
|
Datasheet |
CPRX2520H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 3.6 µH | ±20% | 47 A | 130A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 155°C | - | High Saturation | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
