Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMP3316-221MMOLDED UNSHIELDED INDUCTOR |
3,382 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 7.6 A | 7.8A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-331MLFMOLDED UNSHIELDED INDUCTOR |
2,741 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.5 A | 7A | Unshielded | 12.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-681MMOLDED UNSHIELDED INDUCTOR |
2,561 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 5 A | 5A | Unshielded | 20.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-471MLFMOLDED UNSHIELDED INDUCTOR |
3,581 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.6 A | 5.6A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-471MMOLDED UNSHIELDED INDUCTOR |
1,221 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.6 A | 5.6A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
PT250-1200FIXED IND 250UH 3.8A 130 MOHM TH |
2,364 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±15% | 3.8 A | - | Shielded | 130mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.200" Dia x 0.550" W (30.48mm x 13.97mm) | - |
|
|
PT250-1500FIXED IND 250UH 6.1A 80 MOHM TH |
3,156 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±15% | 6.1 A | - | Shielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 0.600" W (38.10mm x 15.24mm) | - |
|
|
PT250-1800FIXED IND 250UH 9.1A 55 MOHM TH |
3,691 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±15% | 9.1 A | - | Shielded | 55mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.800" Dia x 0.770" W (45.72mm x 19.56mm) | - |
|
|
PT250R-1200FIXED IND 250UH 3.8A 130 MOHM TH |
3,985 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 250 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.200" Dia x 0.550" W (30.48mm x 13.97mm) | - |
|
|
PT250R-1500FIXED IND 250UH 6.1A 80 MOHM TH |
3,855 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 250 µH | ±15% | 6.1 A | - | Unshielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 0.600" W (38.10mm x 15.24mm) | - |
|
|
PT250R-1800FIXED IND 250UH 9.1A 55 MOHM TH |
2,318 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 250 µH | ±15% | 9.1 A | - | Unshielded | 55mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.800" Dia x 0.770" W (45.72mm x 19.56mm) | - |
|
M27/367-03FIXED IND 330NH 6.5A 9 MOHM SMD |
3,026 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 6.5 A | 6.5A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-05FIXED IND 470NH 6A 10 MOHM SMD |
3,179 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±15% | 6 A | 6A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-06FIXED IND 560NH 5.8A 10.5MOHM SM |
1,815 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 nH | ±15% | 5.8 A | 5.8A | Unshielded | 10.5mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-07FIXED IND 680NH 5.7A 11 MOHM SMD |
2,538 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±15% | 5.7 A | 5.7A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|

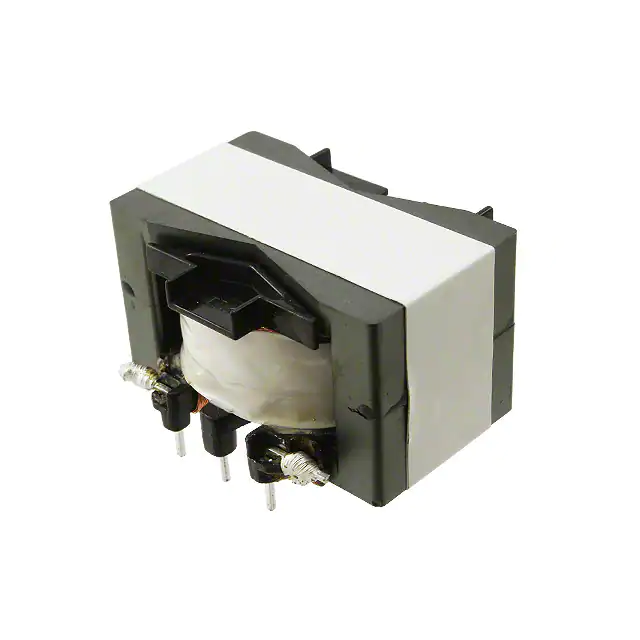

PFC4124QM-181K09D-00CHOKE COMMON MODE |
2,246 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 8.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.693" L x 1.496" W (43.00mm x 38.00mm) | 0.984" (25.00mm) |
|

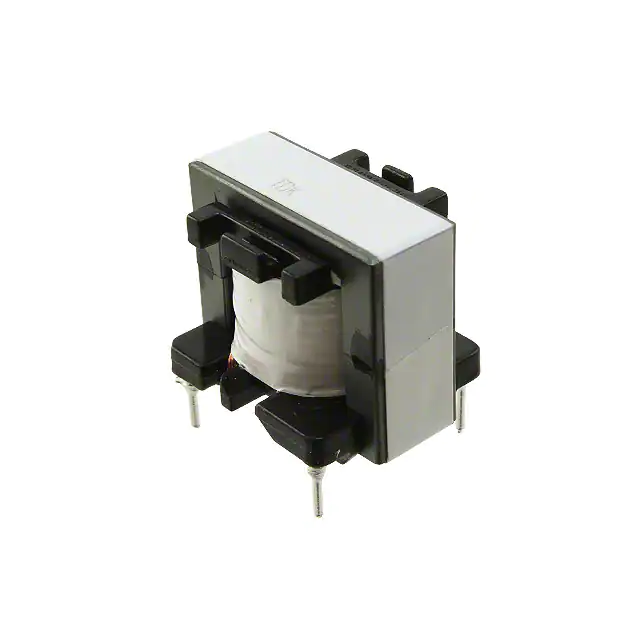

PFC2723ER-601K02B-00CHOKE COMMON MODE |
2,615 |
|
Datasheet |
PFC | Radial, Horizontal, 5 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.4 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.142" L x 0.984" W (29.00mm x 25.00mm) | 1.024" (26.00mm) |
|
|
PL9229NLTFIXED IND 560UH 530MA 1.623 OHM |
1,340 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 530 mA | 540mA | Shielded | 1.623Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PFC3514QM-351K04B-00CHOKE COMMON MODE |
1,854 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 350 µH | ±10% | 3.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.610" (15.50mm) |
|
|
PFC3514QM-281K05B-00CHOKE COMMON MODE |
4,251 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 280 µH | ±10% | 4.6 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.610" (15.50mm) |
