Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1140-470K-RCIND1.15X1.5X1.03IN,47UH10%12.3A, |
4,483 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 12.3 A | 30.6A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
CSCF2014B-470MCSUPER HIGH CURRENT POWER INDUCTO |
4,557 |
|
Datasheet |
CSCF2014B | 3-SMD | Active | Wirewound | Ferrite | 47 µH | ±20% | 6 A | 7.5A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.819" L x 0.721" W (21.00mm x 18.50mm) | 0.571" (14.50mm) | |
|
|
CSCF2014B-330MCSUPER HIGH CURRENT POWER INDUCTO |
4,334 |
|
Datasheet |
CSCF2014B | 3-SMD | Active | Wirewound | Ferrite | 33 µH | ±20% | 7.5 A | 9.5A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.819" L x 0.721" W (21.00mm x 18.50mm) | 0.571" (14.50mm) | |
|
|
CSCF2014B-150MCSUPER HIGH CURRENT POWER INDUCTO |
3,003 |
|
Datasheet |
CSCF2014B | 3-SMD | Active | Wirewound | Ferrite | 15 µH | ±20% | 11 A | 18A | Shielded | 12.7mOhm Max | - | - | - | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.819" L x 0.721" W (21.00mm x 18.50mm) | 0.571" (14.50mm) | |
|
|
CSCF2014B-100MCSUPER HIGH CURRENT POWER INDUCTO |
1,011 |
|
Datasheet |
CSCF2014B | 3-SMD | Active | Wirewound | Ferrite | 10 µH | ±20% | 11 A | 25.5A | Shielded | 12.7mOhm Max | - | - | - | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.819" L x 0.721" W (21.00mm x 18.50mm) | 0.571" (14.50mm) | |
|
|
CSCF2014B-220MCSUPER HIGH CURRENT POWER INDUCTO |
3,048 |
|
Datasheet |
CSCF2014B | 3-SMD | Active | Wirewound | Ferrite | 22 µH | ±20% | 9.5 A | 14.5A | Shielded | 16.8mOhm Max | - | - | - | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.819" L x 0.721" W (21.00mm x 18.50mm) | 0.571" (14.50mm) | |
|

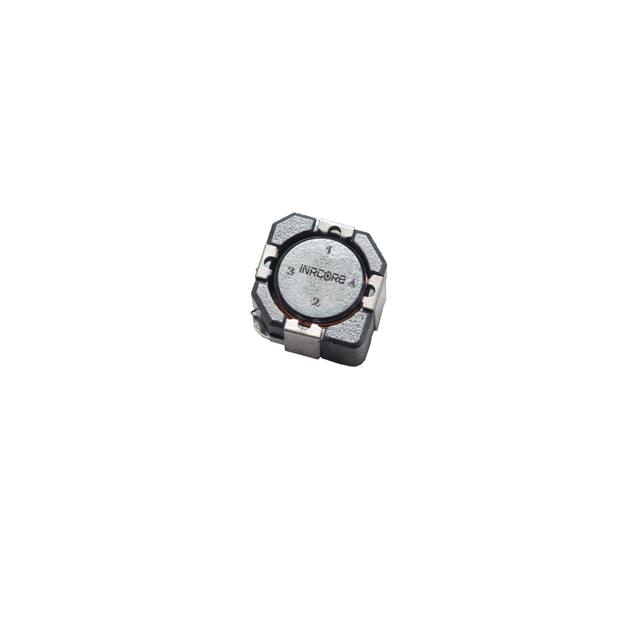

PL9219TFIXED IND 82UH 1.36A 232MOHM SMD |
3,206 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 1.36 A | 1.4A | Shielded | 232mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9220TFIXED IND 100UH 1.29A 270MOHM SM |
1,887 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.29 A | 1.3A | Shielded | 270mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
HCT-441FIXED IND 2.8UH 15.6A 3.6MOHM SM |
2,816 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 2.8 µH | ±25% | 15.6 A | - | Shielded | 3.6mOhm Max | 33 @ 100kHz | 110MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|
|
HCT-442FIXED IND 4.2UH 12.8A 5.4MOHM SM |
3,419 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 4.2 µH | ±25% | 12.8 A | - | Shielded | 5.4mOhm Max | 29 @ 100kHz | 85MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|
|
HCT-443FIXED IND 5.7UH 10.9A 7.5MOHM SM |
3,647 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 5.7 µH | ±25% | 10.9 A | - | Shielded | 7.5mOhm Max | 29 @ 100kHz | 65MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|
|
HCT-444FIXED IND 9UH 8.87A 11.4MOHM SMD |
2,980 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 9 µH | ±25% | 8.87 A | - | Shielded | 11.4mOhm Max | 26 @ 100kHz | 55MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.89mm x 16.89mm) | 0.400" (10.16mm) |
|
|
HCT-501FIXED IND 6.5UH 12A 6.6 MOHM SMD |
2,957 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 6.5 µH | ±25% | 12 A | - | Shielded | 6.6mOhm Max | 25 @ 100kHz | 55MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|
|
HCT-502FIXED IND 8.4UH 10.8A 8.3MOHM SM |
4,848 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 8.4 µH | ±25% | 10.8 A | - | Shielded | 8.3mOhm Max | 23 @ 100kHz | 45MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|
|
HCT-503FIXED IND 12.5UH 9.25A 11.4 MOHM |
2,369 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 12.5 µH | ±25% | 9.25 A | - | Shielded | 11.4mOhm Max | 23 @ 100kHz | 35MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|
|
HCT-504FIXED IND 17UH 7.58A 17 MOHM SMD |
4,303 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 17 µH | ±25% | 7.58 A | - | Shielded | 17mOhm Max | 22 @ 100kHz | 29MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.400" (10.16mm) |
|
|
HCT-681FIXED IND 10.5UH 13.2A 6.2 MOHM |
1,406 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 10.5 µH | ±25% | 13.2 A | - | Shielded | 6.2mOhm Max | 35 @ 100kHz | 6.2MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.945" W (24.00mm x 24.00mm) | 0.400" (10.16mm) |
|
|
HCT-682FIXED IND 17.6UH 9.32A 12.3 MOHM |
1,122 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 17.6 µH | ±25% | 9.32 A | - | Shielded | 12.3mOhm Max | 35 @ 100kHz | 24MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.945" W (24.00mm x 24.00mm) | 0.400" (10.16mm) |
|
|
HCT-683FIXED IND 22UH 7.87A 17.5MOHM SM |
4,394 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±25% | 7.87 A | - | Shielded | 17.5mOhm Max | 30 @ 100kHz | 21MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.945" W (24.00mm x 24.00mm) | 0.400" (10.16mm) |
|
|
HCT-684FIXED IND 29UH 6.57A 25 MOHM SMD |
1,605 |
|
Datasheet |
HCT | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 29 µH | ±25% | 6.57 A | - | Shielded | 25mOhm Max | 30 @ 100kHz | 16MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.945" W (24.00mm x 24.00mm) | 0.400" (10.16mm) |
