Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1707-330-RFIXED IND 33UH 9A 37 MOHM SMD |
1,350 |
|
Datasheet |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 9 A | 10A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-470-RFIXED IND 47UH 6.8A 47 MOHM SMD |
1,753 |
|
Datasheet |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±20% | 6.8 A | 7.5A | Shielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-4R7-RFIXED IND 4.7UH 27A 4.72MOHM SMD |
3,714 |
|
Datasheet |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 27 A | 24A | Shielded | 4.72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-6R8-RFIXED IND 6.8UH 20A 7.55MOHM SMD |
4,310 |
|
Datasheet |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 20 A | 22A | Shielded | 7.55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
SWS-5.0-50FIXED IND 52UH 5A 25 MOHM SMD |
1,407 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 52 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.063" W (30.99mm x 27.00mm) | 0.510" (12.95mm) |
|
SH260S-5.0-50FIXED IND 52UH 5A 25 MOHM SMD |
1,109 |
|
Datasheet |
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 52 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8405NLTFIXED IND 4UH 22.4A 3.4 MOHM SMD |
4,325 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.280" L x 1.070" W (32.51mm x 27.18mm) | 0.510" (12.95mm) |
|
PL8405TFIXED IND 4UH 22.4A 3.4 MOHM SMD |
1,296 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.280" L x 1.070" W (32.51mm x 27.18mm) | 0.510" (12.95mm) |
|
CTH8RF-220K22UH RADIAL PWR LINE INDUCTOR |
1,879 |
|
Datasheet |
CTH8RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 22 µH | ±10% | 4 A | 6.1A | Unshielded | 30mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.469" Dia (11.90mm) | 0.917" (23.30mm) |
|
|
PL8905NLTFIXED IND 4.7UH 7.3A 9.5MOHM SMD |
4,508 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 7.3 A | 8.2A | Shielded | 9.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8907NLTFIXED IND 7.6UH 5.5A 18.5MOHM SM |
1,652 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.6 µH | ±30% | 5.5 A | 6.2A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL9103NLTFIXED IND 2.7UH 7.8A 7.8MOHM SMD |
1,738 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 7.8 A | 8.4A | Shielded | 7.8mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9107NLTFIXED IND 8.2UH 5A 20 MOHM SMD |
2,734 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±30% | 5 A | 5.1A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9109NLTFIXED IND 12UH 4.2A 27 MOHM SMD |
3,455 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4.2 A | 4.2A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9110NLTFIXED IND 15UH 3.6A 30 MOHM SMD |
4,075 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.6 A | 3.6A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9110TFIXED IND 15UH 3.6A 30 MOHM SMD |
1,008 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.6 A | 3.6A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9114NLTFIXED IND 33UH 2.5A 70 MOHM SMD |
3,816 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.5 A | 2.5A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9115NLTFIXED IND 39UH 2.4A 75 MOHM SMD |
3,059 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2.4 A | 2.4A | Shielded | 75mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|

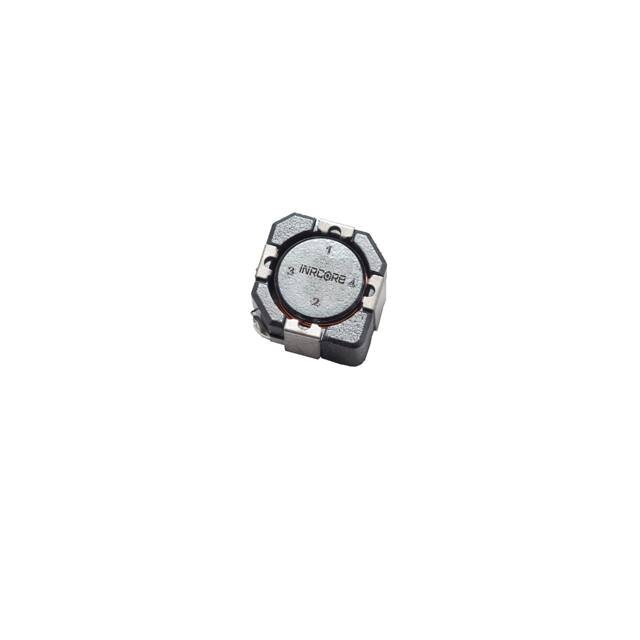

PL9115TFIXED IND 39UH 2.4A 75 MOHM SMD |
2,846 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2.4 A | 2.4A | Shielded | 75mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9116NLTFIXED IND 47UH 2.2A 100 MOHM SMD |
4,052 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.2 A | 2.2A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
