Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1494.532NLFIXED IND 5.34UH 11A 1.8MOHM SMD |
1,531 |
|
Datasheet |
PA1494NL | Nonstandard | Tray | Active | Planar | - | 5.34 µH | ±15% | 11 A | 13A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PL9208TFIXED IND 10UH 3.6A 35 MOHM SMD |
1,735 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.6 A | 4A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
2150-00GFIXED IND 470NH 2.27A 60 MOHM TH |
3,081 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±2% | 2.27 A | - | Unshielded | 60mOhm Max | 65 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-01GFIXED IND 560NH 2.1A 70 MOHM TH |
1,203 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±2% | 2.1 A | - | Unshielded | 70mOhm Max | 65 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-02GFIXED IND 680NH 1.96A 80 MOHM TH |
3,771 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±2% | 1.96 A | - | Unshielded | 80mOhm Max | 65 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-03GFIXED IND 820NH 1.67A 110MOHM TH |
2,248 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±2% | 1.67 A | - | Unshielded | 110mOhm Max | 65 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-04GFIXED IND 1UH 1.48A 140 MOHM TH |
2,926 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±2% | 1.48 A | - | Unshielded | 140mOhm Max | 65 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-05GFIXED IND 1.2UH 1.27A 190MOHM TH |
2,888 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±2% | 1.27 A | - | Unshielded | 190mOhm Max | 40 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-06GFIXED IND 1.5UH 1.05A 280MOHM TH |
4,661 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±2% | 1.05 A | - | Unshielded | 280mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-07GFIXED IND 1.8UH 915MA 370MOHM TH |
1,643 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±2% | 915 mA | - | Unshielded | 370mOhm Max | 40 @ 7.9MHz | 150MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-08GFIXED IND 2.2UH 785MA 500MOHM TH |
1,230 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±2% | 785 mA | - | Unshielded | 500mOhm Max | 40 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-10GFIXED IND 2.7UH 690MA 650MOHM TH |
4,223 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±2% | 690 mA | - | Unshielded | 650mOhm Max | 40 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-12GFIXED IND 3.3UH 555MA 1 OHM TH |
4,427 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.3 µH | ±2% | 555 mA | - | Unshielded | 1Ohm Max | 40 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-14GFIXED IND 3.9UH 505MA 1.2 OHM TH |
4,465 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.9 µH | ±2% | 505 mA | - | Unshielded | 1.2Ohm Max | 40 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-16GFIXED IND 4.7UH 415MA 1.8 OHM TH |
4,045 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±2% | 415 mA | - | Unshielded | 1.8Ohm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|

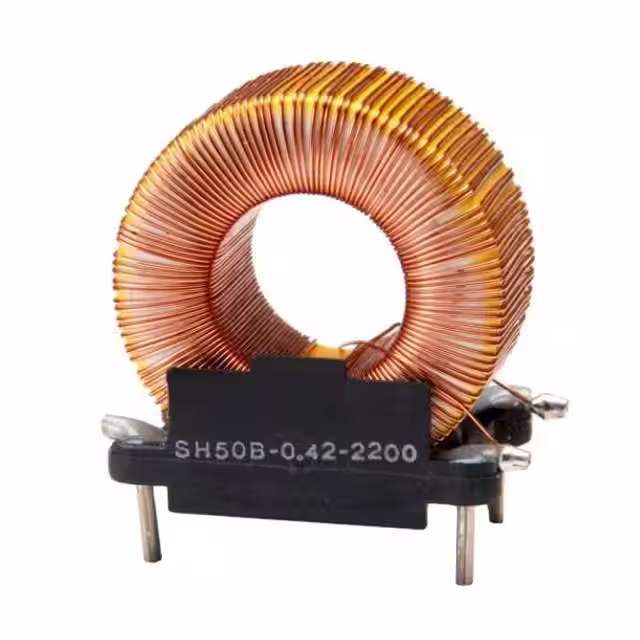

SH50B-0.42-2200FIXED IND 2.2MH 420MA 1.8 OHM TH |
1,831 |
|
Datasheet |
SH50 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Iron Powder | 2.2 mH | ±20% | 420 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
SWS-2.24-37FIXED IND 37UH 2.24A 100MOHM SMD |
4,019 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 37 µH | ±20% | 2.24 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|
ER1537-04LRFIXED IND 330NH 1.4A 90 MOHM TH |
1,604 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 330 nH | ±10% | 1.4 A | - | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
2500R-56HFIXED IND 3.9MH 62MA 44 OHM TH |
2,963 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.9 mH | ±3% | 62 mA | - | Unshielded | 44Ohm Max | 80 @ 250kHz | 1.45MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-58HFIXED IND 4.3MH 60MA 46 OHM TH |
1,003 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.3 mH | ±3% | 60 mA | - | Unshielded | 46Ohm Max | 80 @ 250kHz | 1.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
