Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIL1330-72KFIXED IND 150UH 61MA 15 OHM SMD |
2,662 |
|
Datasheet |
MIL1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±10% | 61 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1330-74KFIXED IND 180UH 57MA 17 OHM SMD |
2,723 |
|
Datasheet |
MIL1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±10% | 57 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1330-76KFIXED IND 220UH 52MA 21 OHM SMD |
4,630 |
|
Datasheet |
MIL1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±10% | 52 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
SH50B-0.62-1500FIXED IND 1.5MH 620MA 1 OHM TH |
1,982 |
|
Datasheet |
SH50 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Iron Powder | 1.5 mH | ±20% | 620 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
|
GA40-563KLFHIGH CURRENT AXIAL POWER CHOKE |
3,018 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 µH | ±10% | 1.041 mA | 1.17A | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA40-823KHIGH CURRENT AXIAL POWER CHOKE |
4,147 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 820 µH | ±10% | 833 µA | 970mA | Unshielded | 655mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA40-683KHIGH CURRENT AXIAL POWER CHOKE |
2,681 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±10% | 911 µA | 1.05A | Unshielded | 548mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-473KLFHIGH CURRENT AXIAL POWER CHOKE |
3,964 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 470 µH | ±10% | 1.094 A | 460mA | Unshielded | 380mOhm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-683KHIGH CURRENT AXIAL POWER CHOKE |
2,777 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 680 µH | ±10% | 911 mA | 390mA | Unshielded | 548mOhm Max | - | 800kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-473KHIGH CURRENT AXIAL POWER CHOKE |
4,992 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 470 µH | ±10% | 1.094 A | 460mA | Unshielded | 380mOhm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA40-473KHIGH CURRENT AXIAL POWER CHOKE |
3,631 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±10% | 1.094 mA | 1.24A | Unshielded | 380mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-563KHIGH CURRENT AXIAL POWER CHOKE |
2,181 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 560 µH | ±10% | 1.041 A | 430mA | Unshielded | 420mOhm Max | - | 900kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA40-563KHIGH CURRENT AXIAL POWER CHOKE |
3,010 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 µH | ±10% | 1.041 mA | 1.17A | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-823KHIGH CURRENT AXIAL POWER CHOKE |
3,510 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 820 µH | ±10% | 871 mA | 350mA | Unshielded | 600mOhm Max | - | 720kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|

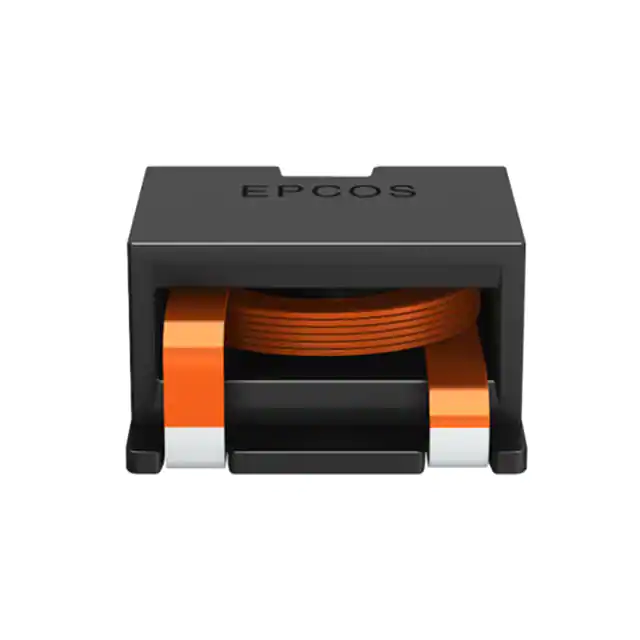

B82559A0303A016FIXED IND 30UH 8.5A 16.5MOHM SMD |
3,519 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 30 µH | ±10% | 8.5 A | 9.2A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.445" (11.30mm) |
|
AMDLA2213Q-230MTFIXED IND 23UH 18A 11 MOHM SMD |
2,065 |
|
Datasheet |
AMDLA2213Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 23 µH | ±20% | 18 A | 14A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213Q-330MTFIXED IND 33UH 16A 15.4 MOHM SMD |
2,769 |
|
Datasheet |
AMDLA2213Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 16 A | 10.5A | Shielded | 15.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213Q-1R5MTFIXED IND 1.5UH 57A 1.15MOHM SMD |
2,649 |
|
Datasheet |
AMDLA2213Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 57 A | 48A | Shielded | 1.15mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213Q-470MTFIXED IND 47UH 14A 20.8 MOHM SMD |
3,940 |
|
Datasheet |
AMDLA2213Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 14 A | 10A | Shielded | 20.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
AMDLA2213Q-3R0MTFIXED IND 3UH 48A 1.64 MOHM SMD |
2,754 |
|
Datasheet |
AMDLA2213Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3 µH | ±20% | 48 A | 39A | Shielded | 1.64mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
