Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIL8532-52LFIXED IND 18MH 90MA 40 OHM SMD |
1,531 |
|
Datasheet |
MIL8532 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 mH | ±15% | 90 mA | 50mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
FPT705-200-RFIXED IND 200NH 13A SMD |
4,243 |
|
- |
FLAT-PAC, FPT705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±10% | 13 A | 25A | Shielded | 0.65mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | 0.211" (5.35mm) |
|
|
IH03EB101KFIXED IND 100UH 5.2A 65 MOHM TH |
3,620 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 5.2 A | 6A | Unshielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.800" Dia x 1.125" L (20.32mm x 28.58mm) | - |
|
SWC-3.00-77FIXED IND 77UH 3A 80 MOHM TH |
4,373 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 77 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|

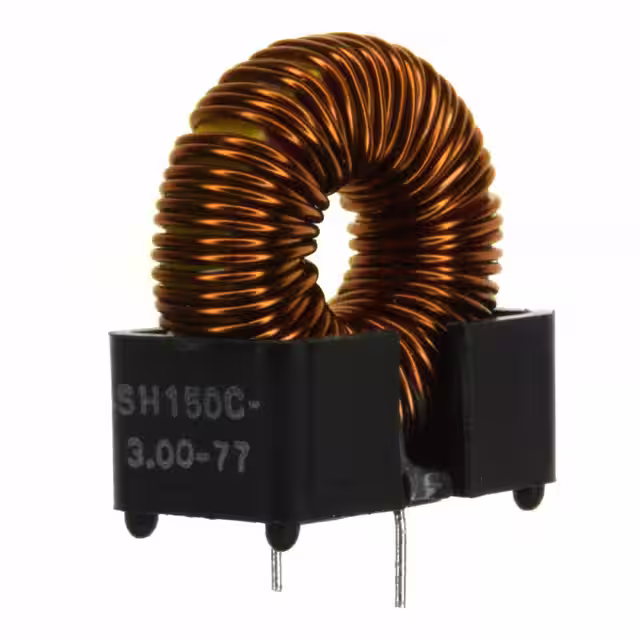

SH150C-3.00-77FIXED IND 77UH 3A 80 MOHM TH |
2,005 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 77 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
1025-56GFIXED IND 33UH 130MA 3.4 OHM TH |
3,907 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±2% | 130 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-58GFIXED IND 39UH 125MA 3.6 OHM TH |
4,522 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±2% | 125 mA | - | Unshielded | 3.6Ohm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-60GFIXED IND 47UH 110MA 4.5 OHM TH |
1,887 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±2% | 110 mA | - | Unshielded | 4.5Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-62GFIXED IND 56UH 100MA 5.7 OHM TH |
2,869 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±2% | 100 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-64GFIXED IND 68UH 92MA 6.7 OHM TH |
3,686 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±2% | 92 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-66GFIXED IND 82UH 88MA 7.3 OHM TH |
4,824 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±2% | 88 mA | - | Unshielded | 7.3Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-68GFIXED IND 100UH 84MA 8 OHM TH |
4,062 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±2% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-70GFIXED IND 120UH 66MA 13 OHM TH |
4,837 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±2% | 66 mA | - | Unshielded | 13Ohm Max | 30 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-72GFIXED IND 150UH 61MA 15 OHM TH |
3,001 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±2% | 61 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1330R-56HFIXED IND 33UH 130MA 3.4 OHM SMD |
3,495 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±3% | 130 mA | - | Unshielded | 3.4Ohm Max | 35 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-58HFIXED IND 39UH 125MA 3.6 OHM SMD |
3,471 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±3% | 125 mA | - | Unshielded | 3.6Ohm Max | 35 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-60HFIXED IND 47UH 110MA 4.5 OHM SMD |
1,871 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±3% | 110 mA | - | Unshielded | 4.5Ohm Max | 35 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-62HFIXED IND 56UH 100MA 5.7 OHM SMD |
1,944 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±3% | 100 mA | - | Unshielded | 5.7Ohm Max | 35 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-64HFIXED IND 68UH 92MA 6.7 OHM SMD |
3,108 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±3% | 92 mA | - | Unshielded | 6.7Ohm Max | 35 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-66HFIXED IND 82UH 88MA 7.3 OHM SMD |
4,707 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±3% | 88 mA | - | Unshielded | 7.3Ohm Max | 35 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
