Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1812R-121HFIXED IND 120NH 1.412A 100 MOHM |
2,424 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±3% | 1.412 A | - | Shielded | 100mOhm Max | 50 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-151HFIXED IND 150NH 1.347A 110 MOHM |
1,301 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±3% | 1.347 A | - | Shielded | 110mOhm Max | 50 @ 25MHz | 390MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-181HFIXED IND 180NH 1.29A 120MOHM SM |
2,232 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±3% | 1.29 A | - | Shielded | 120mOhm Max | 50 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-221HFIXED IND 220NH 1.154A 150 MOHM |
2,257 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±3% | 1.154 A | - | Shielded | 150mOhm Max | 50 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-271HFIXED IND 270NH 1.053A 180 MOHM |
3,592 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 270 nH | ±3% | 1.053 A | - | Shielded | 180mOhm Max | 50 @ 25MHz | 280MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-331HFIXED IND 330NH 952MA 220MOHM SM |
2,188 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±3% | 952 mA | - | Shielded | 220mOhm Max | 40 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-391HFIXED IND 390NH 876MA 260MOHM SM |
3,164 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 390 nH | ±3% | 876 mA | - | Shielded | 260mOhm Max | 40 @ 25MHz | 215MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-471HFIXED IND 470NH 802MA 310MOHM SM |
4,258 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±3% | 802 mA | - | Shielded | 310mOhm Max | 40 @ 25MHz | 205MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-561HFIXED IND 560NH 735MA 370MOHM SM |
2,798 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±3% | 735 mA | - | Shielded | 370mOhm Max | 40 @ 25MHz | 185MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-681HFIXED IND 680NH 675MA 440MOHM SM |
4,215 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±3% | 675 mA | - | Shielded | 440mOhm Max | 40 @ 25MHz | 166MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-821HFIXED IND 820NH 614MA 530MOHM SM |
3,683 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±3% | 614 mA | - | Shielded | 530mOhm Max | 40 @ 25MHz | 155MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
SWC-3.00-53FIXED IND 53UH 3A 80 MOHM TH |
4,771 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 53 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SH150C-3.00-53FIXED IND 53UH 3A 80 MOHM TH |
3,808 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 53 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|

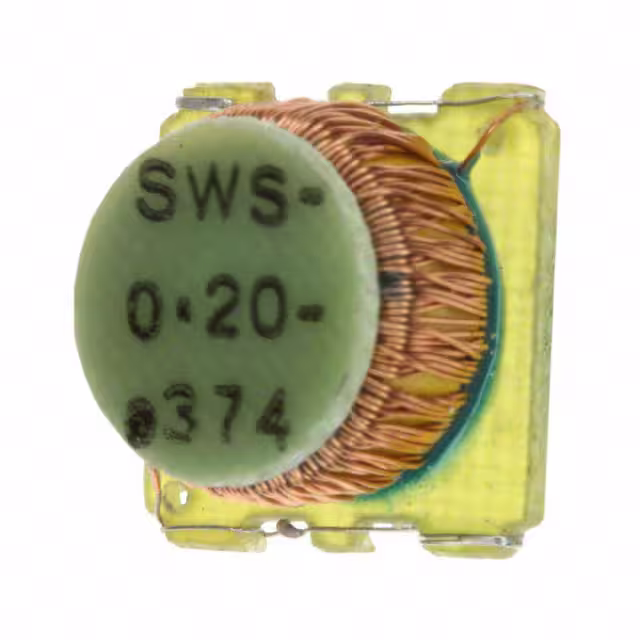

SWS-0.20-374FIXED IND 374UH 200MA 2.7OHM SMD |
3,725 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 374 µH | ±20% | 200 mA | - | Unshielded | 2.7Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.266" (6.75mm) |
|
ATCA-07-350M-HFIXED IND 35UH 10A 10 MOHM TH |
2,201 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 35 µH | ±20% | 10 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" Dia (36.00mm) | 0.768" (19.50mm) |
|
|
ATCA-07-560M-HFIXED IND 56UH 7A 20 MOHM TH |
2,830 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 56 µH | ±20% | 7 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" Dia (36.00mm) | 0.768" (19.50mm) |
|
ATCA-07-350M-VFIXED IND 35UH 10A 10 MOHM TH |
2,547 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 35 µH | ±20% | 10 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" L x 0.768" W (36.00mm x 19.50mm) | - |
|
|
ATCA-07-560M-VFIXED IND 56UH 7A 20 MOHM TH |
3,248 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 56 µH | ±20% | 7 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" L x 0.768" W (36.00mm x 19.50mm) | - |
|
ATCA-08-750M-HFIXED IND 75UH 10A 14 MOHM TH |
3,599 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 75 µH | ±20% | 10 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.673" Dia (42.50mm) | 0.846" (21.50mm) |
|
ATCA-08-750M-VFIXED IND 75UH 10A 14 MOHM TH |
3,250 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 75 µH | ±20% | 10 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.673" L x 0.846" W (42.50mm x 21.50mm) | - |
