Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

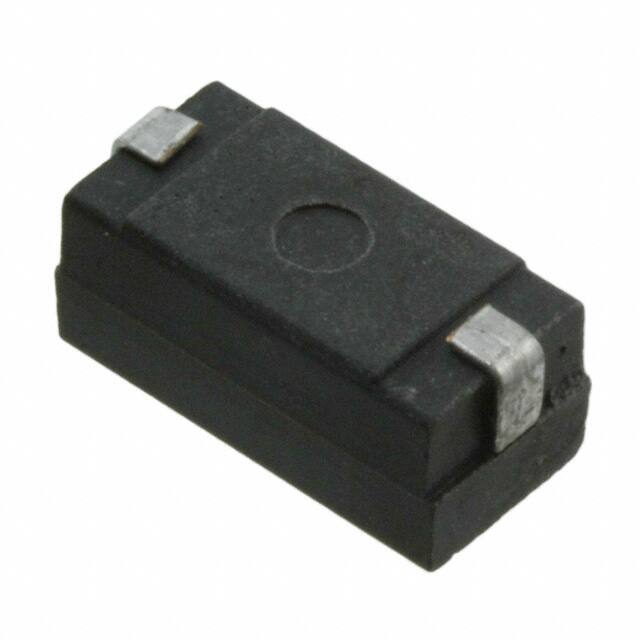

S4924-185KFIXED IND 1.8MH 110MA 29.9OHM SM |
4,862 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 mH | ±10% | 110 mA | 24mA | Shielded | 29.9Ohm Max | 50 @ 250kHz | 2.6MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
S4924-225KFIXED IND 2.2MH 104MA 33.8OHM SM |
2,649 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 mH | ±10% | 104 mA | 22mA | Shielded | 33.8Ohm Max | 50 @ 250kHz | 2.4MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-275KFIXED IND 2.7MH 88MA 47.3OHM SMD |
1,657 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 mH | ±10% | 88 mA | 20mA | Shielded | 47.3Ohm Max | 50 @ 250kHz | 2.2MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-335KFIXED IND 3.3MH 85MA 53 OHM SMD |
3,341 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 mH | ±10% | 85 mA | 19mA | Shielded | 53Ohm Max | 50 @ 250kHz | 2MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|

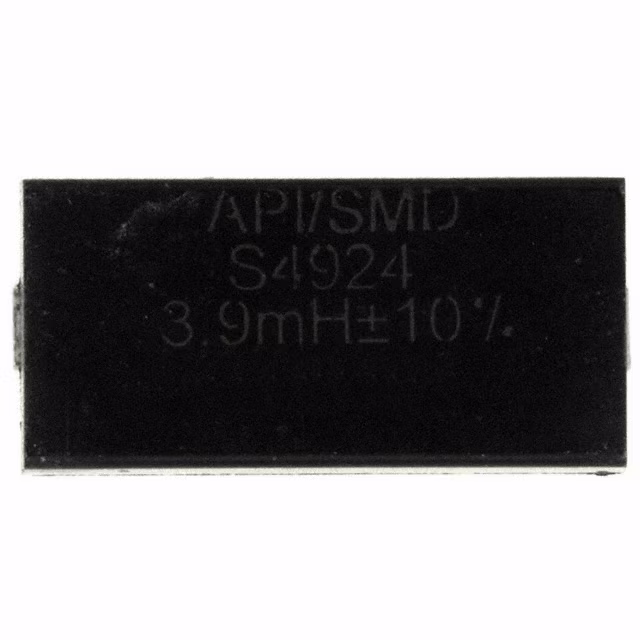

S4924-395KFIXED IND 3.9MH 72MA 73.8OHM SMD |
2,734 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 mH | ±10% | 72 mA | 17mA | Shielded | 73.8Ohm Max | 50 @ 250kHz | 1.9MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-475KFIXED IND 4.7MH 68MA 81.6OHM SMD |
2,647 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 mH | ±10% | 68 mA | 15mA | Shielded | 81.6Ohm Max | 50 @ 250kHz | 1.7MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-565KFIXED IND 5.6MH 61MA 98.9OHM SMD |
4,034 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.6 mH | ±10% | 61 mA | 14mA | Shielded | 98.9Ohm Max | 50 @ 250kHz | 1.6MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-685KFIXED IND 6.8MH 59MA 111 OHM SMD |
3,231 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 mH | ±10% | 59 mA | 13mA | Shielded | 111Ohm Max | 50 @ 250kHz | 1.4MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-825KFIXED IND 8.2MH 57MA 119 OHM SMD |
3,053 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 mH | ±10% | 57 mA | 12mA | Shielded | 119Ohm Max | 50 @ 250kHz | 1.2MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-106KFIXED IND 10MH 54MA 137 OHM SMD |
4,573 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 mH | ±10% | 54 mA | 11mA | Shielded | 137Ohm Max | 50 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
S4924-126KFIXED IND 12MH 50MA 143 OHM SMD |
4,707 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 mH | ±10% | 50 mA | 9mA | Shielded | 143Ohm Max | 30 @ 79kHz | 800kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-156KFIXED IND 15MH 48MA 157 OHM SMD |
4,814 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 mH | ±10% | 48 mA | 8mA | Shielded | 157Ohm Max | 30 @ 79kHz | 600kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-186KFIXED IND 18MH 46MA 225 OHM SMD |
4,951 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 mH | ±10% | 46 mA | 7mA | Shielded | 225Ohm Max | 30 @ 79kHz | 550kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-226KFIXED IND 22MH 37MA 274 OHM SMD |
1,314 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 mH | ±10% | 37 mA | 7mA | Shielded | 274Ohm Max | 27 @ 79kHz | 500kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-276KFIXED IND 27MH 35MA 308 OHM SMD |
2,717 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 mH | ±10% | 35 mA | 7mA | Shielded | 308Ohm Max | 27 @ 79kHz | 400kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924R-106KFIXED IND 10MH 54MA 137 OHM SMD |
4,642 |
|
Datasheet |
S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 mH | ±10% | 54 mA | 11mA | Shielded | 137Ohm Max | 50 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-125KFIXED IND 1.2MH 120MA 22.1OHM SM |
2,059 |
|
Datasheet |
S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 mH | ±10% | 120 mA | 28mA | Shielded | 22.1Ohm Max | 50 @ 250kHz | 3MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-126KFIXED IND 12MH 50MA 143 OHM SMD |
3,373 |
|
Datasheet |
S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 mH | ±10% | 50 mA | 9mA | Shielded | 143Ohm Max | 30 @ 79kHz | 800kHz | - | -55°C ~ 125°C | 70 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-155KFIXED IND 1.5MH 115MA 26.5OHM SM |
1,685 |
|
Datasheet |
S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 mH | ±10% | 115 mA | 27mA | Shielded | 26.5Ohm Max | 50 @ 250kHz | 2.8MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-156KFIXED IND 15MH 48MA 157 OHM SMD |
1,307 |
|
Datasheet |
S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 mH | ±10% | 48 mA | 8mA | Shielded | 157Ohm Max | 30 @ 79kHz | 600kHz | - | -55°C ~ 125°C | 79 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
