Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFDI003030121R0M04INDUCTOR CHOKE |
4,911 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 90 A | 65A | Shielded | 0.48mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012150M04INDUCTOR CHOKE |
4,246 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 28 A | 28A | Shielded | 4.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012330M04INDUCTOR CHOKE |
1,498 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 18 A | 18A | Shielded | 11.3mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030126R8M04INDUCTOR CHOKE |
1,754 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 45 A | 44A | Shielded | 1.9mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030124R7M04INDUCTOR CHOKE |
3,275 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 54 A | 53A | Shielded | 1.4mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012680M04INDUCTOR CHOKE |
2,116 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 68 µH | ±20% | 12 A | 11A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012470M04INDUCTOR CHOKE |
3,752 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 47 µH | ±20% | 16 A | 16.2A | Shielded | 14.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012100M04INDUCTOR CHOKE |
3,415 |
|
- |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 34 A | 32A | Shielded | 3.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012101M04INDUCTOR CHOKE |
4,820 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 100 µH | ±20% | 11 A | 9A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012121M04INDUCTOR CHOKE |
4,856 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 120 µH | ±20% | 9 A | 8A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|

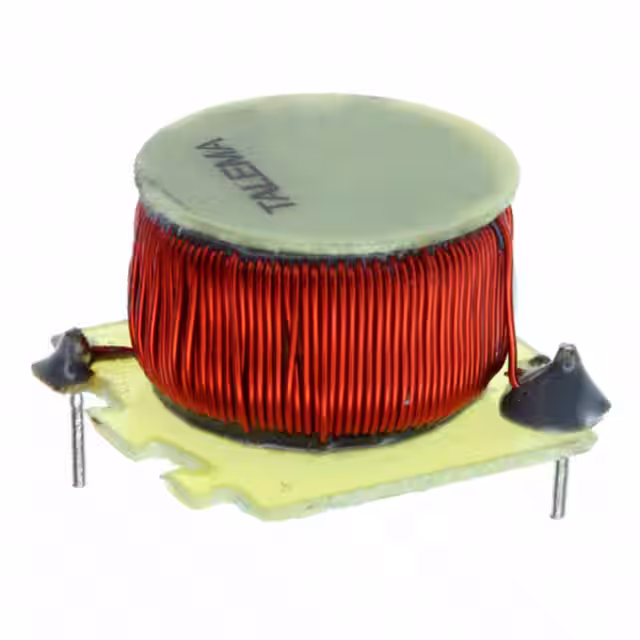

SWT-0.90-330FIXED IND 330UH 900MA 740MOHM TH |
4,818 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.422" (10.71mm) |
|
SWC-3.00-38FIXED IND 38UH 3A 50 MOHM TH |
4,523 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SH50T-1.4-176FIXED IND 176UH 1.4A 140 MOHM TH |
3,161 |
|
Datasheet |
SH50 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 176 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
SH150C-3.00-38FIXED IND 38UH 3A 50 MOHM TH |
1,238 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
SH50T-0.9-267FIXED IND 267UH 900MA 180MOHM TH |
3,705 |
|
Datasheet |
SH50 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 267 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
LDZ2817220K-10FIXED IND 22UH 26A 3 MOHM TH |
1,815 |
|
Datasheet |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 26 A | 16.4A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
|
LDZ2817330K-10FIXED IND 33UH 26A 3 MOHM TH |
4,958 |
|
Datasheet |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 26 A | 10.3A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
HCV1605R1-R500-RIND ER 15.5X5 0.500UH 50A SMT |
2,348 |
|
- |
HCVR1 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 500 nH | ±10% | 20 A | 45A | Unshielded | 1.98mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.196" (4.98mm) |
|
HCM1707-100-RFIXED IND 10UH 14A 10 MOHM SMD |
3,864 |
|
Datasheet |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 14 A | 18A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-1R5-RFIXED IND 1.5UH 40A 2.15MOHM SMD |
3,275 |
|
Datasheet |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 40 A | 40A | Shielded | 2.15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
