Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2500R-22FFIXED IND 750UH 95MA 14.4 OHM TH |
1,628 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 750 µH | ±1% | 95 mA | - | Unshielded | 14.4Ohm Max | 60 @ 790kHz | 3.3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-24FFIXED IND 820UH 92MA 15.1 OHM TH |
2,376 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 820 µH | ±1% | 92 mA | - | Unshielded | 15.1Ohm Max | 60 @ 790kHz | 3.1MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-26FFIXED IND 910UH 91MA 15.8 OHM TH |
1,997 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 910 µH | ±1% | 91 mA | - | Unshielded | 15.8Ohm Max | 60 @ 790kHz | 2.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-28FFIXED IND 1MH 88MA 16.5 OHM TH |
1,855 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±1% | 88 mA | - | Unshielded | 16.5Ohm Max | 60 @ 790kHz | 2.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
LGJ10145TS-331MR54-HFIXED IND 330UH 580MA 680MOHM SM |
2,285 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 580 mA | 540mA | Shielded | 680mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.177" (4.50mm) |
|
SWC-5.0-15FIXED IND 14.8UH 5A 23 MOHM TH |
4,860 |
|
Datasheet |
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 14.8 µH | ±20% | 5 A | - | Unshielded | 23mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
|
SH150F-3.00-25FIXED IND 25UH 3A 40 MOHM TH |
4,444 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 25 µH | ±20% | 3 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.433" (11.00mm) |
|
|
SH260C-5.0-15FIXED IND 14.8UH 5A 23 MOHM TH |
2,643 |
|
Datasheet |
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 14.8 µH | ±20% | 5 A | - | Unshielded | 23mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|

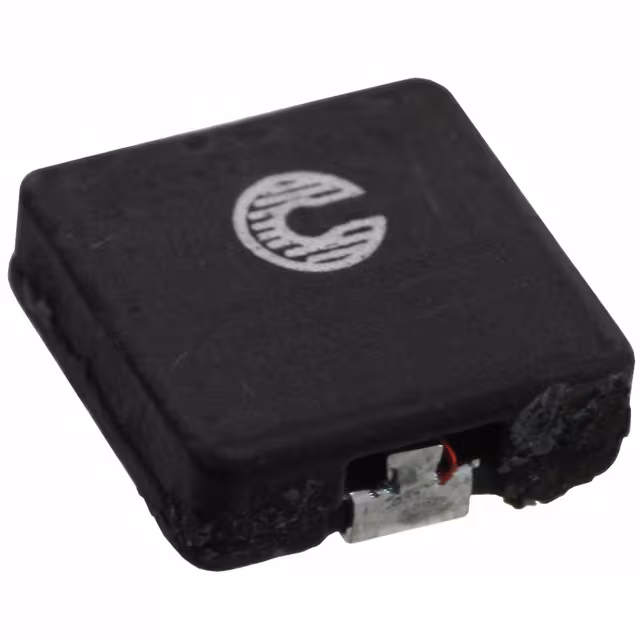

HC8LP-1R2-RFIXED IND 1.2UH 12.4A 7.5MOHM SM |
2,884 |
|
Datasheet |
HC8LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 12.4 A | 18.7A | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.138" (3.50mm) |
|
|
GA10-106KHIGH CURRENT AXIAL POWER CHOKE |
1,490 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 mH | ±10% | 0.036 mA | 23mA | Unshielded | 210Ohm Max | - | 74kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-106KLFHIGH CURRENT AXIAL POWER CHOKE |
1,798 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 mH | ±10% | 0.036 mA | 23mA | Unshielded | 210Ohm Max | - | 74kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
DSH-14-0002FIXED IND 1A 100 MOHM TH |
3,520 |
|
Datasheet |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 1 A | - | - | 100mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - |
|
|
DSH-14-0003FIXED IND 2A 25 MOHM TH |
3,206 |
|
Datasheet |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 2 A | - | - | 25mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - |
|
IHLE5050FHER680M51FIXED IND 68UH 4.9A 105.6MOHM SM |
4,470 |
|
Datasheet |
IHLE-5050FH-51 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 4.9 A | 4.6A | Shielded | 105.6mOhm Max | - | 3.4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
ATCA-07-201M-HFIXED IND 200UH 3A 78 MOHM TH |
3,733 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 200 µH | ±20% | 3 A | - | Unshielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" Dia (36.00mm) | 0.768" (19.50mm) |
|
ATCA-07-201M-VFIXED IND 200UH 3A 78 MOHM TH |
4,258 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 200 µH | ±20% | 3 A | - | Unshielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" L x 0.768" W (36.00mm x 19.50mm) | - |
|
AFDI00303012220M04INDUCTOR CHOKE |
1,089 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 23 A | 23A | Shielded | 6.83mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030128R2M04INDUCTOR CHOKE |
3,671 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 8.2 µH | ±20% | 37 A | 34A | Shielded | 2.9mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030122R2M04INDUCTOR CHOKE |
2,090 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 72 A | 65A | Shielded | 0.77mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030123R3M04INDUCTOR CHOKE |
2,436 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 60 A | 62A | Shielded | 1.48mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
