Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2150-01HFIXED IND 560NH 2.1A 70 MOHM TH |
2,259 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±3% | 2.1 A | - | Unshielded | 70mOhm Max | 65 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-02HFIXED IND 680NH 1.96A 80 MOHM TH |
1,164 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±3% | 1.96 A | - | Unshielded | 80mOhm Max | 65 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-03HFIXED IND 820NH 1.67A 110MOHM TH |
2,042 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±3% | 1.67 A | - | Unshielded | 110mOhm Max | 65 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-04HFIXED IND 1UH 1.48A 140 MOHM TH |
1,722 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±3% | 1.48 A | - | Unshielded | 140mOhm Max | 65 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-05HFIXED IND 1.2UH 1.27A 190MOHM TH |
1,483 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±3% | 1.27 A | - | Unshielded | 190mOhm Max | 40 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-06HFIXED IND 1.5UH 1.05A 280MOHM TH |
1,251 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±3% | 1.05 A | - | Unshielded | 280mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-07HFIXED IND 1.8UH 915MA 370MOHM TH |
4,804 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±3% | 915 mA | - | Unshielded | 370mOhm Max | 40 @ 7.9MHz | 150MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-08HFIXED IND 2.2UH 785MA 500MOHM TH |
3,270 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±3% | 785 mA | - | Unshielded | 500mOhm Max | 40 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-10HFIXED IND 2.7UH 690MA 650MOHM TH |
4,937 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±3% | 690 mA | - | Unshielded | 650mOhm Max | 40 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-12HFIXED IND 3.3UH 555MA 1 OHM TH |
1,876 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.3 µH | ±3% | 555 mA | - | Unshielded | 1Ohm Max | 40 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-14HFIXED IND 3.9UH 505MA 1.2 OHM TH |
1,569 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.9 µH | ±3% | 505 mA | - | Unshielded | 1.2Ohm Max | 40 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-16HFIXED IND 4.7UH 415MA 1.8 OHM TH |
1,219 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±3% | 415 mA | - | Unshielded | 1.8Ohm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
SWT-0.83-248FIXED IND 248UH 830MA 600MOHM TH |
4,390 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|
|
SWT-1.02-168FIXED IND 168UH 1.02A 400MOHM TH |
1,290 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 168 µH | ±20% | 1.02 A | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|
SWC-5.0-10FIXED IND 10UH 5A 25 MOHM TH |
4,283 |
|
Datasheet |
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 10 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|

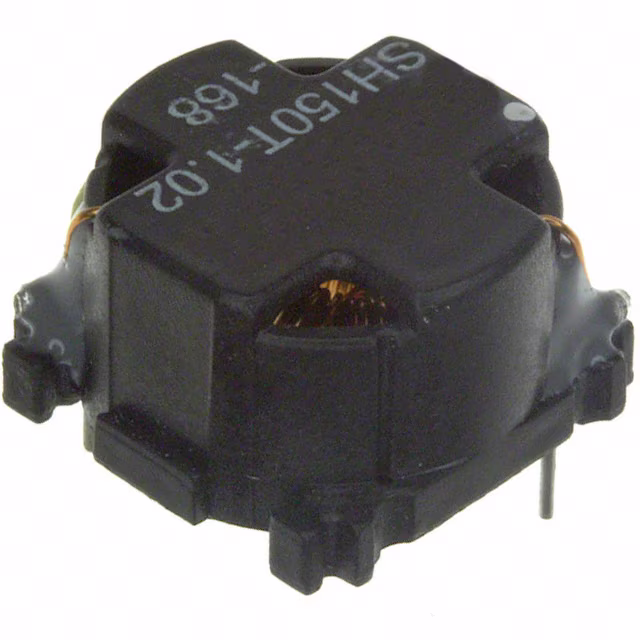

SH150T-1.02-168FIXED IND 168UH 1.02A 400MOHM TH |
4,544 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 168 µH | ±20% | 1.02 A | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
|
SH260C-5.0-10FIXED IND 10UH 5A 25 MOHM TH |
4,873 |
|
Datasheet |
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 10 µH | ±20% | 5 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
|
IH03BQ100KFIXED IND 10UH 9A 18 MOHM TH |
1,733 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 9 A | 19A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) | - |
|
|
GA20-473KHIGH CURRENT AXIAL POWER CHOKE |
1,048 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 470 µH | ±10% | 491 mA | 590mA | Unshielded | 1.15Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-823KHIGH CURRENT AXIAL POWER CHOKE |
3,041 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 820 µH | ±10% | 0.404 mA | 260mA | Unshielded | 1.7Ohm Max | - | 960kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
