Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GA20-333KHIGH CURRENT AXIAL POWER CHOKE |
4,569 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 330 µH | ±10% | 647 mA | 700mA | Unshielded | 665mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-333KHIGH CURRENT AXIAL POWER CHOKE |
1,900 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 330 µH | ±10% | 0.639 mA | 380mA | Unshielded | 680mOhm Max | - | 1.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-223KHIGH CURRENT AXIAL POWER CHOKE |
2,796 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 220 µH | ±10% | 804 mA | 860mA | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
TCK-166PWR SUPP, SUPPLIES & COND |
3,277 |
|
Datasheet |
- | Nonstandard | Bulk | Active | - | - | 8.2 µH | ±20% | 9 A | - | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
PL8101NLTFIXED IND 7UH 1.4A 70 MOHM SMD |
3,000 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
PL8101TFIXED IND 7UH 1.4A 70 MOHM SMD |
4,169 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
SWS-0.85-680FIXED IND 680UH 850MA 1.25OHM SM |
2,847 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.435" (11.05mm) |
|

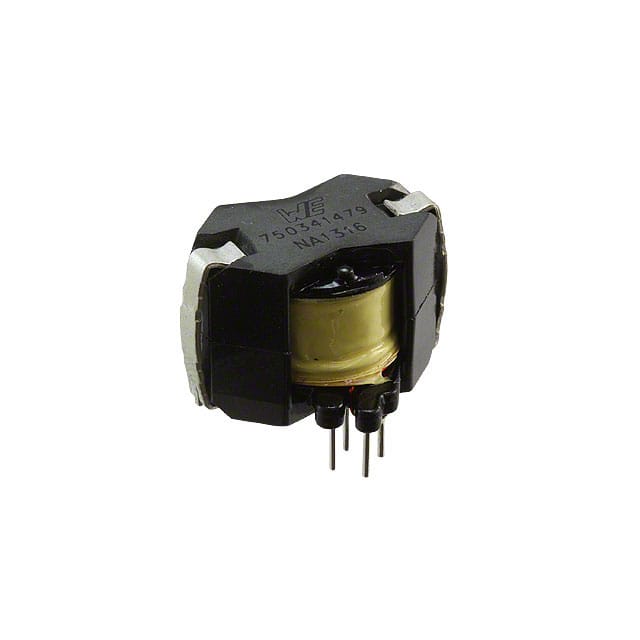

750341479FIXED IND 2.2MH 1.16 OHM TH |
4,728 |
|
Datasheet |
MID-DC16US | Radial, Horizontal, 6 Leads | Tray | Active | - | - | 2.2 mH | ±10% | - | - | - | 1.16Ohm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.695" L x 0.655" W (17.65mm x 16.64mm) | 0.591" (15.00mm) |
|
|
MLP22-272LMOLDED AXL UNSHIELDED INDUCTOR |
2,100 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 27 µH | ±15% | 1.48 A | 1.48A | Unshielded | 179mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-123LMOLDED AXL UNSHIELDED INDUCTOR |
3,316 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±15% | 730 mA | 730mA | Unshielded | 735mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-152LMOLDED AXL UNSHIELDED INDUCTOR |
1,280 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±15% | 2.11 A | 2.11A | Unshielded | 89mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-223LMOLDED AXL UNSHIELDED INDUCTOR |
3,453 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±15% | 500 mA | 500mA | Unshielded | 1.58Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-103LMOLDED AXL UNSHIELDED INDUCTOR |
4,423 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±15% | 760 mA | 760mA | Unshielded | 672mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-122LMOLDED AXL UNSHIELDED INDUCTOR |
2,760 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 µH | ±15% | 2.24 A | 2.24A | Unshielded | 79mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-823LMOLDED AXL UNSHIELDED INDUCTOR |
3,529 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±15% | 260 mA | 260mA | Unshielded | 6.04Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-183LMOLDED AXL UNSHIELDED INDUCTOR |
4,365 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±15% | 530 mA | 530mA | Unshielded | 1.37Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-822LMOLDED AXL UNSHIELDED INDUCTOR |
2,240 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±15% | 810 mA | 810mA | Unshielded | 604mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-392LMOLDED AXL UNSHIELDED INDUCTOR |
1,107 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±15% | 1.12 A | 1.12A | Unshielded | 315mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-472LMOLDED AXL UNSHIELDED INDUCTOR |
1,815 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±15% | 1.04 A | 1.04A | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-563LMOLDED AXL UNSHIELDED INDUCTOR |
4,755 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±15% | 330 mA | 330mA | Unshielded | 3.75Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
