Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

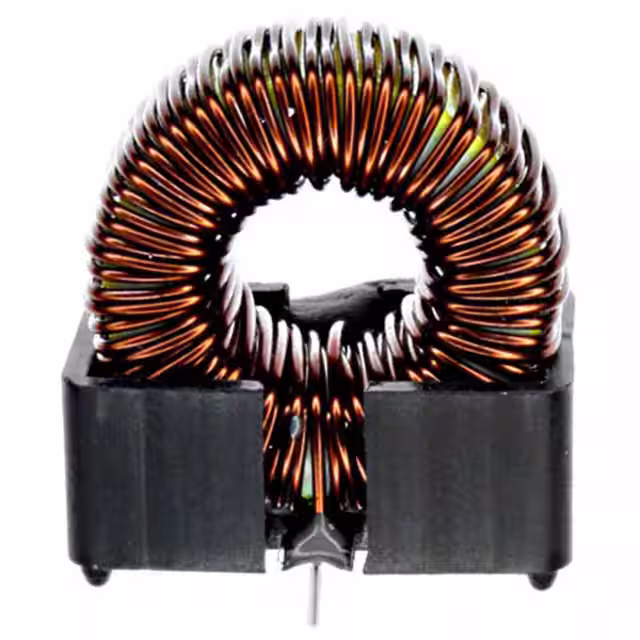

SH50C-0.64-470FIXED IND 470UH 640MA 160MOHM TH |
1,426 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±20% | 640 mA | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SMT1803-681MLFHIGH EFFICIENCY LOW PRO TOROID |
3,752 |
|
- |
SMT1803 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 6.8 µH | ±20% | 1.05 A | 1.53A | Unshielded | 156mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.205" W (7.90mm x 5.21mm) | 0.080" (2.03mm) |
|
|
IHSM7832EB472LFIXED IND 4.7MH 230MA 10.6OHM SM |
1,481 |
|
Datasheet |
IHSM-7832 | Nonstandard | Bulk | Active | - | Ferrite | 4.7 mH | ±15% | 230 mA | 90mA | Unshielded | 10.6Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832EB822LFIXED IND 8.2MH 170MA 21.8OHM SM |
3,149 |
|
Datasheet |
IHSM-7832 | Nonstandard | Bulk | Active | - | Ferrite | 8.2 mH | ±15% | 170 mA | 72.5mA | Unshielded | 21.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
MLP22-151LMOLDED AXL UNSHIELDED INDUCTOR |
2,302 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±15% | 4.45 A | 4.45A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-330LMOLDED AXL UNSHIELDED INDUCTOR |
1,063 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 330 nH | ±15% | 6.5 A | 6.5A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-220LMOLDED AXL UNSHIELDED INDUCTOR |
1,410 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 nH | ±15% | 7 A | 7A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-181LMOLDED AXL UNSHIELDED INDUCTOR |
2,861 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±15% | 4.34 A | 4.34A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-821LMOLDED AXL UNSHIELDED INDUCTOR |
1,075 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 8.2 µH | ±15% | 2.51 A | 2.51A | Unshielded | 63mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-820LMOLDED AXL UNSHIELDED INDUCTOR |
3,793 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 nH | ±15% | 5.6 A | 5.6A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-121LMOLDED AXL UNSHIELDED INDUCTOR |
2,739 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 µH | ±15% | 4.69 A | 4.69A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-390LMOLDED AXL UNSHIELDED INDUCTOR |
1,318 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 390 nH | ±15% | 6.25 A | 6.25A | Unshielded | 9.5mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-470LMOLDED AXL UNSHIELDED INDUCTOR |
1,373 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 nH | ±15% | 6 A | 6A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-561LMOLDED AXL UNSHIELDED INDUCTOR |
1,911 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 5.6 µH | ±15% | 2.79 A | 2.79A | Unshielded | 51mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-101LMOLDED AXL UNSHIELDED INDUCTOR |
4,438 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±15% | 5.5 A | 5.5A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-271LMOLDED AXL UNSHIELDED INDUCTOR |
3,458 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 µH | ±15% | 3.41 A | 3.41A | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-680LMOLDED AXL UNSHIELDED INDUCTOR |
2,977 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 nH | ±15% | 5.7 A | 5.7A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-471LMOLDED AXL UNSHIELDED INDUCTOR |
3,511 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±15% | 2.9 A | 2.9A | Unshielded | 47mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-270LMOLDED AXL UNSHIELDED INDUCTOR |
3,625 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 270 nH | ±15% | 6.75 A | 6.75A | Unshielded | 8.5mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-560LMOLDED AXL UNSHIELDED INDUCTOR |
2,593 |
|
Datasheet |
MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 nH | ±15% | 5.8 A | 5.8A | Unshielded | 10.5mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
