Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4470R-37HFIXED IND 1MH 145MA 24 OHM TH |
3,623 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±3% | 145 mA | - | Unshielded | 24Ohm Max | 75 @ 500kHz | 1.92MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-38HFIXED IND 1.2MH 137MA 27 OHM TH |
1,541 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.2 mH | ±3% | 137 mA | - | Unshielded | 27Ohm Max | 75 @ 500kHz | 1.68MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
1812R-101FFIXED IND 100NH 818MA 300MOHM SM |
3,836 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±1% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 650MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-121FFIXED IND 120NH 818MA 300MOHM SM |
1,557 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±1% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-151FFIXED IND 150NH 818MA 300MOHM SM |
3,276 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±1% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-181FFIXED IND 180NH 757MA 350MOHM SM |
2,712 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±1% | 757 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-221FFIXED IND 220NH 708MA 400MOHM SM |
2,734 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±1% | 708 mA | - | Unshielded | 400mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-271FFIXED IND 270NH 668MA 450MOHM SM |
4,531 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 270 nH | ±1% | 668 mA | - | Unshielded | 450mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-331FFIXED IND 330NH 604MA 550MOHM SM |
1,457 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±1% | 604 mA | - | Unshielded | 550mOhm Max | 30 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-391FFIXED IND 390NH 535MA 700MOHM SM |
4,691 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 390 nH | ±1% | 535 mA | - | Unshielded | 700mOhm Max | 30 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-471FFIXED IND 470NH 501MA 800MOHM SM |
2,084 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±1% | 501 mA | - | Unshielded | 800mOhm Max | 30 @ 25MHz | 190MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-561FFIXED IND 560NH 409MA 1.2OHM SMD |
3,350 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±1% | 409 mA | - | Unshielded | 1.2Ohm Max | 30 @ 25MHz | 170MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-681FFIXED IND 680NH 379MA 1.4OHM SMD |
1,495 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±1% | 379 mA | - | Unshielded | 1.4Ohm Max | 30 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-821FFIXED IND 820NH 354MA 1.6OHM SMD |
4,426 |
|
Datasheet |
1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±1% | 354 mA | - | Unshielded | 1.6Ohm Max | 30 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
SWT-0.13-259FIXED IND 259UH 130MA 3.4 OHM TH |
4,648 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 259 µH | ±20% | 130 mA | - | Unshielded | 3.4Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.217" (5.50mm) |
|

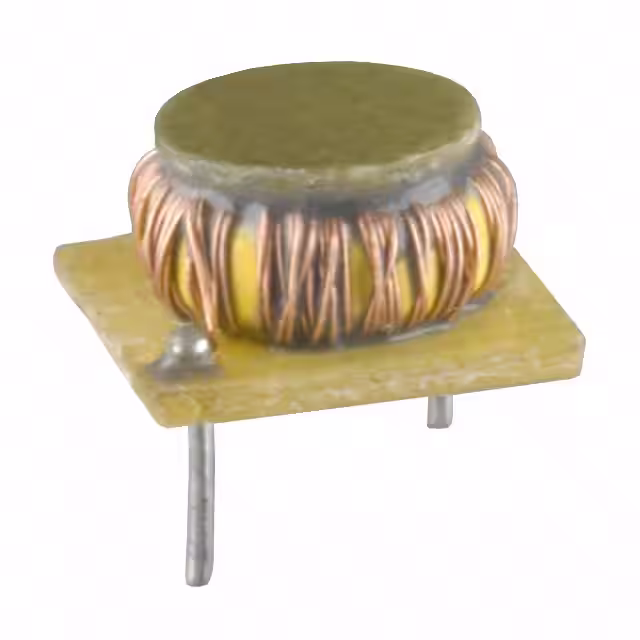

SWT-0.20-118FIXED IND 118UH 200MA 1.8 OHM TH |
4,959 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 118 µH | ±20% | 200 mA | - | Unshielded | 1.8Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.217" (5.50mm) |
|

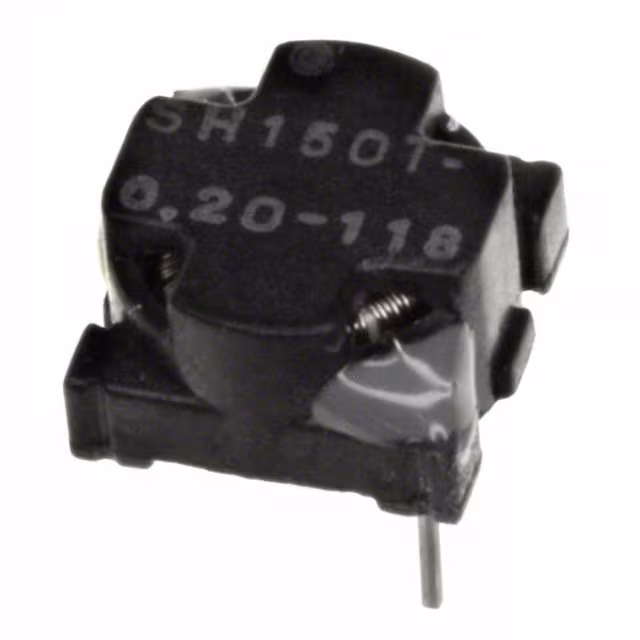

SH150T-0.20-118FIXED IND 118UH 200MA 1.8 OHM TH |
1,854 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 118 µH | ±20% | 200 mA | - | Unshielded | 1.8Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.201" (5.10mm) |
|
|
SH150T-0.13-259FIXED IND 259UH 130MA 3.4 OHM TH |
1,391 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 259 µH | ±20% | 130 mA | - | Unshielded | 3.4Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.201" (5.10mm) |
|
|
IH05EB100KFIXED IND 10UH 12A 15 MOHM TH |
4,396 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 12 A | 19A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) | - |
|
|
IH05EB5R0KFIXED IND 5UH 14A 12 MOHM TH |
4,808 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 14 A | 25A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.625" Dia x 0.875" L (15.88mm x 22.23mm) | - |
