Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1782R-51GFIXED IND 20UH 140MA 3.3 OHM TH |
1,100 |
|
Datasheet |
1782R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 20 µH | ±2% | 140 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782R-53GFIXED IND 24UH 135MA 3.5 OHM TH |
3,712 |
|
Datasheet |
1782R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 24 µH | ±2% | 135 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782R-95GFIXED IND 110NH 1.27A 90 MOHM TH |
2,262 |
|
Datasheet |
1782R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 110 nH | ±2% | 1.27 A | - | Unshielded | 90mOhm Max | 40 @ 25MHz | 640MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782R-97GFIXED IND 130NH 1.2A 100 MOHM TH |
3,175 |
|
Datasheet |
1782R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 130 nH | ±2% | 1.2 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
HCMA1707-220-RFIXED IND 22UH 9.5A 23 MOHM SMD |
4,088 |
|
Datasheet |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±20% | 9.5 A | 11A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
SWT-0.67-115FIXED IND 115UH 670MA 400MOHM TH |
1,918 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 115 µH | ±20% | 670 mA | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.307" (7.80mm) |
|
|
SWT-0.82-78FIXED IND 78UH 820MA 300 MOHM TH |
4,323 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 78 µH | ±20% | 820 mA | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.307" (7.80mm) |
|
SH150T-0.82-78FIXED IND 78UH 820MA 300 MOHM TH |
2,864 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 78 µH | ±20% | 820 mA | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|
|
SP1008-563JFIXED IND 56UH 133MA 6.4 OHM SMD |
4,353 |
|
Datasheet |
SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 133 mA | - | Shielded | 6.4Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|

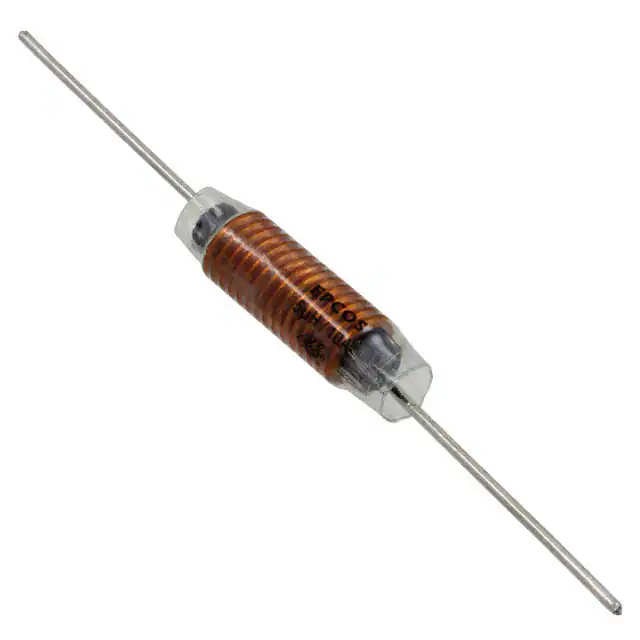

B82111B0000C021FIXED IND 5UH 10A 5 MOHM TH |
4,170 |
|
Datasheet |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 10 A | - | Unshielded | 5mOhm | - | 175MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.374" Dia x 1.339" L (9.50mm x 34.00mm) | - |
|
|
GA5-334KHIGH CURRENT AXIAL POWER CHOKE |
2,793 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 3.3 mH | ±10% | 83 mA | 52mA | Unshielded | 29Ohm Max | - | 530kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-394KHIGH CURRENT AXIAL POWER CHOKE |
4,457 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 3.9 mH | ±10% | 77 mA | 48mA | Unshielded | 34Ohm Max | - | 480kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-274KHIGH CURRENT AXIAL POWER CHOKE |
4,907 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 2.7 mH | ±10% | 90 mA | 58mA | Unshielded | 25Ohm Max | - | 560kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
GA5-224KHIGH CURRENT AXIAL POWER CHOKE |
2,164 |
|
Datasheet |
GA5 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 2.2 mH | ±10% | 100 mA | 64mA | Unshielded | 19Ohm Max | - | 640kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.400" L (4.06mm x 10.16mm) | - |
|
|
4470-15HFIXED IND 15UH 1.3A 300 MOHM TH |
3,101 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 15 µH | ±3% | 1.3 A | - | Unshielded | 300mOhm Max | 75 @ 5MHz | 32MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470-16HFIXED IND 18UH 1.15A 400 MOHM TH |
4,011 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 18 µH | ±3% | 1.15 A | - | Unshielded | 400mOhm Max | 75 @ 5MHz | 28.8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470-17HFIXED IND 22UH 1A 500 MOHM TH |
1,755 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 22 µH | ±3% | 1 A | - | Unshielded | 500mOhm Max | 75 @ 2.5MHz | 25.6MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470-18HFIXED IND 27UH 900MA 600 MOHM TH |
3,739 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 27 µH | ±3% | 900 mA | - | Unshielded | 600mOhm Max | 70 @ 2.5MHz | 24MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470-19HFIXED IND 33UH 850MA 700 MOHM TH |
4,433 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 33 µH | ±3% | 850 mA | - | Unshielded | 700mOhm Max | 70 @ 2.5MHz | 22.4MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470-20HFIXED IND 39UH 720MA 1 OHM TH |
1,949 |
|
Datasheet |
4470 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 39 µH | ±3% | 720 mA | - | Unshielded | 1Ohm Max | 70 @ 2.5MHz | 20.8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
