Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

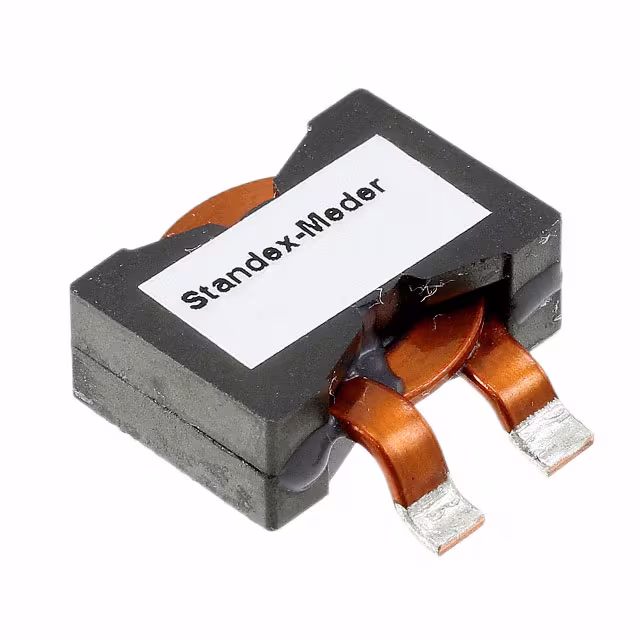

PQ2007-0R4-70-GFIXED IND 400NH 70A 0.7 MOHM SMD |
4,960 |
|
Datasheet |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 400 nH | - | 70 A | 83A | Unshielded | 0.7mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|
2256R-34KFIXED IND 560UH 330MA 3.75OHM TH |
4,993 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±10% | 330 mA | 330mA | Unshielded | 3.75Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-35KFIXED IND 680UH 300MA 4.31OHM TH |
1,088 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±10% | 300 mA | 300mA | Unshielded | 4.31Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-36KFIXED IND 820UH 260MA 6.04OHM TH |
1,460 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±10% | 260 mA | 260mA | Unshielded | 6.04Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-37KFIXED IND 1MH 240MA 6.9 OHM TH |
3,037 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±10% | 240 mA | 240mA | Unshielded | 6.9Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-38KFIXED IND 1.2MH 200MA 10 OHM TH |
1,805 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 mH | ±10% | 200 mA | 200mA | Unshielded | 10Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-39KFIXED IND 1.5MH 178MA 12.5OHM TH |
2,914 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 mH | ±10% | 178 mA | 178mA | Unshielded | 12.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-40KFIXED IND 1.8MH 157MA 16 OHM TH |
4,158 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 mH | ±10% | 157 mA | 157mA | Unshielded | 16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-41KFIXED IND 2.2MH 141MA 20 OHM TH |
3,046 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.2 mH | ±10% | 141 mA | 141mA | Unshielded | 20Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-42KFIXED IND 2.7MH 131MA 23 OHM TH |
1,758 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 mH | ±10% | 131 mA | 131mA | Unshielded | 23Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-43KFIXED IND 3.3MH 126MA 25 OHM TH |
2,652 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 mH | ±10% | 126 mA | 126mA | Unshielded | 25Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-44KFIXED IND 3.9MH 110MA 33 OHM TH |
2,988 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 mH | ±10% | 110 mA | 110mA | Unshielded | 33Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-45KFIXED IND 4.7MH 103MA 37 OHM TH |
1,981 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 mH | ±10% | 103 mA | 103mA | Unshielded | 37Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-46KFIXED IND 5.6MH 100MA 40 OHM TH |
3,945 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 5.6 mH | ±10% | 100 mA | 100mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-47KFIXED IND 6.8MH 80MA 62 OHM TH |
4,782 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 mH | ±10% | 80 mA | 80mA | Unshielded | 62Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-48KFIXED IND 8.2MH 77MA 66 OHM TH |
3,077 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 8.2 mH | ±10% | 77 mA | 77mA | Unshielded | 66Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-49KFIXED IND 10MH 71MA 74 OHM TH |
4,037 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 10 mH | ±10% | 71 mA | 71mA | Unshielded | 74Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-50KFIXED IND 12MH 65MA 93 OHM TH |
1,953 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 mH | ±10% | 65 mA | 65mA | Unshielded | 93Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-51KFIXED IND 15MH 61MA 105 OHM TH |
4,657 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 mH | ±10% | 61 mA | 61mA | Unshielded | 105Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-52KFIXED IND 18MH 52MA 143 OHM TH |
4,428 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 18 mH | ±10% | 52 mA | 52mA | Unshielded | 143Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
