Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4302R-821JFIXED IND 820NH 540MA 510MOHM SM |
3,828 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 820 nH | ±5% | 540 mA | - | Unshielded | 510mOhm Max | 40 @ 25MHz | 95MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
4302R-822JFIXED IND 8.2UH 195MA 4 OHM SMD |
3,154 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±5% | 195 mA | - | Unshielded | 4Ohm Max | 30 @ 7.9MHz | 20MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|

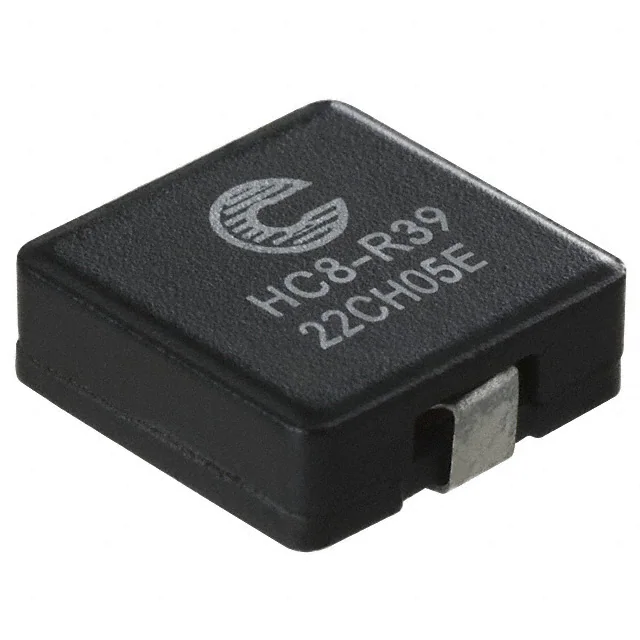

HC8-R39-RFIXED IND 390NH 28.3A 1.55 MOHM |
3,287 |
|
Datasheet |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 390 nH | ±20% | 28.3 A | 45A | Unshielded | 1.55mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
|
IHSM5832PJ101KFIXED IND 100UH 950MA 452MOHM SM |
1,972 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 100 µH | ±10% | 950 mA | 680mA | Unshielded | 452mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832PJ181LFIXED IND 180UH 750MA 809MOHM SM |
2,999 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 180 µH | ±15% | 750 mA | 540mA | Unshielded | 809mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832PJ221LFIXED IND 220UH 690MA 1.1OHM SMD |
4,079 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 220 µH | ±15% | 690 mA | 480mA | Unshielded | 1.1Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832PJ271LFIXED IND 270UH 640MA 1.27OHM SM |
2,400 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 270 µH | ±15% | 640 mA | 430mA | Unshielded | 1.27Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832PJ331LFIXED IND 330UH 590MA 1.42OHM SM |
2,762 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 330 µH | ±15% | 590 mA | 380mA | Unshielded | 1.42Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832PJ391LFIXED IND 390UH 540MA 1.89OHM SM |
1,610 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 390 µH | ±15% | 540 mA | 340mA | Unshielded | 1.89Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832PJ471LFIXED IND 470UH 490MA 2.21OHM SM |
2,765 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 470 µH | ±15% | 490 mA | 310mA | Unshielded | 2.21Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832PJ561LFIXED IND 560UH 460MA 2.42OHM SM |
3,998 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 560 µH | ±15% | 460 mA | 280mA | Unshielded | 2.42Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832PJ681LFIXED IND 680UH 430MA 2.73OHM SM |
2,693 |
|
Datasheet |
IHSM-5832 | Nonstandard | Bulk | Active | - | Ferrite | 680 µH | ±15% | 430 mA | 250mA | Unshielded | 2.73Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|

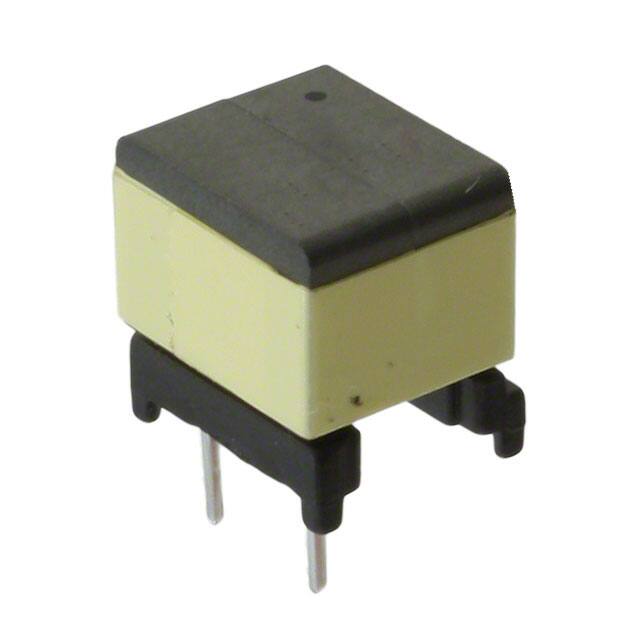

750311907FIXED IND 1.2MH 200MA 1.1 OHM TH |
4,471 |
|
Datasheet |
- | Radial, 3 Leads | Tray | Active | Wirewound | - | 1.2 mH | ±10% | 200 mA | 200mA | Unshielded | 1.1Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.580" Dia x 0.365" W (14.73mm x 9.27mm) | - |
|
|
BX6150NLTFIXED IND |
1,275 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMRF1210-821KMOLDED UNSHIELDED INDUCTOR |
3,966 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 8.2 µH | ±10% | 305 mA | - | Unshielded | 2Ohm Max | 30 @ 7.9MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
SMRF1210-121KMOLDED UNSHIELDED INDUCTOR |
3,004 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 µH | ±10% | 497 mA | - | Unshielded | 750mOhm Max | 30 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
SMRF1210-471KMOLDED UNSHIELDED INDUCTOR |
2,124 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±10% | 352 mA | - | Unshielded | 1.5Ohm Max | 30 @ 7.9MHz | 45MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
SMRF1210-181KMOLDED UNSHIELDED INDUCTOR |
4,609 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±10% | 454 mA | - | Unshielded | 900mOhm Max | 30 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
SMRF1210-391KMOLDED UNSHIELDED INDUCTOR |
3,673 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 µH | ±10% | 378 mA | - | Unshielded | 1.3Ohm Max | 30 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
SMRF1210-681KMOLDED UNSHIELDED INDUCTOR |
3,540 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 µH | ±10% | 321 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
