Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3483R-1R0MFIXED IND 1UH 3.12A 0.019OHM SMD |
4,758 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.12 A | - | Shielded | 19mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-1R5MFIXED IND 1.5UH 2.85A 0.023OHM |
3,859 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.85 A | - | Shielded | 23mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-220MFIXED IND 22UH 900MA 0.15OHM SMD |
4,021 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 900 mA | - | Shielded | 150mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-270MFIXED IND 27UH 810MA 0.21OHM SMD |
3,530 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 810 mA | - | Shielded | 210mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-330MFIXED IND 33UH 720MA 0.25OHM SMD |
4,587 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 720 mA | - | Shielded | 250mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-3R3MFIXED IND 3.3UH 2.26A 0.035OHM |
3,345 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.26 A | - | Shielded | 35mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-470MFIXED IND 47UH 600MA 0.35OHM SMD |
1,967 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 600 mA | - | Shielded | 350mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-4R7MFIXED IND 4.7UH 1.96A 0.043OHM |
2,798 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.96 A | - | Shielded | 43mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-560MFIXED IND 56UH 550MA 0.43OHM SMD |
3,091 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 550 mA | - | Shielded | 430mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-680MFIXED IND 68UH 500MA 0.52OHM SMD |
2,063 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 500 mA | - | Shielded | 520mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-6R8MFIXED IND 6.8UH 1.76A 0.055OHM |
4,041 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.76 A | - | Shielded | 55mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|
|
S3483R-820MFIXED IND 82UH 460MA 0.6OHM SMD |
1,015 |
|
Datasheet |
S3483R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 460 mA | - | Shielded | 600mOhm Max | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.138" (3.50mm) |
|

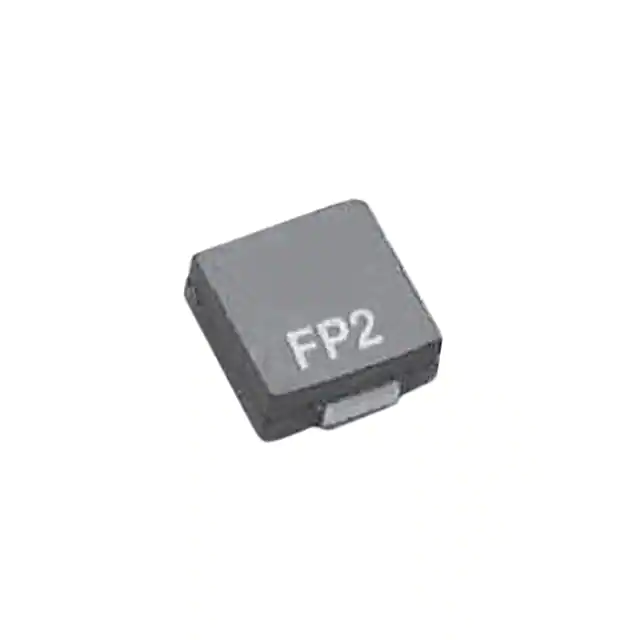

FP2-V150-RFIXED IND 150NH 37A 0.28MOHM SMD |
3,952 |
|
Datasheet |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 37 A | 25.5A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.197" (5.00mm) |
|
CSEB0530H-2R2MSMD MOLDING POWER CHOKE |
3,715 |
|
Datasheet |
CSEB0530H | Nonstandard | Active | Molded | Metal Composite | 2.2 µH | ±20% | 8.8 A | 8.5A | Shielded | 14.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.126" (3.20mm) | |
|
|
SMRF1210-015KMOLDED UNSHIELDED INDUCTOR |
1,720 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Phenolic | 15 nH | ±10% | 871 mA | - | Unshielded | 160mOhm Max | 30 @ 50MHz | 1.7GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
SML32S-560JMOLDED SHIELDED INDUCTOR |
4,455 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±5% | 644 mA | - | Shielded | 500mOhm Max | - | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-120JMOLDED SHIELDED INDUCTOR |
4,117 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 120 nH | ±5% | 1.104 A | - | Shielded | 170mOhm Max | - | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-100JLFMOLDED SHIELDED INDUCTOR |
2,222 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 100 nH | ±5% | 1.175 A | - | Shielded | 150mOhm Max | - | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-101JMOLDED SHIELDED INDUCTOR |
1,758 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±5% | 679 mA | - | Shielded | 400mOhm Max | - | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-220JLFMOLDED SHIELDED INDUCTOR |
1,124 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±5% | 910 mA | - | Shielded | 250mOhm Max | - | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
