Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHSM3825PJ1R5LFIXED IND 1.5UH 4.63A 17MOHM SMD |
1,815 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 1.5 µH | ±15% | 4.63 A | 3.66A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ1R8LFIXED IND 1.8UH 4.27A 22MOHM SMD |
1,854 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 1.8 µH | ±15% | 4.27 A | 3.22A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ2R2LFIXED IND 2.2UH 3.61A 31MOHM SMD |
2,828 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 2.2 µH | ±15% | 3.61 A | 2.62A | Unshielded | 31mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ2R7LFIXED IND 2.7UH 3.18A 38MOHM SMD |
3,578 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 2.7 µH | ±15% | 3.18 A | 2.4A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ3R3LFIXED IND 3.3UH 2.94A 45MOHM SMD |
4,406 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 3.3 µH | ±15% | 2.94 A | 2.13A | Unshielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ3R9LFIXED IND 3.9UH 2.57A 62MOHM SMD |
2,297 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 3.9 µH | ±15% | 2.57 A | 2.05A | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ4R7LFIXED IND 4.7UH 2.17A 83MOHM SMD |
1,266 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 4.7 µH | ±15% | 2.17 A | 1.93A | Unshielded | 83mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ5R6LFIXED IND 5.6UH 2.08A 91MOHM SMD |
2,439 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 5.6 µH | ±15% | 2.08 A | 1.79A | Unshielded | 91mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ6R8LFIXED IND 6.8UH 1.94A 101MOHM SM |
3,398 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 6.8 µH | ±15% | 1.94 A | 1.62A | Unshielded | 101mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825PJ8R2LFIXED IND 8.2UH 1.83A 118MOHM SM |
4,674 |
|
Datasheet |
IHSM-3825 | Nonstandard | Bulk | Active | - | Ferrite | 8.2 µH | ±15% | 1.83 A | 1.5A | Unshielded | 118mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
SMRF3013-122JLFMOLDED UNSHIELDED INDUCTOR |
4,176 |
|
Datasheet |
SMRF3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 12 µH | ±5% | 274 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.120" W (7.94mm x 3.05mm) | 0.145" (3.68mm) |
|
|
SMRF3013-122JMOLDED UNSHIELDED INDUCTOR |
1,861 |
|
Datasheet |
SMRF3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 12 µH | ±5% | 274 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.120" W (7.94mm x 3.05mm) | 0.145" (3.68mm) |
|
HCM1A1307-R33-RFIXED IND 330NH 44A 0.92MOHM SMD |
3,774 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 44 A | 72A | Shielded | 0.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
PA1292.152NLFIXED IND 1.5UH 21A 0.98MOHM SMD |
4,290 |
|
Datasheet |
PA1292NL | Nonstandard | Tray | Active | Planar | - | 1.5 µH | ±15% | 21 A | 24A | Shielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|

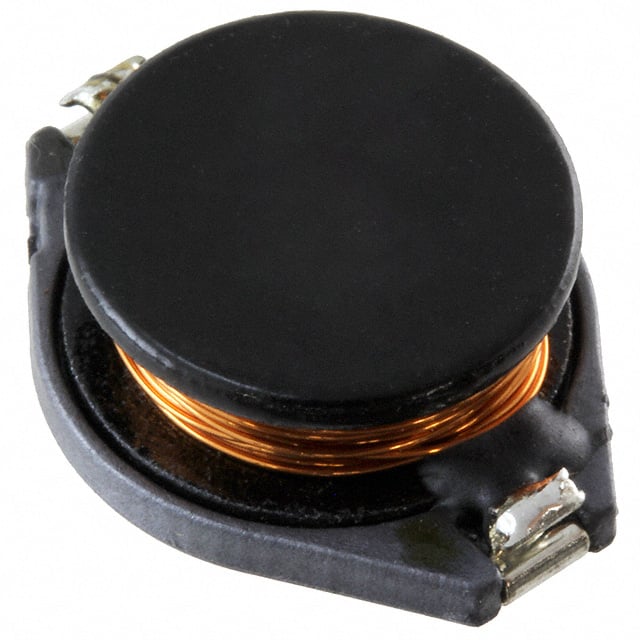

LMXN1915M100CTASFIXED IND 10UH 31 MOHM SMD |
1,129 |
|
Datasheet |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | - | 10A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

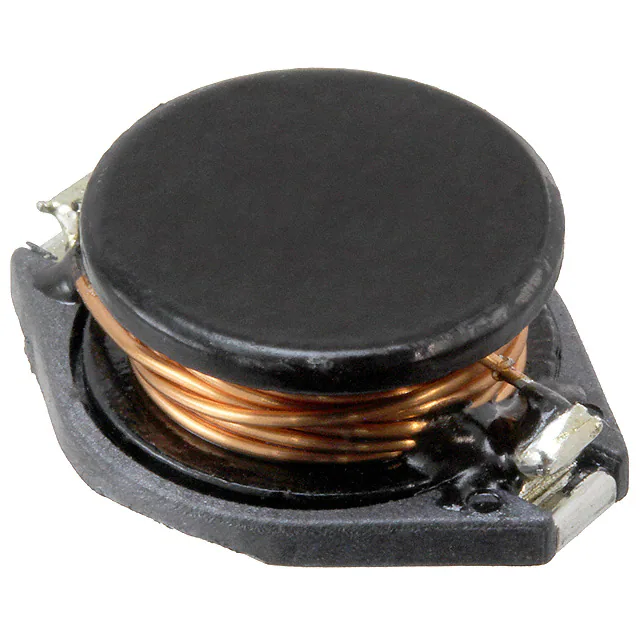

LMXN2216M2R2BTASFIXED IND 2.2UH 6 MOHM SMD |
3,774 |
|
Datasheet |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | - | 20A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
1211EA-1004=P3FIXED IND 10UH 2.8A 25 MOHM SMD |
2,484 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.8 A | 5A | Unshielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.421" W (10.40mm x 10.70mm) | 0.394" (10.00mm) |
|
|
IHSM4825ER100KFIXED IND 10UH 3.1A 71 MOHM SMD |
4,099 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 3.1 A | 1.4A | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
IHA501EBFIXED IND 5UH 9.3A 10 MOHM TH |
4,043 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 9.3 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 1.050" L (12.07mm x 26.67mm) | - |
|
|
IHA502BAFIXED IND 10UH 8.3A 15 MOHM TH |
2,919 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 8.3 A | - | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 1.050" L (12.07mm x 26.67mm) | - |
