Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2256R-681KFIXED IND 680NH 5.7A 11 MOHM TH |
3,788 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 nH | ±10% | 5.7 A | 5.7A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
|
2256R-821KFIXED IND 820NH 5.6A 12 MOHM TH |
2,355 |
|
Datasheet |
2256R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 nH | ±10% | 5.6 A | 5.6A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.225" Dia x 0.570" L (5.72mm x 14.48mm) | - |
|
BMRF00171770680MB1INDUCTOR POWER |
3,414 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 4.7 A | 6.8A | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
BMRF00171770330MB1INDUCTOR POWER |
1,003 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 8 A | 8.6A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
BMRF00171770470MB1INDUCTOR POWER |
1,773 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 6 A | 7.5A | Shielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHD1ER102LFIXED IND 1MH 330MA 2.3 OHM TH |
4,856 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±15% | 330 mA | 230mA | Unshielded | 2.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1ER222LFIXED IND 2.2MH 240MA 4.4 OHM TH |
1,964 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±15% | 240 mA | 160mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1ER272LFIXED IND 2.7MH 210MA 5.8 OHM TH |
2,250 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±15% | 210 mA | 140mA | Unshielded | 5.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1ER332LFIXED IND 3.3MH 200MA 6.56OHM TH |
4,359 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±15% | 200 mA | 130mA | Unshielded | 6.56Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1ER821LFIXED IND 820UH 360MA 1.98OHM TH |
2,044 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±15% | 360 mA | 260mA | Unshielded | 1.98Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
2300LL-1R5-H-RCFIXED IND 1.5UH 34A 1 MOHM TH |
4,144 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 1.5 µH | ±20% | 34 A | - | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-2R7-H-RCFIXED IND 2.7UH 29.4A 2 MOHM TH |
1,588 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 2.7 µH | ±20% | 29.4 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-3R9-H-RCFIXED IND 3.9UH 26.3A 2 MOHM TH |
2,511 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 3.9 µH | ±20% | 26.3 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-5R6-H-RCFIXED IND 5.6UH 24A 3 MOHM TH |
2,792 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 5.6 µH | ±20% | 24 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-8R2-H-RCFIXED IND 8.2UH 22.3A 3 MOHM TH |
1,426 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 8.2 µH | ±20% | 22.3 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-100-H-RCFIXED IND 10UH 20.8A 4 MOHM TH |
1,754 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 10 µH | ±15% | 20.8 A | - | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|

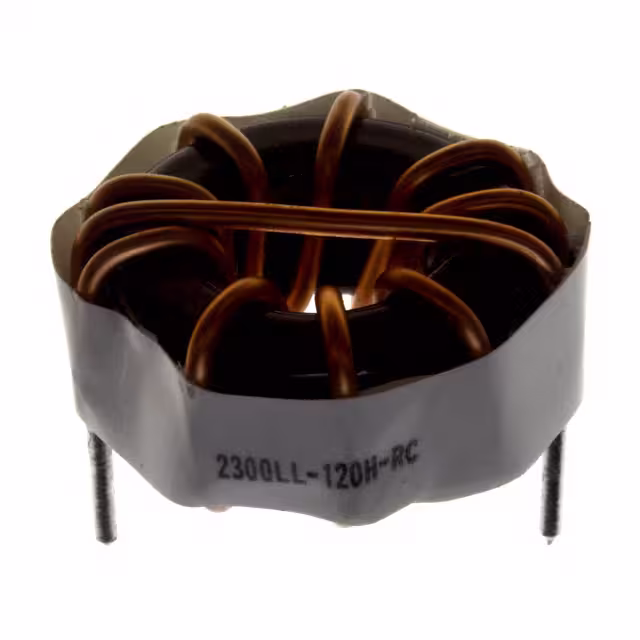

2300LL-120-H-RCFIXED IND 12UH 19.6A 4 MOHM TH |
3,495 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 12 µH | ±15% | 19.6 A | - | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-150-H-RCFIXED IND 15UH 18.6A 5 MOHM TH |
3,211 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 15 µH | ±15% | 18.6 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-270-H-RCFIXED IND 27UH 17A 6 MOHM TH |
4,572 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 27 µH | ±15% | 17 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-470-H-RCFIXED IND 47UH 11.8A 12 MOHM TH |
4,225 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 11.8 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
