Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2301-VFIXED IND 10UH 20A 5 MOHM TH |
3,966 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 10 µH | ±15% | 20 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2302-VFIXED IND 12UH 19.1A 5 MOHM TH |
4,324 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 12 µH | ±15% | 19.1 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2305-VFIXED IND 22UH 16.4A 7 MOHM TH |
4,725 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 22 µH | ±15% | 16.4 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2306-VFIXED IND 27UH 15.6A 8 MOHM TH |
1,652 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 27 µH | ±15% | 15.6 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2307-VFIXED IND 33UH 11.7A 13 MOHM TH |
1,087 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 33 µH | ±15% | 11.7 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2308-VFIXED IND 39UH 11.2A 14 MOHM TH |
3,479 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 39 µH | ±15% | 11.2 A | - | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2309-VFIXED IND 47UH 10.7A 16 MOHM TH |
1,136 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | ±15% | 10.7 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2310-VFIXED IND 56UH 10.2A 17 MOHM TH |
2,244 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 56 µH | ±15% | 10.2 A | - | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2311-VFIXED IND 68UH 7.7A 30 MOHM TH |
2,811 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 68 µH | ±15% | 7.7 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2312-VFIXED IND 100UH 7A 37 MOHM TH |
2,322 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±15% | 7 A | - | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2313-VFIXED IND 120UH 6.7A 40 MOHM TH |
2,178 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 120 µH | ±15% | 6.7 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2314-VFIXED IND 150UH 5A 71 MOHM TH |
2,925 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 150 µH | ±15% | 5 A | - | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2317-VFIXED IND 270UH 5.5A 60 MOHM TH |
3,090 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 270 µH | ±15% | 5.5 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2318-VFIXED IND 330UH 5.2A 67 MOHM TH |
1,676 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 330 µH | ±15% | 5.2 A | - | Unshielded | 67mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2319-VFIXED IND 390UH 5A 72 MOHM TH |
2,110 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 390 µH | ±15% | 5 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2320-VFIXED IND 470UH 3.8A 130 MOHM TH |
4,524 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 470 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2324-VFIXED IND 1MH 2.4A 300 MOHM TH |
3,290 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1 mH | ±15% | 2.4 A | - | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

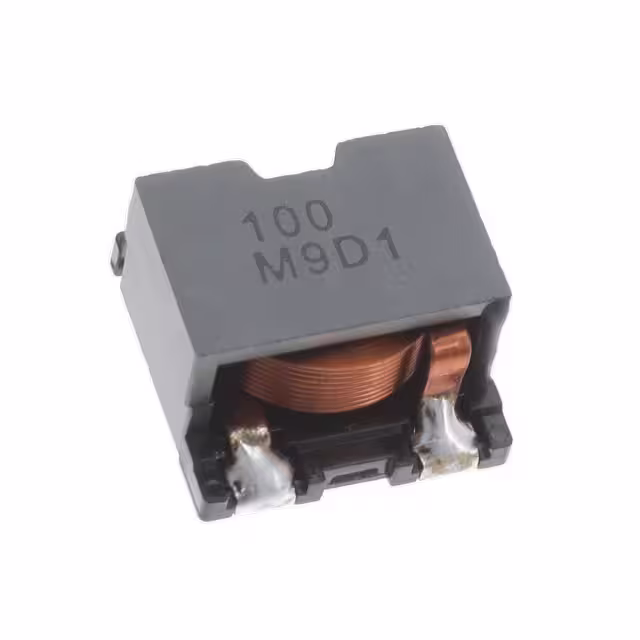

CDEP13D76T150NP-100MC-105FIXED IND 10UH 8.5A 10.3MOHM SMD |
4,065 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 8.5 A | 10.5A | Shielded | 10.3mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
FP1208R1-R18-RFIXED IND 180NH 50A 0.29MOHM SMD |
1,879 |
|
Datasheet |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 50 A | 72A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|
CDEP13D76T150NP-1R0MC-105FIXED IND 1UH 20A 1.98 MOHM SMD |
2,525 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Cut Tape (CT) | Active | - | - | 1 µH | ±20% | 20 A | 31A | Shielded | 1.98mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
