Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM4344.473NLTFIXED IND 47UH 8.7A 55 MOHM SMD |
4,115 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 8.7 A | 9.5A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.472NLTFIXED IND 4.7UH 25A 5.5 MOHM SMD |
1,560 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 25 A | 41A | Shielded | 5.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.682NLTFIXED IND 6.8UH 19A 9.2 MOHM SMD |
2,454 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 19 A | 32A | Shielded | 9.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.223NLTFIXED IND 22UH 12A 26.5 MOHM SMD |
2,590 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 12 A | 18A | Shielded | 26.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.153NLTFIXED IND 15UH 12.5A 20.5MOHM SM |
4,589 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 23A | Shielded | 20.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.562NLTFIXED IND 5.6UH 21A 7.05MOHM SMD |
2,175 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 21 A | 40A | Shielded | 7.05mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.332NLTFIXED IND 3.3UH 28A 3.9 MOHM SMD |
4,111 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 28 A | 45A | Shielded | 3.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.393NLTFIXED IND 39UH 9.2A 48 MOHM SMD |
1,027 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 39 µH | ±20% | 9.2 A | 11A | Shielded | 48mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
IHSM3825ER121LFIXED IND 120UH 450MA 2.18OHM SM |
3,806 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±15% | 450 mA | 400mA | Unshielded | 2.18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
IHSM3825RE101LFIXED IND 100UH 480MA 1.44OHM SM |
2,947 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 480 mA | 420mA | Unshielded | 1.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825RE470LFIXED IND 47UH 740MA 646MOHM SMD |
2,320 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 740 mA | 680mA | Unshielded | 646mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825RE680LFIXED IND 68UH 610MA 1.04OHM SMD |
1,760 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±15% | 610 mA | 580mA | Unshielded | 1.04Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM3825RE820LFIXED IND 82UH 560MA 1.24OHM SMD |
4,840 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±15% | 560 mA | 510mA | Unshielded | 1.24Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|

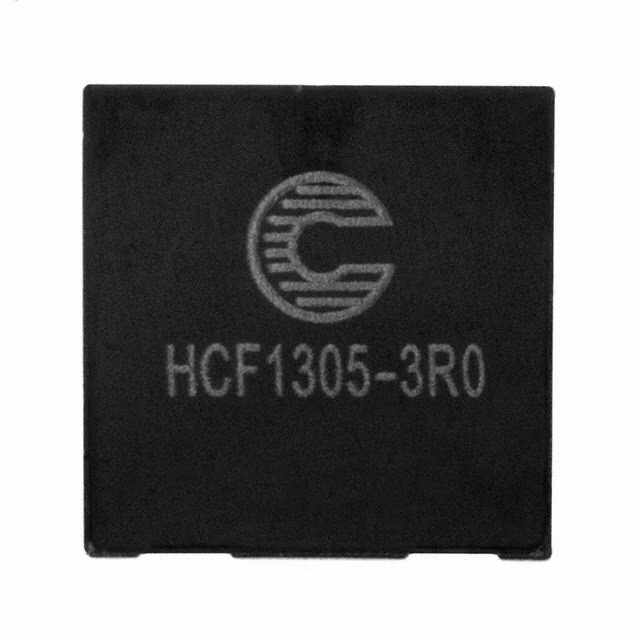

HCF1305-3R0-RFIXED IND 3UH 13.2A 4.9 MOHM SMD |
1,920 |
|
Datasheet |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±20% | 13.2 A | 14.4A | Unshielded | 4.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|

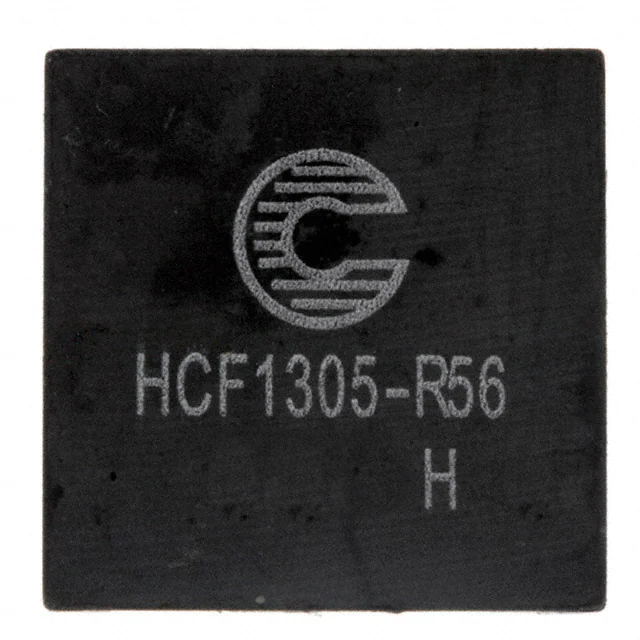

HCF1305-R56-RFIXED IND 560NH 32A 1 MOHM SMD |
2,079 |
|
Datasheet |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 32 A | 30A | Unshielded | 1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|

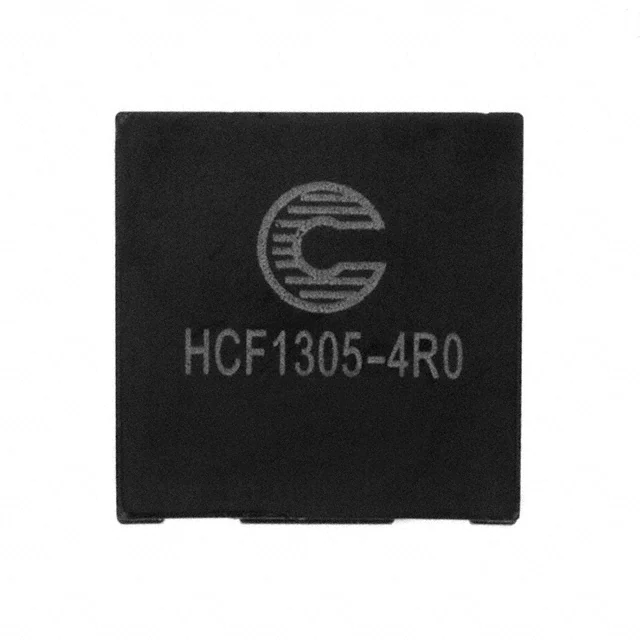

HCF1305-4R0-RFIXED IND 4UH 10.9A 7.2 MOHM SMD |
3,635 |
|
Datasheet |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4 µH | ±20% | 10.9 A | 12A | Unshielded | 7.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MLP1812-333KM27 UNSHIELDED T-LEVEL INDUCTOR |
2,941 |
|
Datasheet |
MLP1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±10% | 90 mA | 118mA | Unshielded | 15.24Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | 1812 | 0.178" L x 0.126" W (4.53mm x 3.20mm) | 0.138" (3.51mm) |
|
|
MLRF3013-104KMIL QUAL UNSHIELDED INDUCTOR |
2,801 |
|
Datasheet |
MLRF3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±10% | 28 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.93mm) | 0.145" (3.68mm) |
|
|
SMRF1812S-682JLFMOLDED SHIELDED INDUCTOR |
4,181 |
|
Datasheet |
SMRF1812S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±5% | 243 mA | 133mA | Shielded | 3.308Ohm Max | 50 @ 2.5MHz | 7.6MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812S-471JLFMOLDED SHIELDED INDUCTOR |
3,501 |
|
Datasheet |
SMRF1812S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±5% | 800 mA | 582mA | Shielded | 312mOhm Max | 40 @ 7.9MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
