Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1944-11MFIXED IND 680NH 1.5A 120 MOHM TH |
2,120 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±20% | 1.5 A | - | Unshielded | 120mOhm Max | 50 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - |
|
|
1944-12MFIXED IND 820NH 1.3A 160 MOHM TH |
4,168 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±20% | 1.3 A | - | Unshielded | 160mOhm Max | 45 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - |
|
|
1944-13MFIXED IND 1UH 1.1A 230 MOHM TH |
1,481 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±20% | 1.1 A | - | Unshielded | 230mOhm Max | 45 @ 20MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - |
|
|
1944-14MFIXED IND 1.2UH 1A 280 MOHM TH |
1,901 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±20% | 1 A | - | Unshielded | 280mOhm Max | 45 @ 20MHz | 176MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - |
|
|
1944-15KFIXED IND 1.5UH 850MA 380MOHM TH |
4,064 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±10% | 850 mA | - | Unshielded | 380mOhm Max | 45 @ 15MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - |
|
|
1944-16KFIXED IND 1.8UH 720MA 540MOHM TH |
1,617 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±10% | 720 mA | - | Unshielded | 540mOhm Max | 45 @ 15MHz | 144MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - |
|
|
1944-17KFIXED IND 2.2UH 610MA 750MOHM TH |
2,892 |
|
Datasheet |
1944 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±10% | 610 mA | - | Unshielded | 750mOhm Max | 45 @ 15MHz | 132MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - |
|
SPD62-184MFIXED IND 180UH 350MA 2.1OHM SMD |
4,609 |
|
Datasheet |
SPD62 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 350 mA | 350mA | Shielded | 2.1Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
19M393JLFMOLDED UNSHIELDED RF COILS AXL |
1,371 |
|
Datasheet |
19M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 390 µH | ±5% | 100 mA | - | Unshielded | 10Ohm Max | 65 @ 790kHz | 4.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
|
19M393JMOLDED UNSHIELDED RF COILS AXL |
4,030 |
|
Datasheet |
19M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 390 µH | ±5% | 100 mA | - | Unshielded | 10Ohm Max | 65 @ 790kHz | 4.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
1120-1R0MFIXED IND 1UH 11.4A 3 MOHM TH |
3,037 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 11.4 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-4R7MFIXED IND 4.7UH 11.4A 5 MOHM TH |
2,097 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 11.4 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-100KFIXED IND 10UH 11.4A 9 MOHM TH |
4,372 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 11.4 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-120KFIXED IND 12UH 11.4A 9 MOHM TH |
2,570 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 11.4 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-330KFIXED IND 33UH 5.5A 29 MOHM TH |
2,734 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 5.5 A | - | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

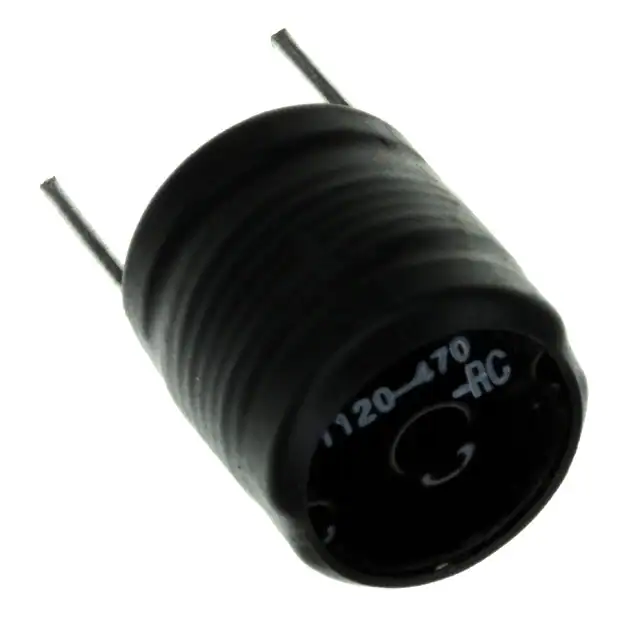

1120-470KFIXED IND 47UH 5.5A 35 MOHM TH |
4,959 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 5.5 A | - | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-680KFIXED IND 68UH 4.8A 53 MOHM TH |
3,597 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 4.8 A | - | Unshielded | 53mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-820KFIXED IND 82UH 4.8A 60 MOHM TH |
2,106 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 4.8 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-101KFIXED IND 100UH 4A 80 MOHM TH |
2,741 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | - | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

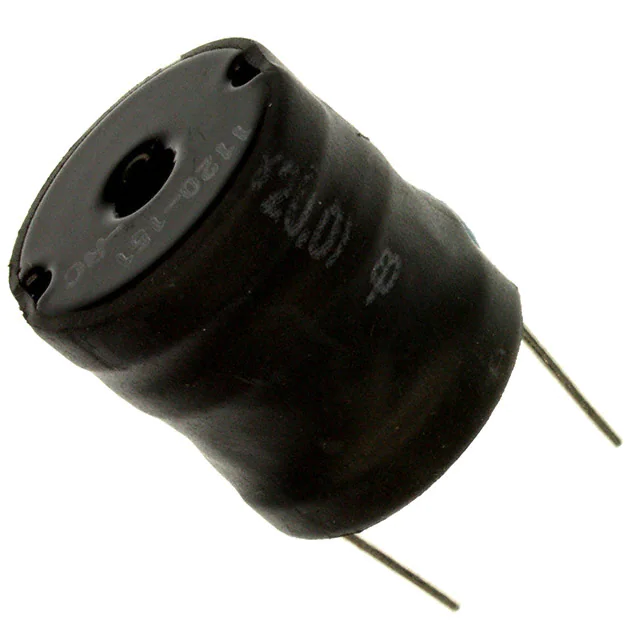

1120-151KFIXED IND 150UH 4A 98 MOHM TH |
2,389 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 4 A | - | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
