Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2256-29LFIXED IND 220UH 500MA 1.58OHM TH |
1,338 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±15% | 500 mA | 500mA | Unshielded | 1.58Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.215" Dia x 0.561" L (5.47mm x 14.24mm) | - |
|
|
2256-30LFIXED IND 270UH 470MA 1.77OHM TH |
4,974 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 270 µH | ±15% | 470 mA | 470mA | Unshielded | 1.77Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.215" Dia x 0.561" L (5.47mm x 14.24mm) | - |
|
|
2256-31LFIXED IND 330UH 390MA 2.51OHM TH |
3,856 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 330 µH | ±15% | 390 mA | 390mA | Unshielded | 2.51Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.215" Dia x 0.561" L (5.47mm x 14.24mm) | - |
|
|
2256-32LFIXED IND 390UH 380MA 2.73OHM TH |
3,359 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±15% | 380 mA | 380mA | Unshielded | 2.73Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.215" Dia x 0.561" L (5.47mm x 14.24mm) | - |
|
|
2256-33LFIXED IND 470UH 350MA 3.25OHM TH |
4,229 |
|
Datasheet |
2256 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±15% | 350 mA | 350mA | Unshielded | 3.25Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.215" Dia x 0.561" L (5.47mm x 14.24mm) | - |
|
|
19M363JLFMOLDED UNSHIELDED RF COILS AXL |
2,067 |
|
Datasheet |
19M | Axial | Tape & Reel (TR) | Active | Molded | - | 360 µH | ±5% | 102 mA | - | Unshielded | 9.6Ohm Max | 65 @ 790kHz | 4.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
|
19M363JMOLDED UNSHIELDED RF COILS AXL |
4,648 |
|
Datasheet |
19M | Axial | Tape & Reel (TR) | Active | Molded | - | 360 µH | ±5% | 102 mA | - | Unshielded | 9.6Ohm Max | 65 @ 790kHz | 4.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
RLF12545T-1R9N100-PFFIXED IND 1.9UH 10.5A 4.32 MOHM |
4,041 |
|
Datasheet |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.9 µH | ±30% | 10.5 A | 13A | Shielded | 4.32mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.185" (4.70mm) |
|
|
RLF12545T-100M5R1-PFFIXED IND 10UH 5.1A 14.88MOHM SM |
1,260 |
|
Datasheet |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.1 A | 6A | Shielded | 14.88mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.185" (4.70mm) |
|

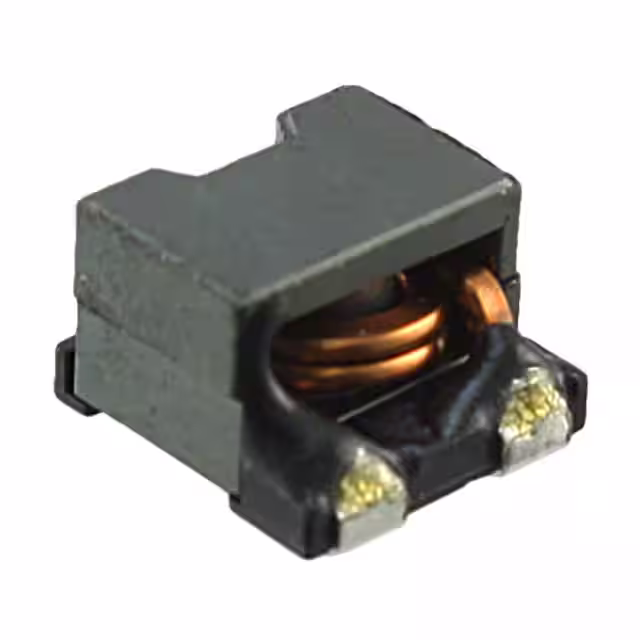

CDEP85NP-R20MC-50FIXED IND 200NH 18A 2.5 MOHM SMD |
1,177 |
|
Datasheet |
CDEP85 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±20% | 18 A | 32A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.217" (5.50mm) |
|

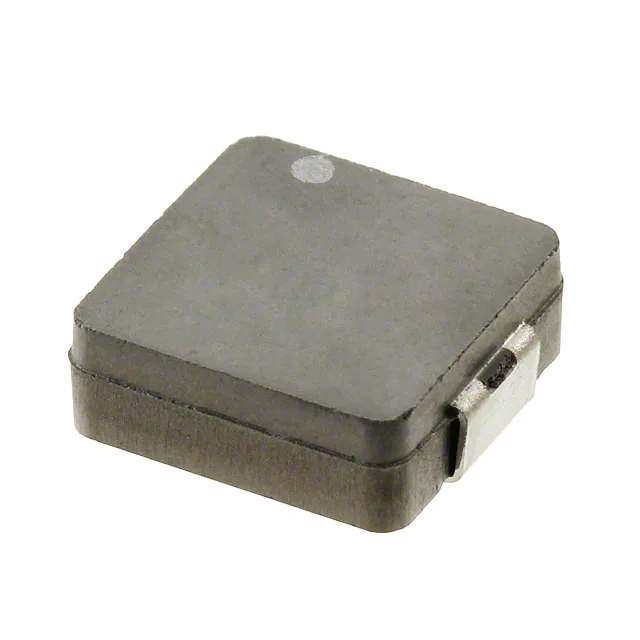

MPLC1040L4R7FIXED IND 4.7UH 8A 19 MOHM SMD |
1,107 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 8 A | 8A | Shielded | 19mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
AMDC001010J0100MQACLOSED MAGNETIC CIRCUIT TYPEMOLD |
1,003 |
|
Datasheet |
AMDC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 5.2 A | 10A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.374" W (10.20mm x 9.50mm) | 0.437" (11.10mm) |
|
|
AMDC001010J0220MQACLOSED MAGNETIC CIRCUIT TYPEMOLD |
4,695 |
|
Datasheet |
AMDC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 22 µH | ±20% | 3.2 A | 7.3A | Shielded | 56mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.374" W (10.20mm x 9.50mm) | 0.437" (11.10mm) |
|
|
AMDC001010J0150MQACLOSED MAGNETIC CIRCUIT TYPEMOLD |
3,467 |
|
Datasheet |
AMDC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 15 µH | ±20% | 4 A | 7.7A | Shielded | 40.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.374" W (10.20mm x 9.50mm) | 0.437" (11.10mm) |
|
|
IHSM4825RE100KFIXED IND 10UH 3.1A 71 MOHM SMD |
2,249 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 3.1 A | 1.4A | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
|
IHSM4825RE6R8KFIXED IND 6.8UH 3.5A 58 MOHM SMD |
3,846 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 3.5 A | 1.7A | Unshielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
SPD42R-122MFIXED IND 1.2UH 1.8A 19 MOHM SMD |
3,485 |
|
Datasheet |
SPD42R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 1.8 A | 1.8A | Shielded | 19mOhm Max | - | 120MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.115" (2.92mm) |
|
|
SPD42R-332MFIXED IND 3.3UH 1.1A 32 MOHM SMD |
4,886 |
|
Datasheet |
SPD42R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.1 A | 1.1A | Shielded | 32mOhm Max | - | 65MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.115" (2.92mm) |
|
|
SPD42R-123MFIXED IND 12UH 530MA 100MOHM SMD |
4,974 |
|
Datasheet |
SPD42R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 530 mA | 530mA | Shielded | 100mOhm Max | - | 34MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.115" (2.92mm) |
|
|
SPD42R-153MFIXED IND 15UH 460MA 115MOHM SMD |
1,213 |
|
Datasheet |
SPD42R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 460 mA | 460mA | Shielded | 115mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.115" (2.92mm) |
