Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2150R-38KFIXED IND 39UH 264MA 2 OHM TH |
3,086 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 39 µH | ±10% | 264 mA | - | Unshielded | 2Ohm Max | 70 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
10M272KLFMOLDED UNSHIELDED RF COILS AXIAL |
2,599 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 27 µH | ±10% | 135 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M222KLFMOLDED UNSHIELDED RF COILS AXIAL |
2,737 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 22 µH | ±10% | 140 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
MP2A-R47-RFIXED IND 470NH 3.52A 24MOHM SMD |
4,889 |
|
Datasheet |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 470 nH | ±20% | 3.52 A | 5.8A | Unshielded | 24mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|

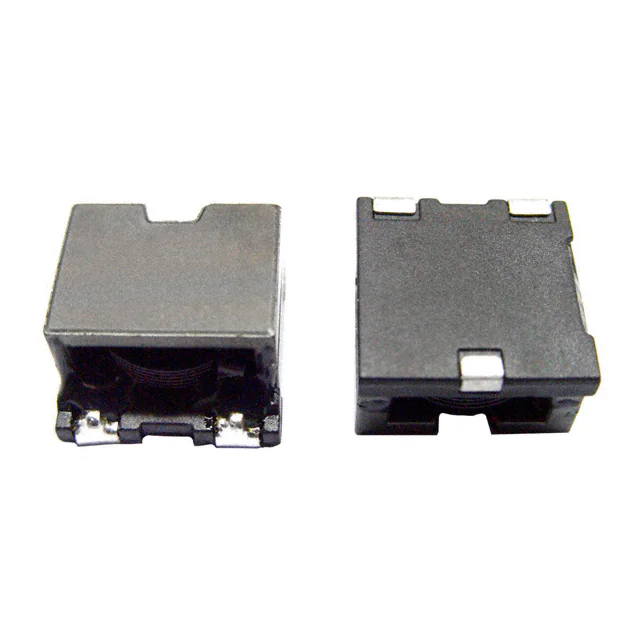

SCEP147H-1R2FIXED IND 1.2UH 19.5A 3.5MOHM SM |
3,234 |
|
Datasheet |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 19.5 A | 35.7A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147H-2R6FIXED IND 2.6UH 14A 5.5 MOHM SMD |
4,505 |
|
Datasheet |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.6 µH | ±20% | 14 A | 24.4A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147H-3R5FIXED IND 3.5UH 13.5A 7.5MOHM SM |
3,824 |
|
Datasheet |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.5 µH | ±20% | 13.5 A | 20.8A | Shielded | 7.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147H-4R7FIXED IND 4.7UH 11.5A 7.8MOHM SM |
4,606 |
|
Datasheet |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 11.5 A | 17.6A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147H-7R3FIXED IND 7.3UH 9A 13.3 MOHM SMD |
2,559 |
|
Datasheet |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.3 µH | ±20% | 9 A | 14.6A | Shielded | 13.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147H-R30FIXED IND 300NH 23A 2.1 MOHM SMD |
1,975 |
|
Datasheet |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | 300 nH | ±30% | 23 A | 70A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
SDS850R-222NFIXED IND 2.2UH 2.5A 40 MOHM SMD |
1,199 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.5 A | - | Shielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-392NFIXED IND 3.9UH 2.1A 55 MOHM SMD |
3,070 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 2.1 A | - | Shielded | 55mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-562NFIXED IND 5.6UH 1.95A 65MOHM SMD |
2,756 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1.95 A | - | Shielded | 65mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-822NFIXED IND 8.2UH 1.75A 80MOHM SMD |
3,570 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 1.75 A | - | Shielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-103MFIXED IND 10UH 1.5A 100 MOHM SMD |
4,581 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-123MFIXED IND 12UH 1.4A 120 MOHM SMD |
3,198 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.4 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
SDS850R-153MFIXED IND 15UH 1.3A 140 MOHM SMD |
1,245 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | - | Shielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-183MFIXED IND 18UH 1.2A 160 MOHM SMD |
3,631 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.2 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-223MFIXED IND 22UH 1.1A 180 MOHM SMD |
1,420 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.1 A | - | Shielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-273MFIXED IND 27UH 1A 200 MOHM SMD |
3,210 |
|
Datasheet |
SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1 A | - | Shielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
