Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8M123KMOLDED AXL UNSHIELDED RF COILS |
3,702 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±10% | 54.5 mA | - | Unshielded | 16Ohm Max | 35 @ 790kHz | 8.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M151KMOLDED AXL UNSHIELDED RF COILS |
3,273 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±10% | 310 mA | - | Unshielded | 490mOhm Max | 40 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M150KMOLDED AXL UNSHIELDED RF COILS |
4,259 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±10% | 760 mA | - | Unshielded | 180mOhm Max | 35 @ 25MHz | 560MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M153KMOLDED AXL UNSHIELDED RF COILS |
2,479 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±10% | 51 mA | - | Unshielded | 18Ohm Max | 35 @ 790kHz | 7.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M181KMOLDED AXL UNSHIELDED RF COILS |
2,615 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.8 µH | ±10% | 290 mA | - | Unshielded | 560mOhm Max | 40 @ 7.9MHz | 135MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M822KMOLDED AXL UNSHIELDED RF COILS |
4,639 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 82 µH | ±10% | 54.5 mA | - | Unshielded | 16Ohm Max | 45 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M682KMOLDED AXL UNSHIELDED RF COILS |
2,351 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 68 µH | ±10% | 64 mA | - | Unshielded | 11.5Ohm Max | 45 @ 2.5MHz | 10.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M152KMOLDED AXL UNSHIELDED RF COILS |
4,840 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 15 µH | ±10% | 118 mA | - | Unshielded | 3.4Ohm Max | 40 @ 2.5MHz | 26MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M181KLFMOLDED AXL UNSHIELDED RF COILS |
4,146 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.8 µH | ±10% | 290 mA | - | Unshielded | 560mOhm Max | 40 @ 7.9MHz | 135MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M152KLFMOLDED AXL UNSHIELDED RF COILS |
1,210 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 15 µH | ±10% | 118 mA | - | Unshielded | 3.4Ohm Max | 40 @ 2.5MHz | 26MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M821KLFMOLDED AXL UNSHIELDED RF COILS |
4,612 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±10% | 104 mA | - | Unshielded | 4.4Ohm Max | 45 @ 7.9MHz | 52MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
8M820KMOLDED AXL UNSHIELDED RF COILS |
2,429 |
|
Datasheet |
8M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 820 nH | ±10% | 465 mA | - | Unshielded | 220mOhm Max | 40 @ 25MHz | 200MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
5524FIXED IND 50UH 15A 13 MOHM TH |
1,313 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 µH | ±20% | 15 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.620" L (25.40mm x 41.15mm) | - |
|
|
5511FIXED IND 50UH 8A 28 MOHM TH |
2,277 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 µH | ±20% | 8 A | - | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.120" L (22.35mm x 28.45mm) | - |
|
|
5521FIXED IND 5UH 23A 4 MOHM TH |
2,445 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 23 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.720" Dia x 1.380" L (18.29mm x 35.05mm) | - |
|
|
10M122KLFMOLDED UNSHIELDED RF COILS AXIAL |
4,396 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 12 µH | ±10% | 155 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M122KMOLDED UNSHIELDED RF COILS AXIAL |
1,644 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 12 µH | ±10% | 155 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SCIHP1367-22MFIXED IND 22UH 5A 45 MOHM SMD |
2,033 |
|
Datasheet |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 5 A | 8A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
CLF12577NIT-2R2N-DFIXED IND 2.2UH 9.7A 8.19MOHM SM |
1,816 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 9.7 A | 16.5A | Shielded | 8.19mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|

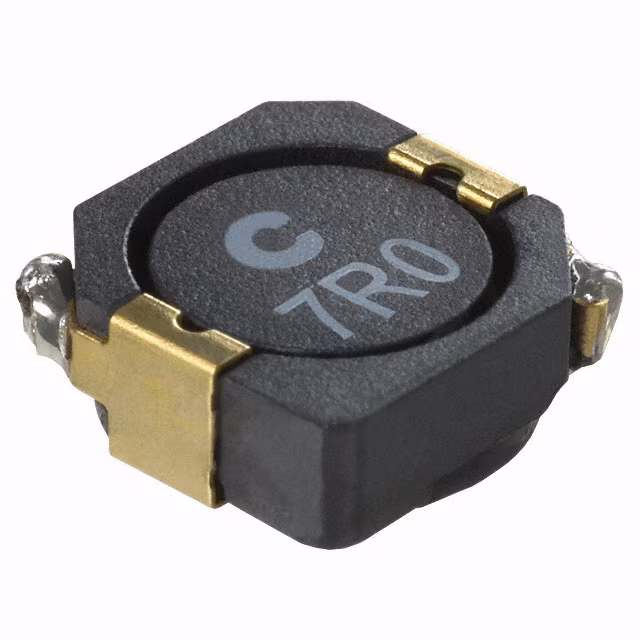

CD1-7R0-RFIXED IND 7UH 4.55A 27 MOHM SMD |
4,235 |
|
Datasheet |
CD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 4.55 A | 4.8A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.409" W (10.50mm x 10.40mm) | 0.157" (4.00mm) |
