Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

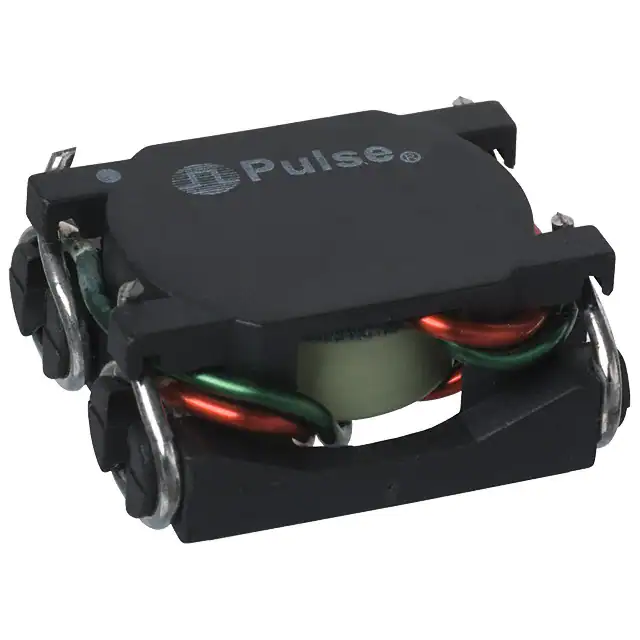

PE-53362NLFIXED IND 1.1UH 21A 2.5 MOHM SMD |
2,169 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 1.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.800" W (23.11mm x 20.32mm) | 0.390" (9.91mm) |
|
PE-53362NLTFIXED IND 1.1UH 21A 2.5 MOHM SMD |
4,045 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.800" W (23.11mm x 20.32mm) | 0.390" (9.91mm) |
|
P1330-102JFIXED IND 1UH 2.78A 35 MOHM SMD |
4,721 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 2.78 A | 1.526A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-103JFIXED IND 10UH 946MA 216MOHM SMD |
2,471 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 946 mA | 564mA | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-122JFIXED IND 1.2UH 2.69A 41MOHM SMD |
1,190 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±5% | 2.69 A | 1.4A | Unshielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-123JFIXED IND 12UH 912MA 252MOHM SMD |
1,539 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±5% | 912 mA | 516mA | Unshielded | 252mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-152JFIXED IND 1.5UH 2.03A 42MOHM SMD |
3,127 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±5% | 2.03 A | 1.291A | Unshielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-153JFIXED IND 15UH 858MA 288MOHM SMD |
2,016 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±5% | 858 mA | 432mA | Unshielded | 288mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-182JFIXED IND 1.8UH 1.95A 48MOHM SMD |
3,699 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±5% | 1.95 A | 1.18A | Unshielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-183JFIXED IND 18UH 817MA 328MOHM SMD |
3,448 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±5% | 817 mA | 420mA | Unshielded | 328mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-222JFIXED IND 2.2UH 1.69A 75MOHM SMD |
1,145 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±5% | 1.69 A | 1.104A | Unshielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-223JFIXED IND 22UH 694MA 384MOHM SMD |
2,382 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±5% | 694 mA | 348mA | Unshielded | 384mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-272JFIXED IND 2.7UH 1.55A 80MOHM SMD |
3,474 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±5% | 1.55 A | 936mA | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-273JFIXED IND 27UH 657MA 425MOHM SMD |
1,223 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±5% | 657 mA | 324mA | Unshielded | 425mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-332JFIXED IND 3.3UH 1.46A 108MOHM SM |
2,695 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±5% | 1.46 A | 840mA | Unshielded | 108mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-333JFIXED IND 33UH 568MA 538MOHM SMD |
4,805 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±5% | 568 mA | 270mA | Unshielded | 538mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-392JFIXED IND 3.9UH 1.39A 118MOHM SM |
2,943 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±5% | 1.39 A | 732mA | Unshielded | 118mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-393JFIXED IND 39UH 488MA 600MOHM SMD |
3,298 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±5% | 488 mA | 270mA | Unshielded | 600mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-472JFIXED IND 4.7UH 1.33A 125MOHM SM |
2,661 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±5% | 1.33 A | 720mA | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
P1330-473JFIXED IND 47UH 467MA 792MOHM SMD |
2,413 |
|
Datasheet |
P1330 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±5% | 467 mA | 246mA | Unshielded | 792mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
