Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

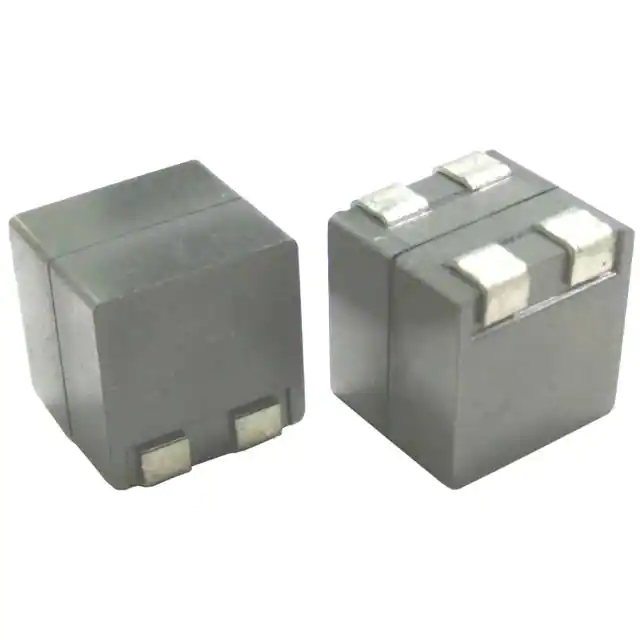

AMDU00101010100MA1INDUCTOR POWER |
1,864 |
|
Datasheet |
AMDU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 4.8 A | 7.5A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.374" W (10.20mm x 9.50mm) | 0.447" (11.35mm) |
|
MLP1812-153KM27 UNSHIELDED T-LEVEL INDUCTOR |
3,099 |
|
Datasheet |
MLP1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±10% | 140 mA | 183mA | Unshielded | 6.432Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | 1812 | 0.178" L x 0.126" W (4.53mm x 3.20mm) | 0.138" (3.51mm) |
|
|
MLP1812-123KM27 UNSHIELDED T-LEVEL INDUCTOR |
4,903 |
|
Datasheet |
MLP1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±10% | 160 mA | 208mA | Unshielded | 6Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | 1812 | 0.178" L x 0.126" W (4.53mm x 3.20mm) | 0.138" (3.51mm) |
|
|
MLRF3013-392KMIL QUAL UNSHIELDED INDUCTOR |
2,218 |
|
Datasheet |
MLRF3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±10% | 125 mA | - | Unshielded | 3.6Ohm Max | 35 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.93mm) | 0.145" (3.68mm) |
|
|
MLRF3013-332KMIL QUAL UNSHIELDED INDUCTOR |
3,380 |
|
Datasheet |
MLRF3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±10% | 130 mA | - | Unshielded | 3.4Ohm Max | 35 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.93mm) | 0.145" (3.68mm) |
|
RLF7030T-1R0N6R4FIXED IND 1UH 6.4A 8.76 MOHM SMD |
1,249 |
|
Datasheet |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.4 A | 7.9A | Shielded | 8.76mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-1R5N6R1FIXED IND 1.5UH 6.1A 9.6MOHM SMD |
3,105 |
|
Datasheet |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.1 A | 6.5A | Shielded | 9.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-2R2M5R4FIXED IND 2.2UH 5.4A 12 MOHM SMD |
2,778 |
|
Datasheet |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.4 A | 5.5A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-3R3M4R1FIXED IND 3.3UH 4.1A 20.88 MOHM |
3,577 |
|
Datasheet |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.1 A | 4.4A | Shielded | 20.88mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
|
RLF7030T-4R7M3R4FIXED IND 4.7UH 3.4A 31.2MOHM SM |
4,550 |
|
Datasheet |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.4 A | 3.5A | Shielded | 31.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|
CDRH127NP-7R6NCFIXED IND 7.6UH 5.9A 20 MOHM SMD |
3,018 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.6 µH | -20%, +40% | 5.9 A | - | Shielded | 20mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
MPL-AL6050-1R5FIXED IND 1.5UH 13.3A 6 MOHM SMD |
4,443 |
|
- |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | - | 13.3 A | 18A | Unshielded | 6mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
42103C-RFIXED IND 10.2UH 15.4A 6MOHM SMD |
4,161 |
|
Datasheet |
4200 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 10.2 µH | ±15% | 15.4 A | - | Unshielded | 6mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.90mm) |
|
|
42183C-RFIXED IND 17.6UH 10.9A 11.6 MOHM |
2,476 |
|
Datasheet |
4200 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 17.6 µH | ±15% | 10.9 A | - | Unshielded | 11.6mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.940" L x 0.940" W (23.87mm x 23.87mm) | 0.390" (9.90mm) |
|
|
FP1012V2-R470-RIND FLAT PAC 470NH 22A SMT 2 |
2,897 |
|
Datasheet |
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±15% | 84 A | 22A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
CDPQ2010NP-5R6M-160INDUCTOR |
2,059 |
|
Datasheet |
CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 5.6 µH | ±20% | 17 A | 24A | Shielded | 2.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
|
CDPQ2010NP-7R5M-160INDUCTOR |
4,606 |
|
Datasheet |
CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 7.5 µH | ±20% | 14 A | 21.3A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
|
CDPQ2010NP-100M-160INDUCTOR |
3,850 |
|
Datasheet |
CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 10 µH | ±20% | 14.6 A | 18.3A | Shielded | 5.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
|
CDPQ2010NP-3R9M-160INDUCTOR |
4,434 |
|
Datasheet |
CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 3.9 µH | ±20% | 20 A | 29.4A | Shielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
|
CDPQ2010NP-2R7M-160INDUCTOR |
1,619 |
|
Datasheet |
CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 2.7 µH | ±20% | 21 A | 36.5A | Shielded | 1.65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
