Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

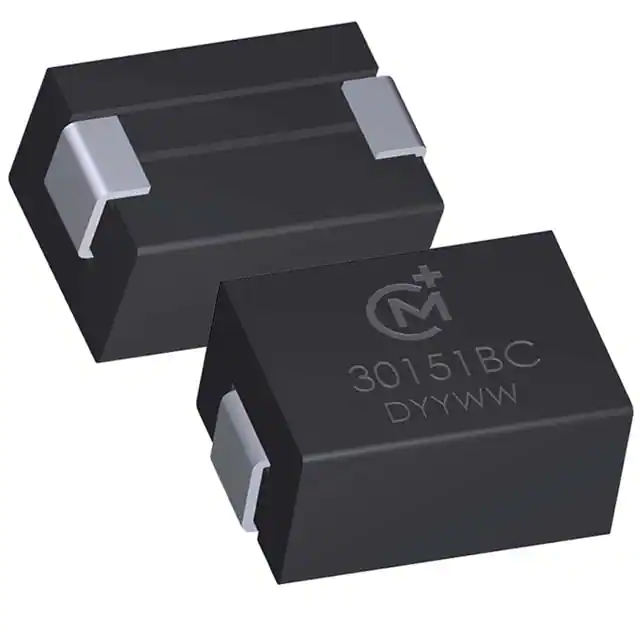

30221BCFIXED IND 200NH 29A 0.42MOHM SMD |
2,047 |
|
Datasheet |
3000B | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 200 nH | ±20% | 29 A | 29A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 130°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.96mm) |
|
|
30850BCFIXED IND 85NH 37A 0.42 MOHM SMD |
1,833 |
|
Datasheet |
3000B | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 85 nH | ±20% | 37 A | 71A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 130°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.96mm) |
|
78477022FIXED IND 2.2UH 7A 14.5 MOHM SMD |
2,027 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 7 A | 15A | Shielded | 14.5mOhm Max | - | 85.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
78477033FIXED IND 3.3UH 6.6A 17 MOHM SMD |
3,633 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 6.6 A | 12A | Shielded | 17mOhm Max | - | 72.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
78477068FIXED IND 6.8UH 5.2A 25 MOHM SMD |
3,086 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 5.2 A | 8.5A | Shielded | 25mOhm Max | - | 42.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770100FIXED IND 10UH 5A 31 MOHM SMD |
3,533 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 5 A | 6.8A | Shielded | 31mOhm Max | - | 28.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770102FIXED IND 1MH 720MA 1.2 OHM SMD |
3,405 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1 mH | ±20% | 720 mA | 800mA | Shielded | 1.2Ohm Max | - | 1.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770221FIXED IND 220UH 1.2A 300MOHM SMD |
1,427 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 220 µH | ±20% | 1.2 A | 1.4A | Shielded | 300mOhm Max | - | 3.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770680FIXED IND 68UH 2.6A 98.5MOHM SMD |
3,920 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 68 µH | ±20% | 2.6 A | 2.8A | Shielded | 98.5mOhm Max | - | 6.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
CPLE-2-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD |
2,321 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.189" (4.80mm) |
|
|
HTTI-560-1.9TOROIDAL IND HI TEMP 560UH 1.9AD |
2,845 |
|
Datasheet |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 560 µH | ±15% | 1.9 A | - | Shielded | 320mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
S1210-101KFIXED IND 100NH 1.131A 150 MOHM |
2,262 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±10% | 1.131 A | - | Shielded | 150mOhm Max | 40 @ 25MHz | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-121KFIXED IND 120NH 1.062A 170 MOHM |
1,777 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±10% | 1.062 A | - | Shielded | 170mOhm Max | 40 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-151KFIXED IND 150NH 979MA 200MOHM SM |
1,097 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±10% | 979 mA | - | Shielded | 200mOhm Max | 40 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-181KFIXED IND 180NH 934MA 220MOHM SM |
3,154 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±10% | 934 mA | - | Shielded | 220mOhm Max | 40 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-221KFIXED IND 220NH 876MA 250MOHM SM |
3,479 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 876 mA | - | Shielded | 250mOhm Max | 40 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-271KFIXED IND 270NH 800MA 300MOHM SM |
2,934 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 270 nH | ±10% | 800 mA | - | Shielded | 300mOhm Max | 40 @ 25MHz | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-331KFIXED IND 330NH 740MA 350MOHM SM |
3,233 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±10% | 740 mA | - | Shielded | 350mOhm Max | 40 @ 25MHz | 255MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-391KFIXED IND 390NH 692MA 400MOHM SM |
2,366 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 390 nH | ±10% | 692 mA | - | Shielded | 400mOhm Max | 40 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210-471KFIXED IND 470NH 653MA 450MOHM SM |
1,130 |
|
Datasheet |
S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±10% | 653 mA | - | Shielded | 450mOhm Max | 40 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
