Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM105S-471MFIXED IND 470UH 370MA 1.6OHM SMD |
3,987 |
|
Datasheet |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 370 mA | - | Shielded | 1.6Ohm Max | - | 4MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
ASPI-104S-151M-TFIXED IND 150UH 850MA 506MOHM SM |
2,951 |
|
Datasheet |
ASPI-104S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 850 mA | 1.15A | Shielded | 506mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.157" (4.00mm) |
|
MPI4040R3-150-RFIXED IND 15UH 1.3A 285 MOHM SMD |
1,791 |
|
Datasheet |
MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 1.3 A | 3A | Shielded | 285mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
|
MPI4040R3-4R7-RFIXED IND 4.7UH 2.3A 92 MOHM SMD |
3,105 |
|
Datasheet |
MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 2.3 A | 4.8A | Shielded | 92mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|

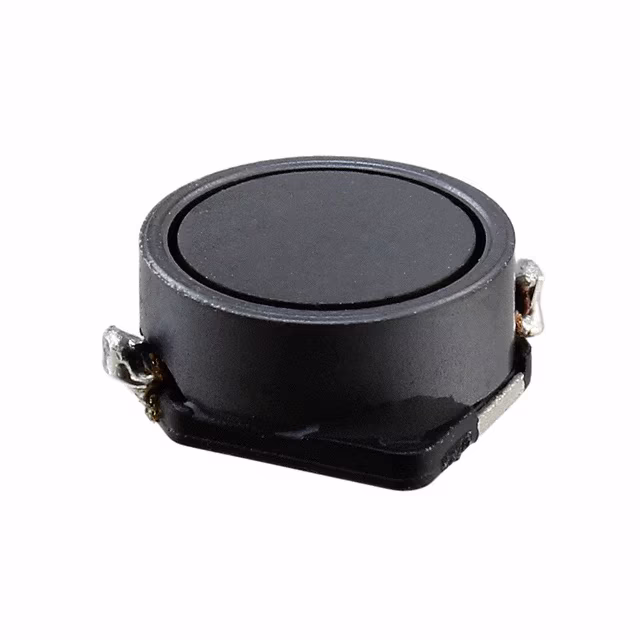

CDRR105NP-220MCFIXED IND 22UH 2.35A 77.5MOHM SM |
1,153 |
|
Datasheet |
CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.35 A | 1.66A | Shielded | 77.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
CDRR105NP-221MCFIXED IND 220UH 760MA 573MOHM SM |
3,450 |
|
Datasheet |
CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 760 mA | 510mA | Shielded | 573mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
CDRR105NP-331MCFIXED IND 330UH 610MA 848MOHM SM |
4,789 |
|
Datasheet |
CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 610 mA | 440mA | Shielded | 848mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
CDRR105NP-680MCFIXED IND 68UH 1.38A 195MOHM SMD |
4,598 |
|
Datasheet |
CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.38 A | 980mA | Shielded | 195mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
1782-55JFIXED IND 30UH 130MA 3.4 OHM TH |
3,625 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 30 µH | ±5% | 130 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-57JFIXED IND 36UH 125MA 3.6 OHM TH |
3,330 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 36 µH | ±5% | 125 mA | - | Unshielded | 3.6Ohm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-59JFIXED IND 43UH 110MA 4.5 OHM TH |
4,775 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 43 µH | ±5% | 110 mA | - | Unshielded | 4.5Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-61JFIXED IND 51UH 100MA 5.7 OHM TH |
4,885 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 51 µH | ±5% | 100 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-63JFIXED IND 62UH 92MA 6.7 OHM TH |
1,100 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 62 µH | ±5% | 92 mA | - | Unshielded | 6.7Ohm Max | 45 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-65JFIXED IND 75UH 88MA 7.3 OHM TH |
1,847 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 75 µH | ±5% | 88 mA | - | Unshielded | 7.3Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-67JFIXED IND 91UH 84MA 8 OHM TH |
4,935 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 91 µH | ±5% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-69JFIXED IND 110UH 66MA 13 OHM TH |
2,134 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 110 µH | ±5% | 66 mA | - | Unshielded | 13Ohm Max | 30 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-71JFIXED IND 130UH 61MA 15 OHM TH |
2,864 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 130 µH | ±5% | 61 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-73JFIXED IND 160UH 57MA 17 OHM TH |
2,919 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 160 µH | ±5% | 57 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-75JFIXED IND 200UH 52MA 21 OHM TH |
1,003 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 200 µH | ±5% | 52 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782-77JFIXED IND 240UH 47MA 25 OHM TH |
3,259 |
|
Datasheet |
1782 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 240 µH | ±5% | 47 mA | - | Unshielded | 25Ohm Max | 30 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
